Sony HCD-C770 - Rubber Roller (Slider) Assy; Timing Belt (Front;Rear)

17
HCD-C770/C990

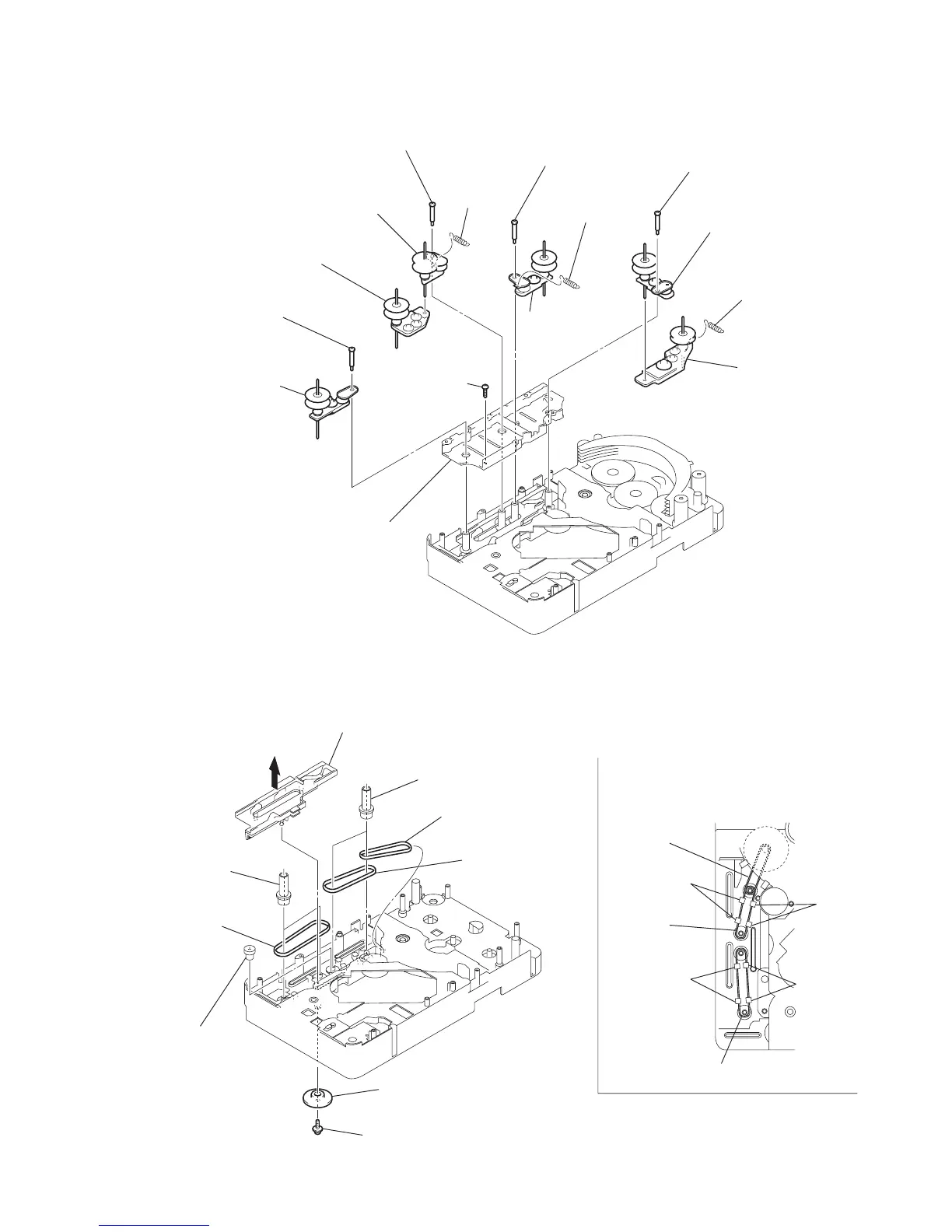

3-16. RUBBER ROLLER (SLIDER) ASSY
3-17. TIMING BELT (FRONT/REAR)
qg sub chassis
qf screw
(BVTP2.6 × 8)
8 step screw
qs step screw
5 step screw
9 tension
spring
(slider 2)
6 tension spring
(base slider 5)
3 tension spring
(base slider 5
)
1 step screw
0 rubber roller
(slider 4) assy
7 rubber roller
(slider 1) assy
4 rubber roller
(slider 5) assy
2 rubber roller
(slider S) assy
qa rubber roller
(slider 2) assy
qd rubber roller
(slider 1) assy
3 slider (mode cam) assy
5 two gears
(center)
7 two gears (center)
8 timing belt (rear)
timing belt
(rear)
When install three timing belts,
its pass under each claws.
9 timing belt (rear)
4 gear
(timing)
2 gear (mode cam)
: Note
6 timing belt
(front)
1 screw
(PTPWH2.6
× 8)
timing belt
(rear)
timing belt (front)
claw
claw
claw
claw
Note: Refer to assembly (Section 4)
