Sony HCD-C770 - Printed Wiring Board - VIDEO Section

HCD-C770/C990
6060

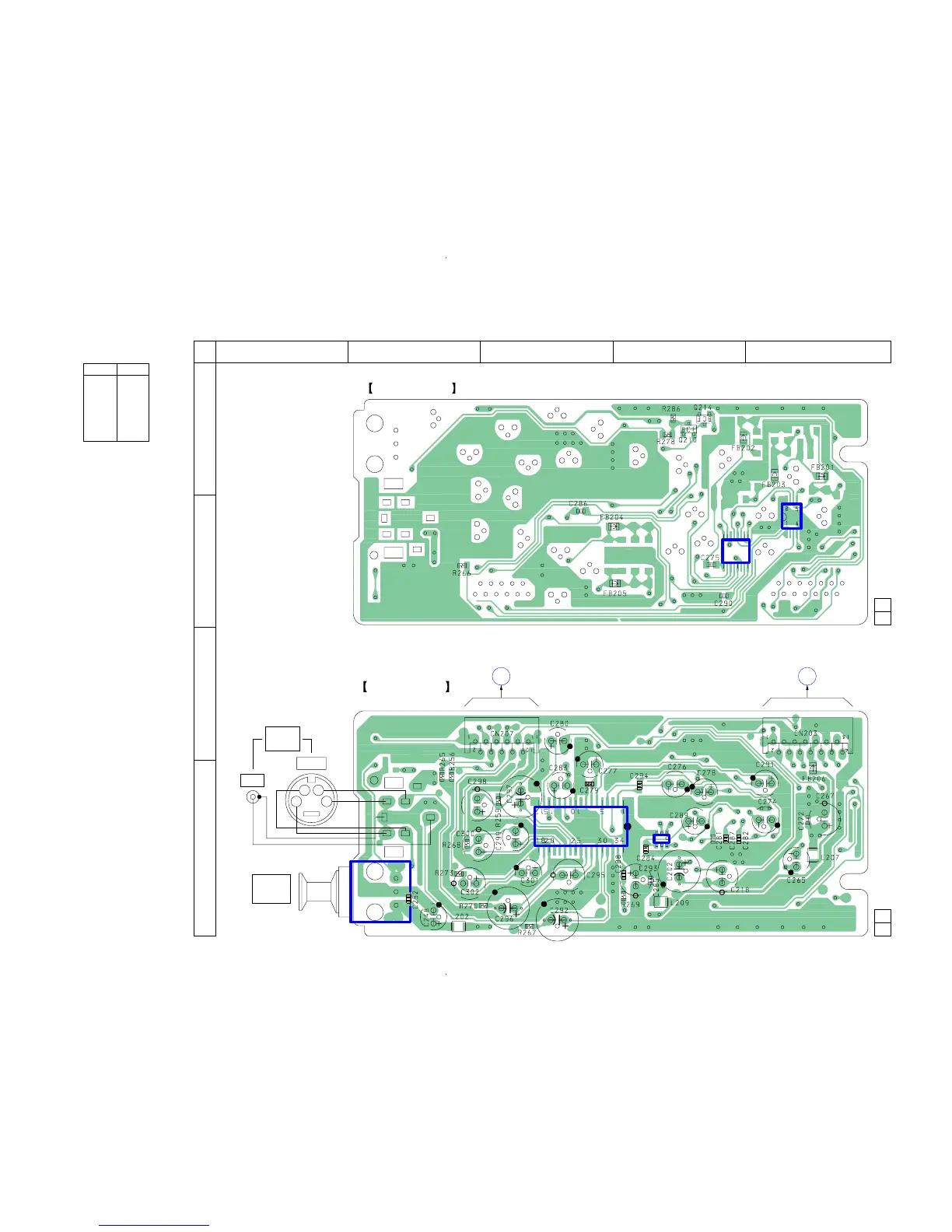

7-29. PRINTED WIRING BOARD – VIDEO Section – • See page 37 for Circuit Boards Location.
IC209
16 9
18
IC207
IC204
IC208
IC206
K
AUDIO BOARD
CN208
F
DVD BOARD
CN003
4 3
2 1
S VIDEO
VIDEO
MONITOR
OUT
J202
OPTICAL
DIGITAL IN
VIDEO 2
IC204
31
6
4
VIDEO BOARD
(COMPONENT SIDE)
(CONDUCTOR SIDE)
VIDEO BOARD
1-685-072-
11
(11)
1-685-072-
11
(11)
A
B
C
D
1 2 3 4 5
• Semiconductor
Location
Ref. No. Location
IC204 D-2
IC206 D-4
IC207 B-5
IC208 D-3
IC209 B-4
Q210 A-4
Q214 A-4
(Page 42)
(Page 58)
