Sony HCD-C770 - How to Install the Rotary Encoder (S702), Gear (Stocker Communication); How to Install the Cam (Stocker U;D)

21
HCD-C770/C990

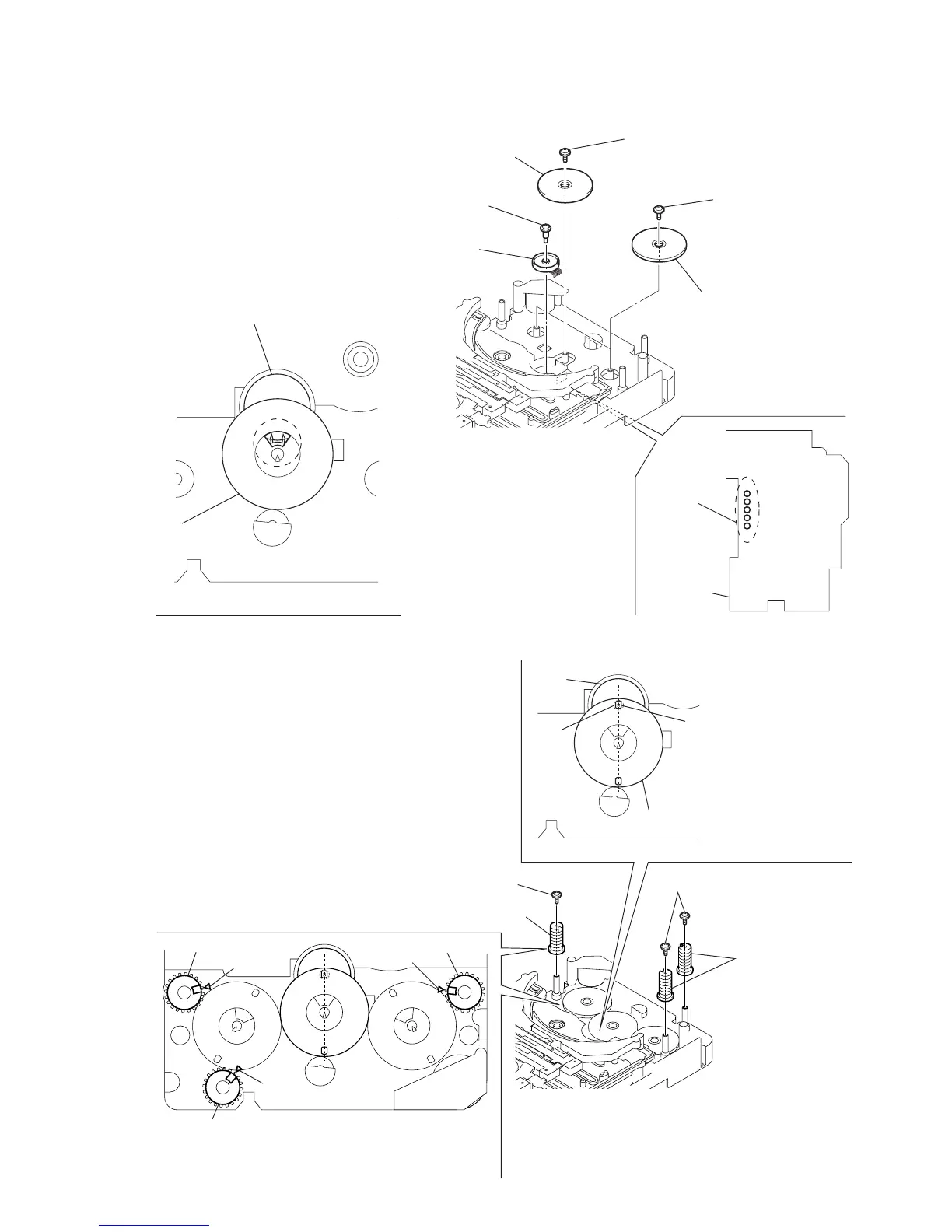

4-5. HOW TO INSTALL THE ROTARY ENCODER (S702), GEAR (STOCKER COMMUNICATION)
4-6. HOW TO INSTALL THE CAM (STOCKER U/D)
2 five solders
6 two gears
(stocker communication)
4 gear
(stocker communication)
relay board
7 two screws
(PTPWH2.6
× 8)
5 screw
(PTPWH2.6
× 8)
3 screw
(PWH2
× 6)
rotary encoder
(S702)
gear
(stocker
communication)
– rear –
1 rotary encoder
(S702)
Engage the rotary encoder (S702)
and the gear (stocker communication)
as shown below in the figure.
2 two cams
(stocker U/D)
2 cam (stocker U/D)
3 two screws
(PTPWH2.6 × 8)
3 screw
(PTPWH2.6 × 8)
rotary encoder
(S702)
hole
gear
(stocker communication)
– rear –
screw
1 Position the hole on the gear
(stocker communication) on the
screw of the rotary encoder (S702).
To install three cams (stocker U/D), align each groove
of the cam (stocker U/D) with each f mark on the
chassis as shown in the figure.
f mark
f mark
f mark
cam (stocker U/D)
cam (stocker U/D)
cam (stocker U/D)
Ver 1.5
