Sony HCD-C770 - DVD Board; Optical Pick-Up (DVBU16)

13
HCD-C770/C990
3 boss
4 boss
5 boss
6 optical pick-up
(DVBU16)
1 screw
(PTPWHM2.6
)
2

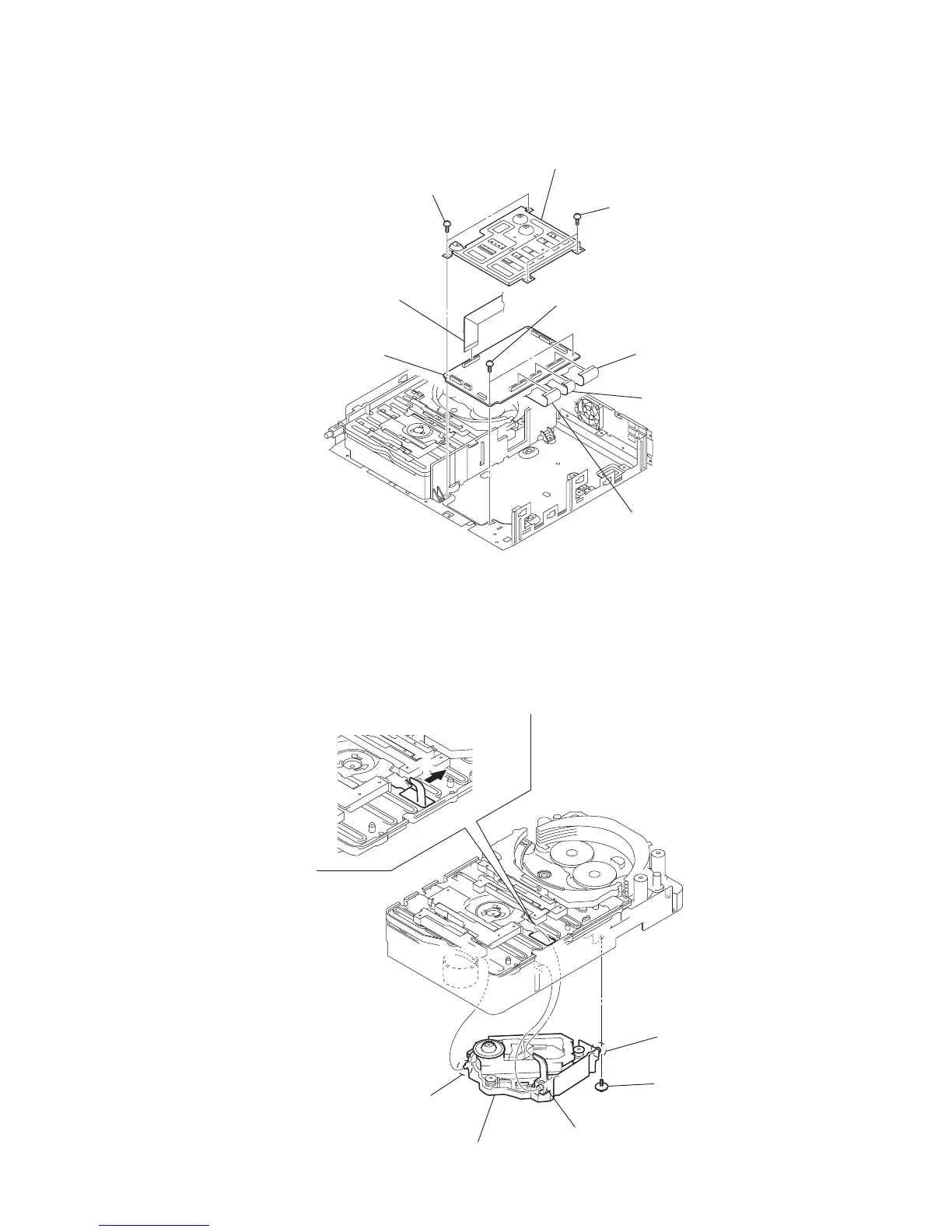

3-8. DVD BOARD
3-9. OPTICAL PICK-UP (DVBU16)
7 wire (flat type)
(CN401)
6 wire (flat type
)
(CN003)
5 wire (flat type)
(CN002)
4 wire (flat type)
(CN006)
9 DVD board
8 two screws
(BVTP3
× 8)
2 two screws
(BVTP3
× 8)
1 two screws
(BVTP3
× 8)
3
