Sony HCD-CL3 - Panel Board; Back Panel, Main Board

9
HCD-CL1/CL3

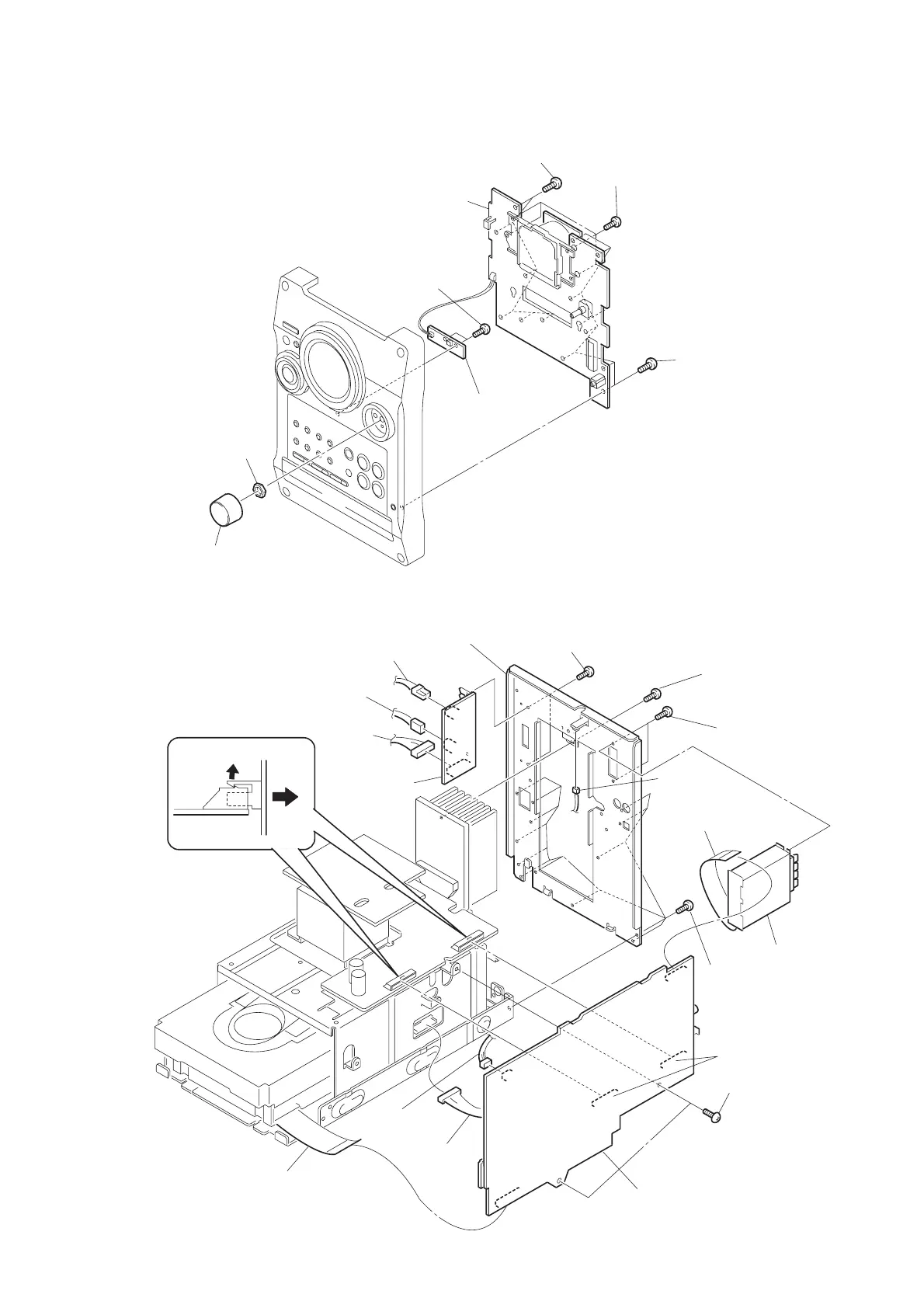

3-5. BACK PANEL, MAIN BOARD
1 Flat cable (15 core)
(CN502)
5 Back panel
8 Connector
(CN943)
2 Connector
(CN803)
7 Tuner
3 Screw
( +BVTP 3 × 8 )
qd Two screws
( +BVTP 3 × 8 )
6 Two screws
( +BVTP 3 × 8 )
qa Two screws
( +BVTP 3 × 8 )
4 Thirteen screws
( +BVTP 3 × 8 )
qh Two connector
(CN101, CN251)
qf Connector
(CN701)
qj Connector
(CN201)
qg Connector
(CN501)
qk Main board
0 Connector
(CN941)
qs Vol sel board
9 Connector
(CN942)
Main board
3-4. PANEL BOARD
3 Four screws
(
+BVTP 2.6 × 8 )
4 Six screws
(
+BVTP 2.6 × 8 )
5 Panel board
4 Eight screws
(
+BVTP 2.6 × 8 )
7 Ring SW board
1 Knob (vol)
2 Nut
6 Two screws
(+BVTP 2.6
× 8)
