Sony HCD-CL3 - Printed Wiring Board AMP Section

3535
HCD-CL1/CL3

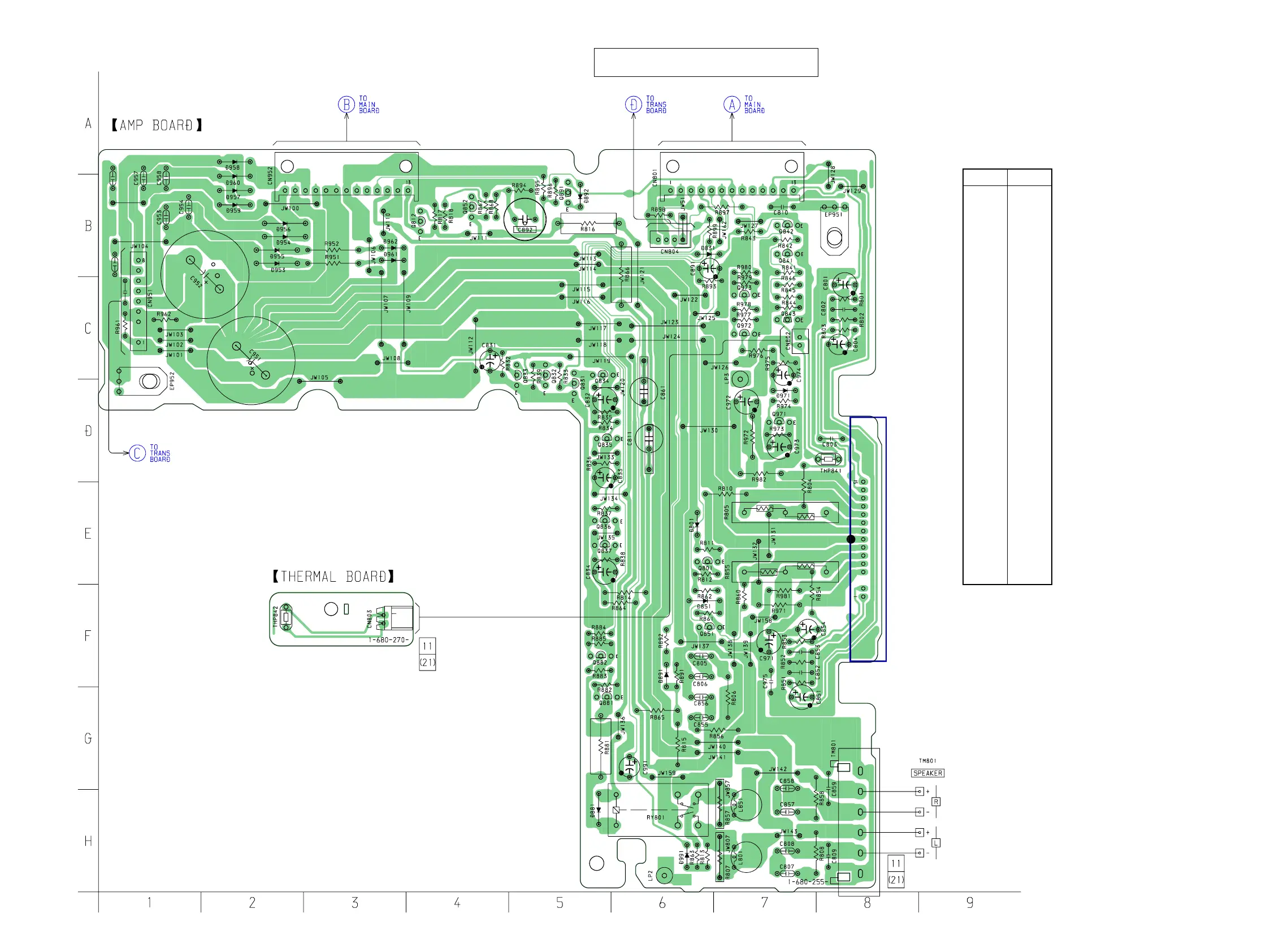

7-13. PRINTED WIRING BOARD AMP SECTION
IC801
(Page 25) (Page 39)
(Page 39)
(Page 25)
Ref. No. Location
D801 E-6
D831 B-7
D851 F-6
D881 H-5
D891 F-6
D953 B-2
D954 B-2
D955 B-2
D956 B-2
D957 B-2
D958 A-2
D959 B-2
D960 B-2
D961 B-3
D962 B-3
D971 D-7
D991 H-6
IC801 F-8
Q801 E-6
Q831 D-5
Q832 C-5
Q833 C-5
Q834 C-5
Q835 D-5
Q836 E-5
Q837 E-5
Q841 B-7
Q842 B-7
Q851 F-6
Q881 G-5
Q882 F-5
Q971 D-7
Q972 C-7
Q973 C-7
• Semiconductor
Location
• See page 21 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
