Sony HCD-CL3 - Chassis Section

49
HCD-CL1/CL3

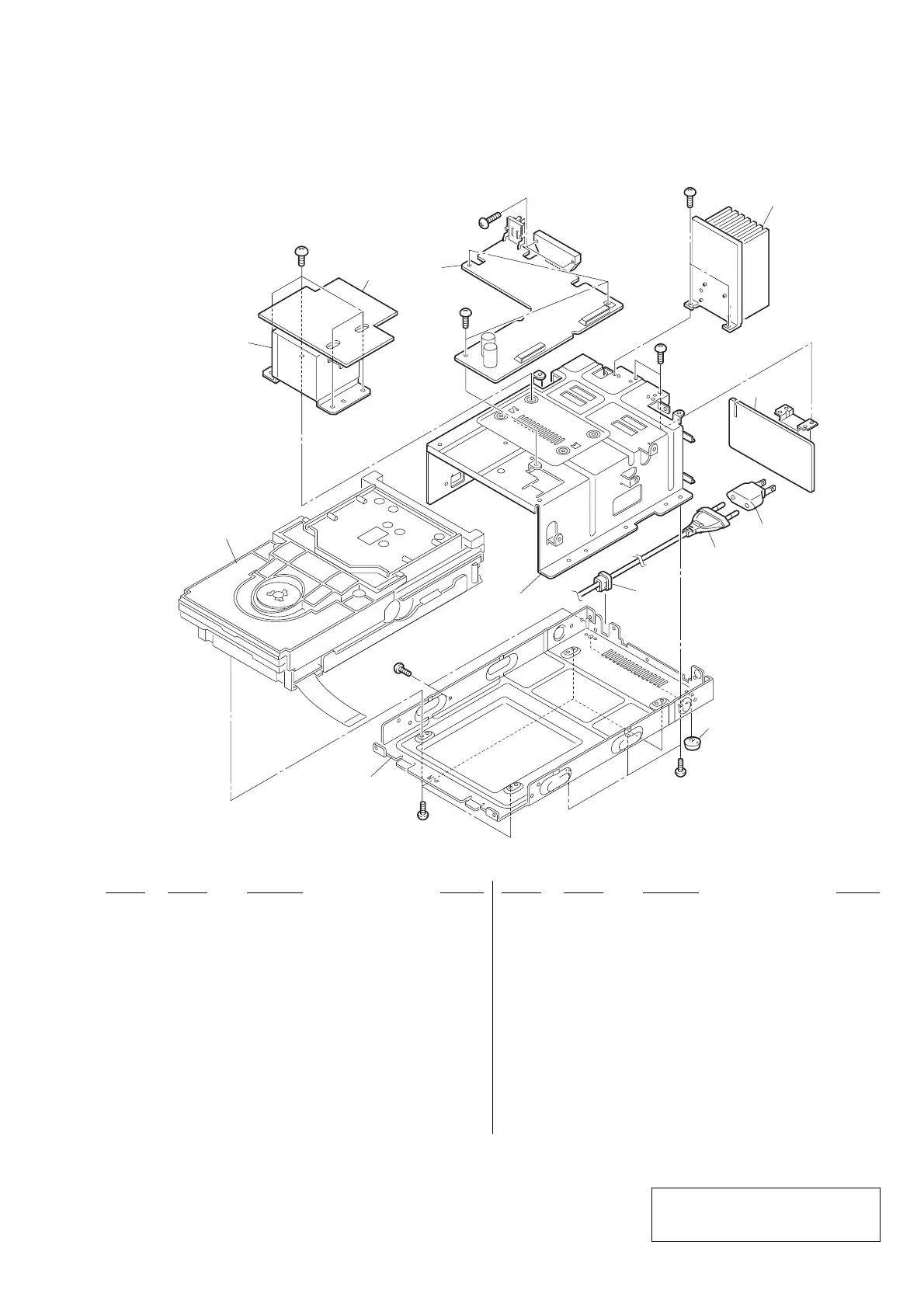

8-3. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
#1
#1
#4
#3
#1
#1
#1
#1
not
supplied
not
supplied
CD MECHANISM
103
102
101
109
110
104
not
supplied
T901
112
101 1-680-257-11 SUB POWER BOARD
102 1-680-256-11 TRANS BOARD
103 A-4475-414-A AMP BOARD, COMPLETE (CL1:US)
103 A-4475-422-A AMP BOARD, COMPLETE (CL1:AEP,UK)
103 A-4475-438-A AMP BOARD, COMPLETE (CL1:AUS,TW,KR)
103 A-4475-447-A AMP BOARD, COMPLETE (CL3:AEP,UK)
103 A-4475-459-A AMP BOARD, COMPLETE (CL3:KR)
103 A-4476-988-A AMP BOARD, COMPLETE (CL1:E,MX)
103 A-4726-254-A AMP BOARD, COMPLETE (CL3:MX)
104 4-965-822-01 FOOT
0109 1-769-079-21 CORD, POWER (CL1:KR/CL3:KR)
0109 1-575-651-11 CORD, POWER (CL1:AEP,E,TW/CL3:AEP)
0109 1-783-203-11 CORD, POWER (CL1:AUS)
0109 1-783-532-11 CORD, POWER (CL1:US)
0109 1-790-226-11 CORD, POWER (CL1:UK/CL3:UK)
0109 1-791-901-11 CORD, POWER (CL1:MX/CL3:MX)
110 3-703-571-11 BUSHING (S) (4516), CORD (CL1:MX/CL3:MX)
* 110 3-703-244-00 BUSHING (2104), CORD
(CL1:US,AEP,UK,AUS,E,TW,KR/CL3:AEP,UK,KR)
0112 1-569-008-21 ADAPTOR, CONVERSION (CL1:E,TW)
0T901 1-435-808-11 TRANSFORMER, POWER (CL3:AEP,UK)
0T901 1-435-809-11 TRANSFORMER, POWER (CL3:MX,KR)
0T901 1-435-829-11 TRANSFORMER, POWER (CL1:AEP,UK)
0T901 1-435-830-11 TRANSFORMER, POWER (CL1:US)
0T901 1-435-831-11 TRANSFORMER, POWER (CL1:AUS,MX,TW,KR)
