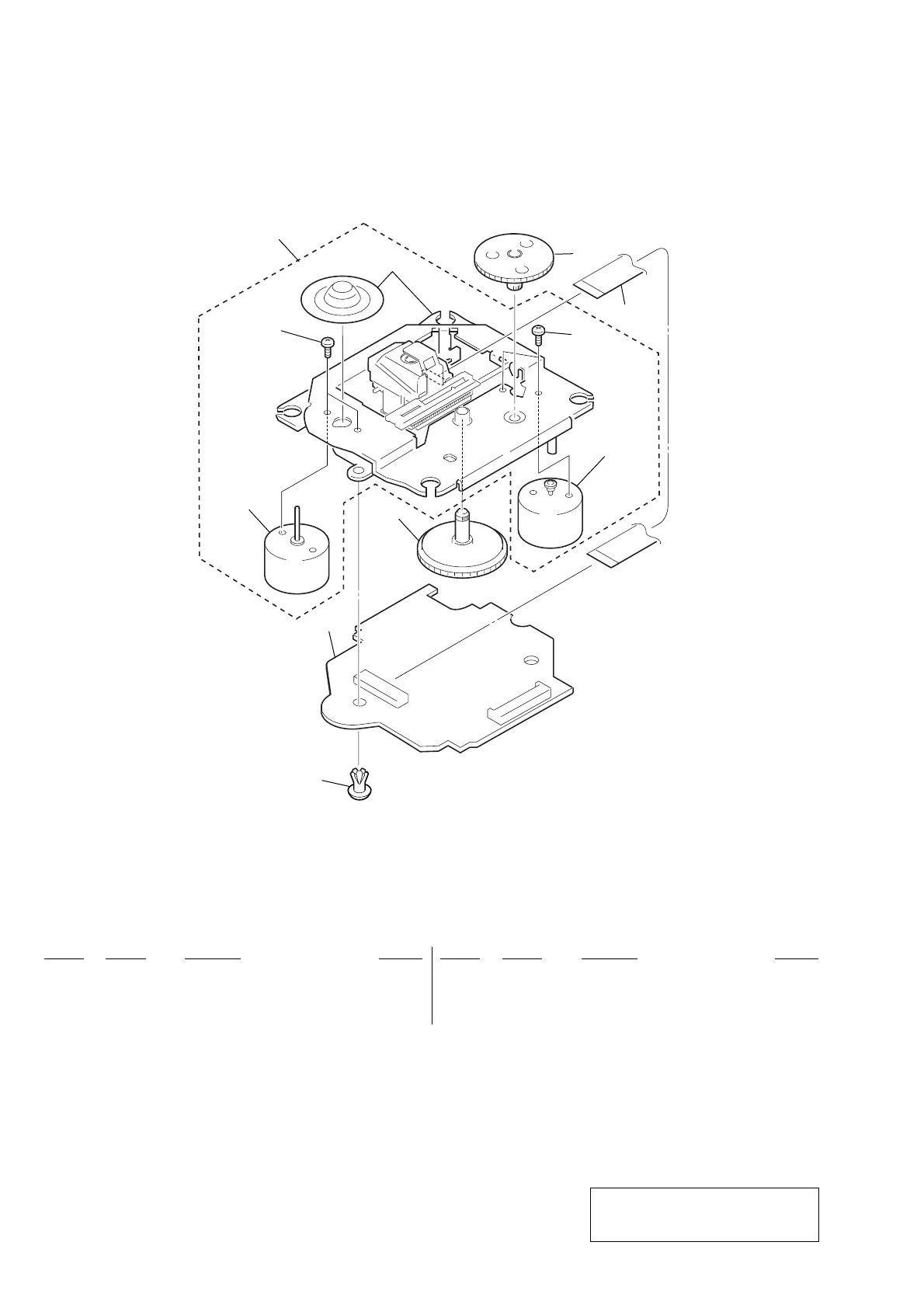

8-6. BASE UNIT SECTION (BU-30BD60)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
not supplied
not supplied
306
302
301
305
303
304
304
not supplied
307
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
301 3-531-576-11 RIVET
302 A-4725-531-A BD BOARD, COMPLETE
303 4-233-832-01 GEAR (LB)
304 7-627-853-28 SCREW, PRECISION +P 2X3 TYPE3
305 4-233-831-01 GEAR (LA)
306 1-757-710-11 WIRE (FLAT TYPE) (16 CORE)
0307 A-4735-188-A BU-30 (60) ASSY
