Sony HCD-CL3 - Printed Wiring Board Main Section

2525
HCD-CL1/CL3

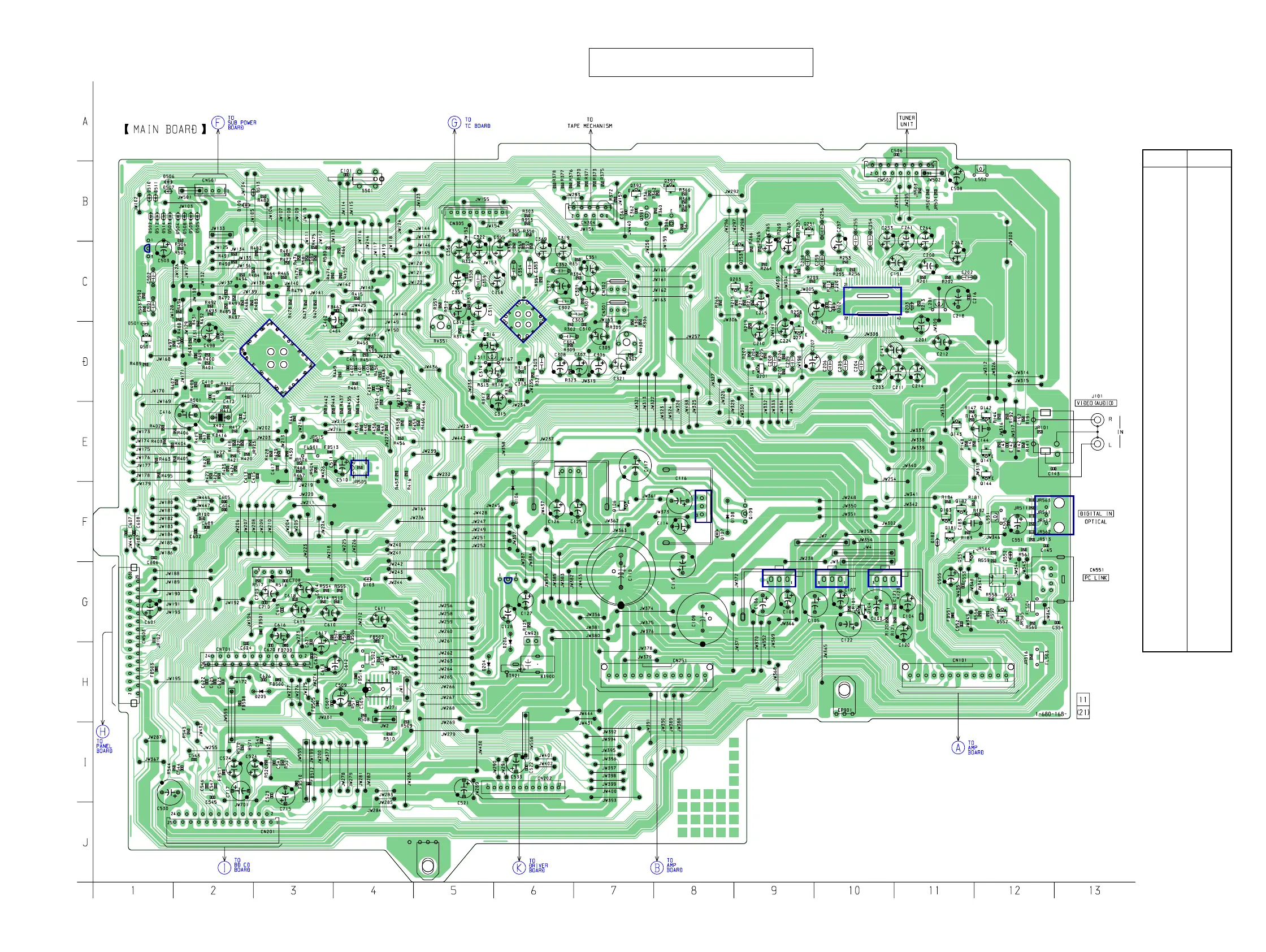

7-3. PRINTED WIRING BOARD MAIN SECTION
IC401
IC301
IC501
IC 502
IC 503
IC110
IC 108
IC201
IC103 IC102 IC101
IC105
IC504
IC551
IC 552
(Page 41)
(Page 33)
(Page 29)
( )
(Page 37)
(Page 31)
(Page 35)
(Page 35)
Ref. No. Location
D103 G-4
D106 F-6
D107 F-8
D108 F-8
D182 F-11
D202 C-10
D203 C-11
D501 D-1
D502 B-1
D504 B-2
D505 B-2
D506 B-1
D507 B-1
D508 B-2
D509 B-2
D514 B-1
IC101 G-10
IC102 G-10
IC103 G-9
IC105 F-8
IC201 C-10
IC301 D-6
IC401 D-3
IC501 C-1
IC504 E-4
IC551 F-13
Q104 G-10
Q106 F-7
Q109 F-9
Q181 F-11
Q182 F-11
Q183 F-11
Q201 D-9
Q203 C-9
Q251 B-9
Q253 C-9
Q271 D-9
Q391 B-7
Q392 B-7
Q396 B-8
Q397 B-8
Q501 D-1
• Semiconductor
Location
• See page 21 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
