Sony HCD-DR3 - Exploded Views of Components; Top Cover Section Exploded View

33
SECTION 6
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
• Abbreviation
SP : Singapore model
MX : Mexican model
AR : Argentina model
AUS : Australian model
EE : East European model

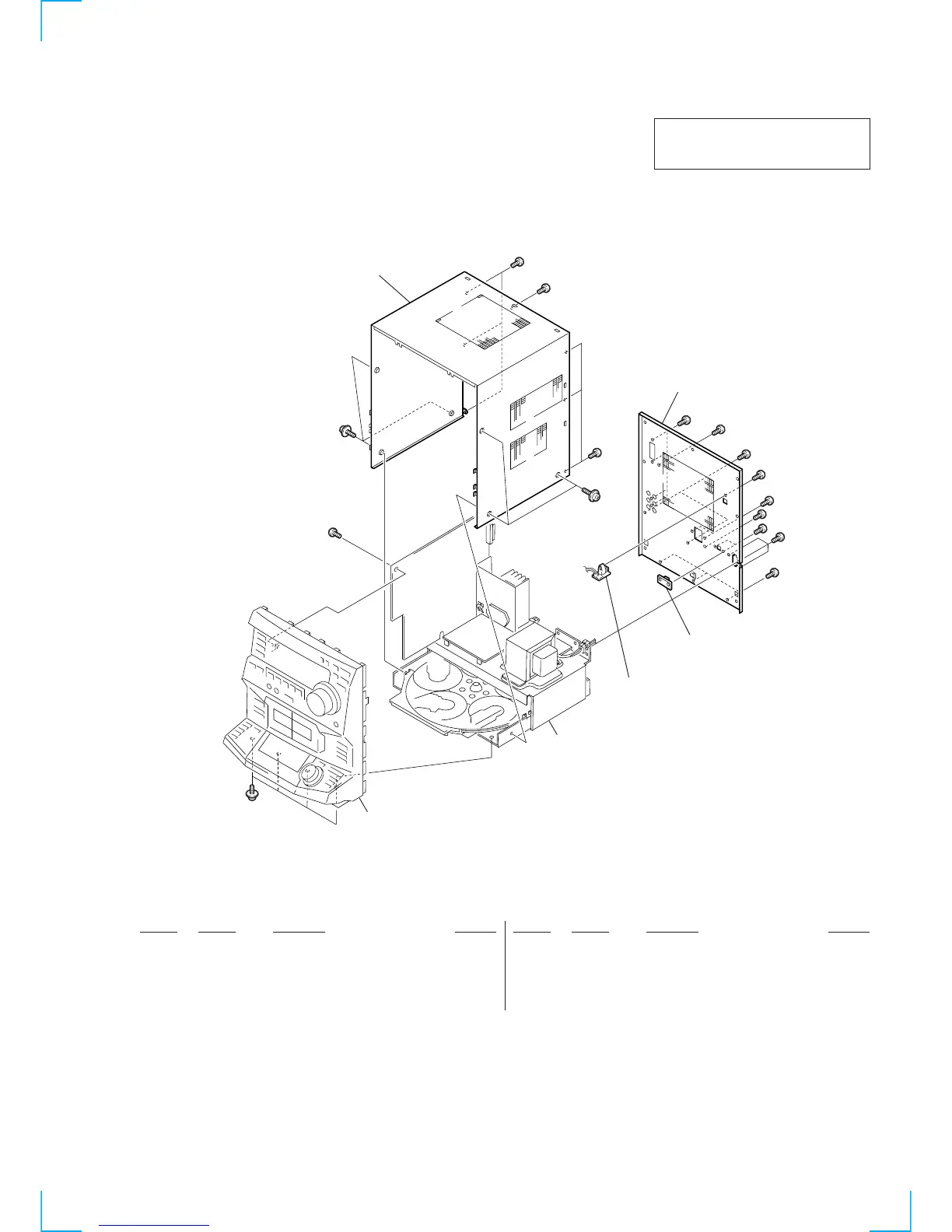

6-1. TOP COVER SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1
2
3
4
#2
#2
#2
#3
#3
#3
#3
#4
#4
#4
#4
#4
Front panel section
Main section
#4
#1
#1
#1
1 4-221-012-01 COVER, TOP
* 1 4-211-556-01 COVER, TOP(DR330)
2 4-222-140-01 PANEL, REAR(XB200:AEP,UK)
2 4-222-141-01 PANEL, REAR(XB200:EE,CIS)
2 4-222-142-01 PANEL, REAR(DR3:E,SP,AR)
2 4-222-143-01 PANEL, REAR(DR3:AUS)
2 4-222-144-01 PANEL, REAR(DR3:MX)
2 4-222-145-01 PANEL, REAR(DR330)
3 1-674-880-11 AC SWITCH BOARD (DR3:E,SP,AR)
4 1-675-425-11 PHOTO SOCKET BOARD
