Sony HCD-DR3 - Top Cover Removal; Front Panel Assembly Disassembly

5
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

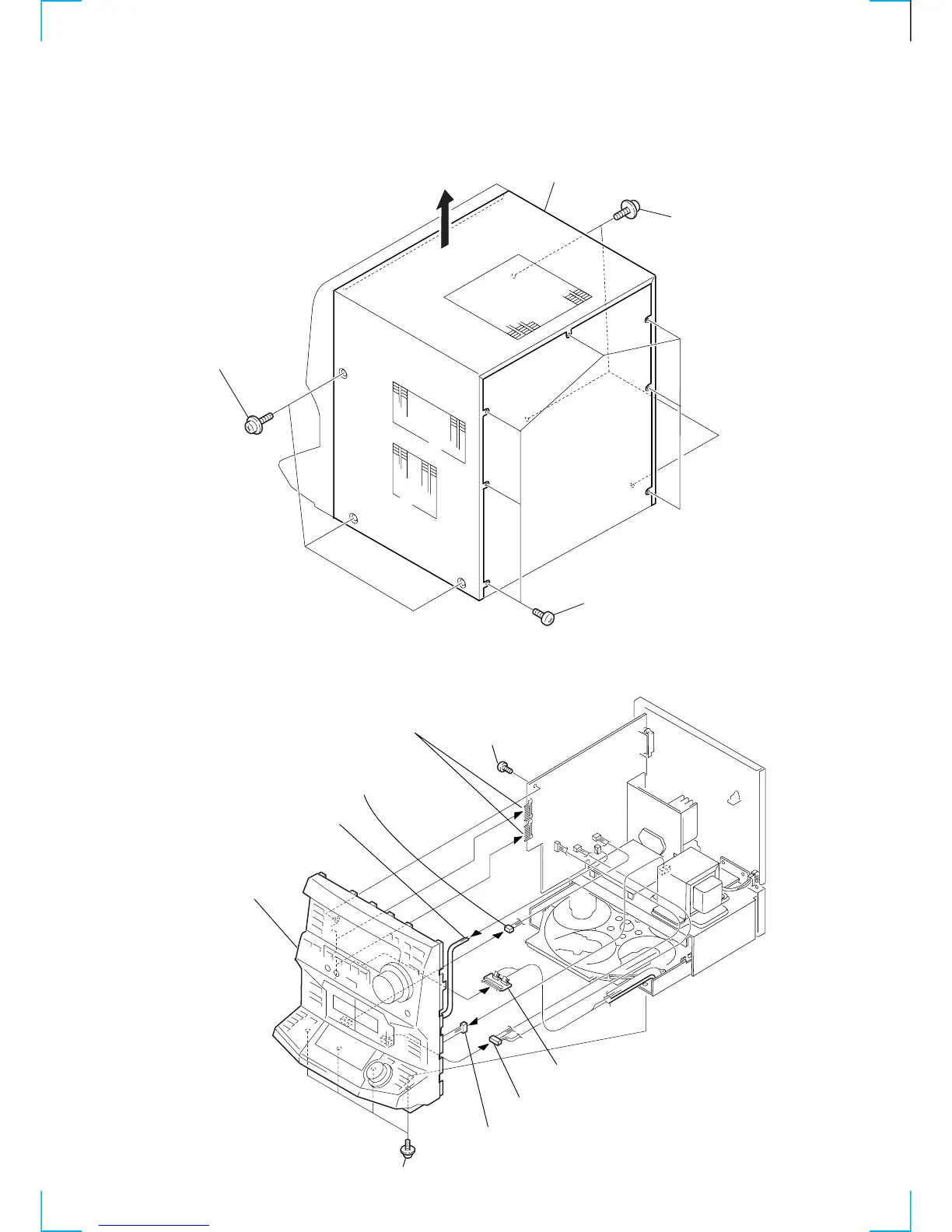

2-1. TOP COVER
2-2. FRONT PANEL ASSY
2 Seven screws
1 Three screws
1 Three screws
3 Top cover
9 Front panel assy
6 Four screws
7 Screw
1 Connector
(to deck A)
2 Harness
(CN302)
4 Connector
(to deck B)
5 Connector
(CN702)
8 Board to board connector
(CN602)
(CN601)
3 Connector board
(CN11)
