Sony HCD-DR3 - CD Door Section Exploded View

34
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

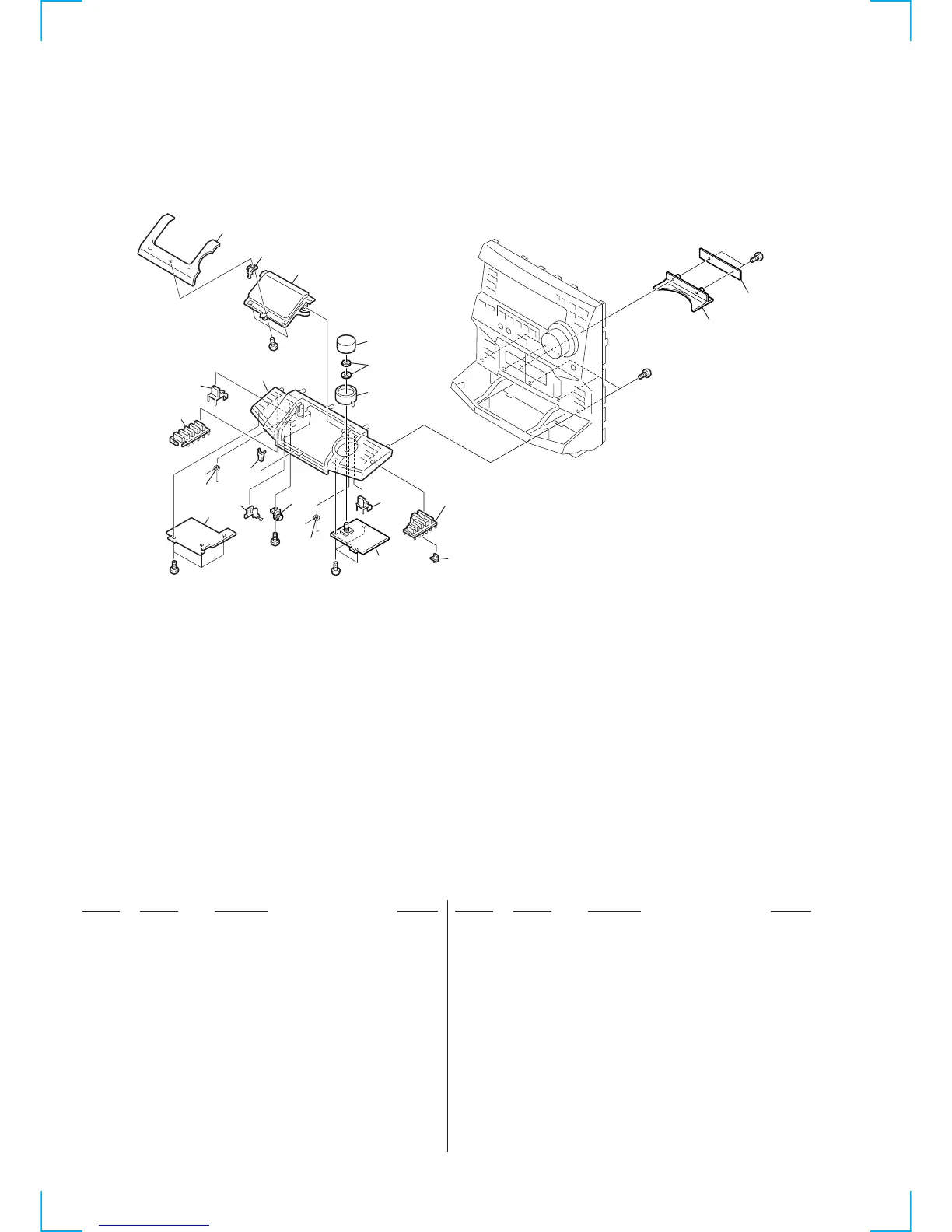

6-2. CD DOOR SECTION
#6
#6
not supplied
#6
#7
#5
#5
51
53
54
55
56
57
60
61
62
63
64
65
66
67
68
58
59
52
69
70
51 4-221-007-01 BUTTON, CD PLAY(DR3,XB200)
51 4-222-126-01 BUTTON, CD PLAY(DR330)
52 4-221-008-01 LENS, CD PLAY BUTTON
53 4-221-006-01 BUTTON, CD SKIP(DR3,XB200)
53 4-222-125-01 BUTTON, CD SKIP(DR330)
54 1-674-635-11 AMS BOARD
55 4-221-011-01 SPRING (R), CD DOOR
56 4-211-920-01 DAMPER (PG-5), GEAR
57 1-674-632-11 CD SW BOARD
58 4-221-128-01 LOCK
59 4-221-010-01 SPRING (L), CD DOOR
60 1-674-634-11 CD KEY BOARD
61 4-221-004-01 BUTTON, CD DISC(DR3,XB200)
61 4-222-123-01 BUTTON, CD DISC(DR330)
62 4-221-005-01 BUTTON, CD EDIT(DR3,XB200)
62 4-222-124-01 BUTTON, CD EDIT(DR330)
63 4-220-995-01 PANEL, CD FRONT(DR3,XB200)
63 4-222-120-01 PANEL, CD FRONT(DR330)
64 4-221-002-01 RING, AMS
65 4-221-003-01 KNOB, AMS(DR3,XB200)
65 4-222-122-01 KNOB, AMS(DR330)
66 4-220-996-01 WINDOW, CD DOOR
67 4-221-009-01 HOOK, CD DOOR
68 4-221-001-01 DOOR, CD(DR3,XB200)
68 4-222-121-01 DOOR, CD(DR330)
69 4-211-914-01 LENS, CD DOOR
70 1-674-637-11 LED BOARD
