Sony HCD-DR3 - Panel Section Exploded View

35
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

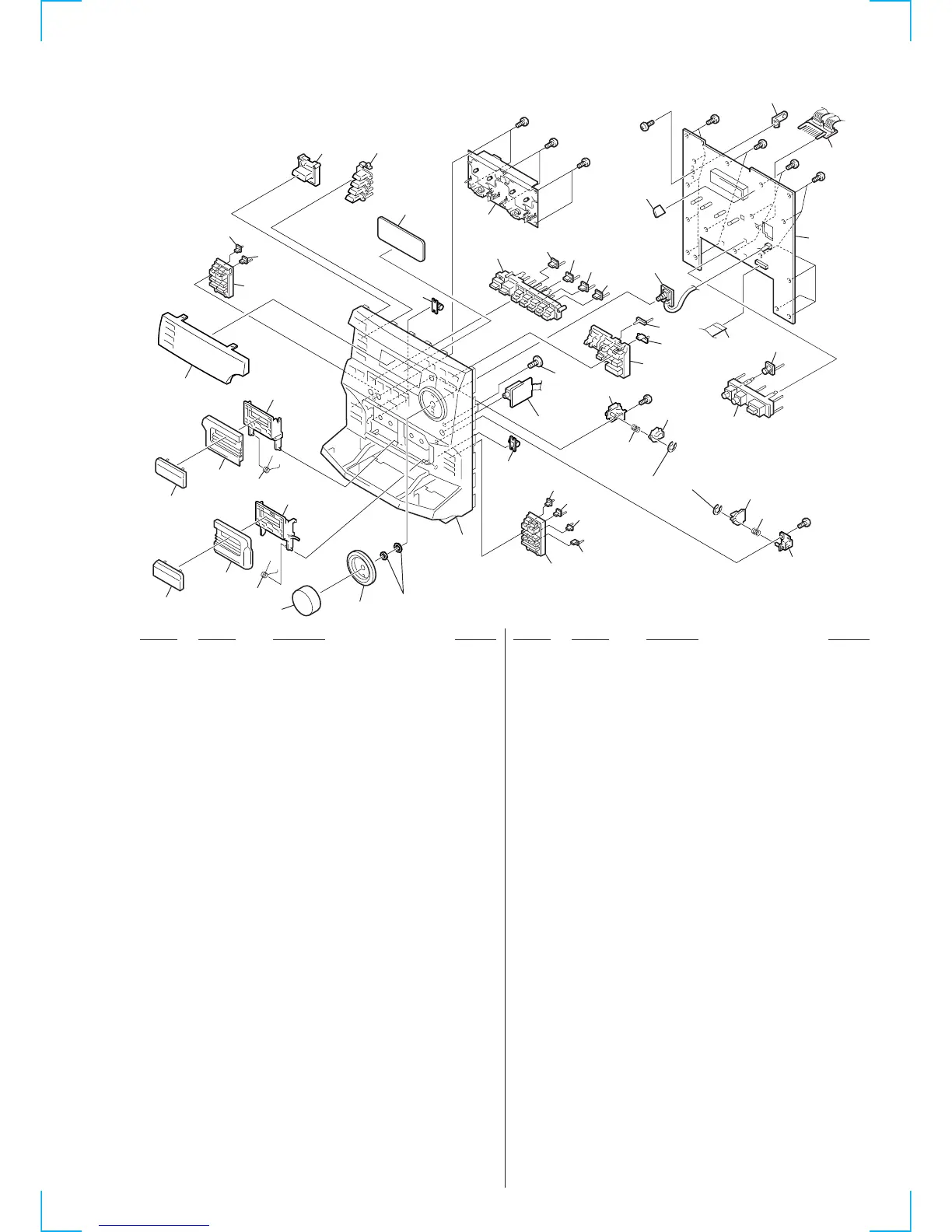

6-3. PANEL SECTION
#7
#7
#7
#7
#7
#4
#7
#7
#7
#7
not
supplied
Not supplied
Not supplied
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
127
128
129
130
131
134
135 136
137
138
139
140
141
132
142
143
144
144
145
142
126
133
146
126
101 4-221-028-01 BUTTON (R), CASS(DR3,XB200)
101 4-222-130-01 BUTTON (R), CASS(DR330)
102 4-221-034-01 LENS (A), CASS BUTTON (R)
103 4-221-035-01 LENS (B), CASS BUTTON (R)
104 4-221-036-01 LENS (C), CASS BUTTON (R)
105 4-221-037-01 LENS (D), CASS BUTTON (R)
106 4-221-014-01 PANEL, FRONT(DR3,XB200)
106 4-222-131-01 PANEL, FRONT(DR330)
107 4-221-000-01 RING, VR
108 4-221-026-01 KNOB, VOLUME(DR3,XB200)
108 4-222-128-01 KNOB, VOLUME(DR330)
109 4-221-016-01 HOLDER (R), CASS DOOR
110 4-220-989-01 SPRING (R), CASS
111 4-222-135-01 DOOR (R), CASSETTE(XB200)
111 4-222-136-01 DOOR (R), CASSETTE(DR3)
111 4-222-137-01 DOOR (R), CASSETTE(DR330)
112 4-220-998-01 WINDOW (R), CASS DOOR
113 4-220-997-01 WINDOW (L), CASS DOOR
114 4-222-132-01 DOOR (L), CASSETTE(XB200)
114 4-222-133-01 DOOR (L), CASSETTE(DR3)
114 4-222-134-01 DOOR (L), CASSETTE(DR330)
115 4-220-988-01 SPRING (L), CASS
116 4-221-015-01 HOLDER (L), CASS DOOR
117 4-220-999-01 WINDOW, DISPLAY
118 4-221-027-01 BUTTON (L), CASS(DR3,XB200)
118 4-222-129-01 BUTTON (L), CASS(DR330)
119 4-221-033-01 LENS (B), CASS BUTTON (L)
120 4-221-032-01 LENS (A), CASS BUTTON (L)
121 4-221-021-01 BUTTON, POWER (DR3,XB200)
121 4-222-138-01 BUTTON, POWER(DR330)
122 4-221-023-01 BUTTON, CLOCK
123 4-220-987-01 PLATE, DISPLAY
124 1-772-164-11 DECK, MECH
125 4-221-024-01 BUTTON, MODE
126 4-220-992-01 DAMPER (GRAY), GEAR
127 4-221-038-01 LENS, ROCK BUTTON
128 4-221-039-01 LENS, POP BUTTON
129 4-220-985-01 LENS, JAZZ BUTTON
130 4-220-986-01 LENS, SALSA BUTTON
131 1-674-633-11 REM BOARD
132 3-306-734-01 SCREW (M3 × 12), TAPPING
133 A-4426-395-A FRONT BOARD, COMPLETE(XB200)
133 A-4426-396-A FRONT BOARD, COMPLETE(DR3:E)
133 A-4426-397-A FRONT BOARD, COMPLETE(DR3:AUS)
133 A-4426-398-A FRONT BOARD, COMPLETE(DR3:AR)
133 A-4426-400-A FRONT BOARD, COMPLETE(DR3:MX,DR330)
133 A-4426-399-A FRONT BOARD, COMPLETE(DR3:SP)
134 1-674-631-11 VR BOARD
135 1-783-579-11 WIRE (FLAT TYPE) (16 CORE)
136 4-221-031-01 LENS, GROOVE BUTTON
137 4-221-025-01 BUTTON, SURROUND(DR3,XB200)
137 4-222-127-01 BUTTON, SURROUND(DR330)
138 4-221-030-01 LENS, ENTER BUTTON
139 4-221-029-01 LENS, TUNER BUTTON
140 4-221-022-01 BUTTON, TUNER(DR3,XB200)
140 4-222-139-01 BUTTON, TUNER(DR330)
142 4-220-990-01 HOLDER, EJECT
143 4-220-994-01 SPRING (R), PUSHING
144 4-220-991-01 LEVER, EJECT
145 4-220-993-01 SPRING (L), PUSHING
146 1-675-424-11 CONNECTOR BOARD
