Sony HCD-DR3 - Base Unit Disassembly; Turn Table Disassembly

9

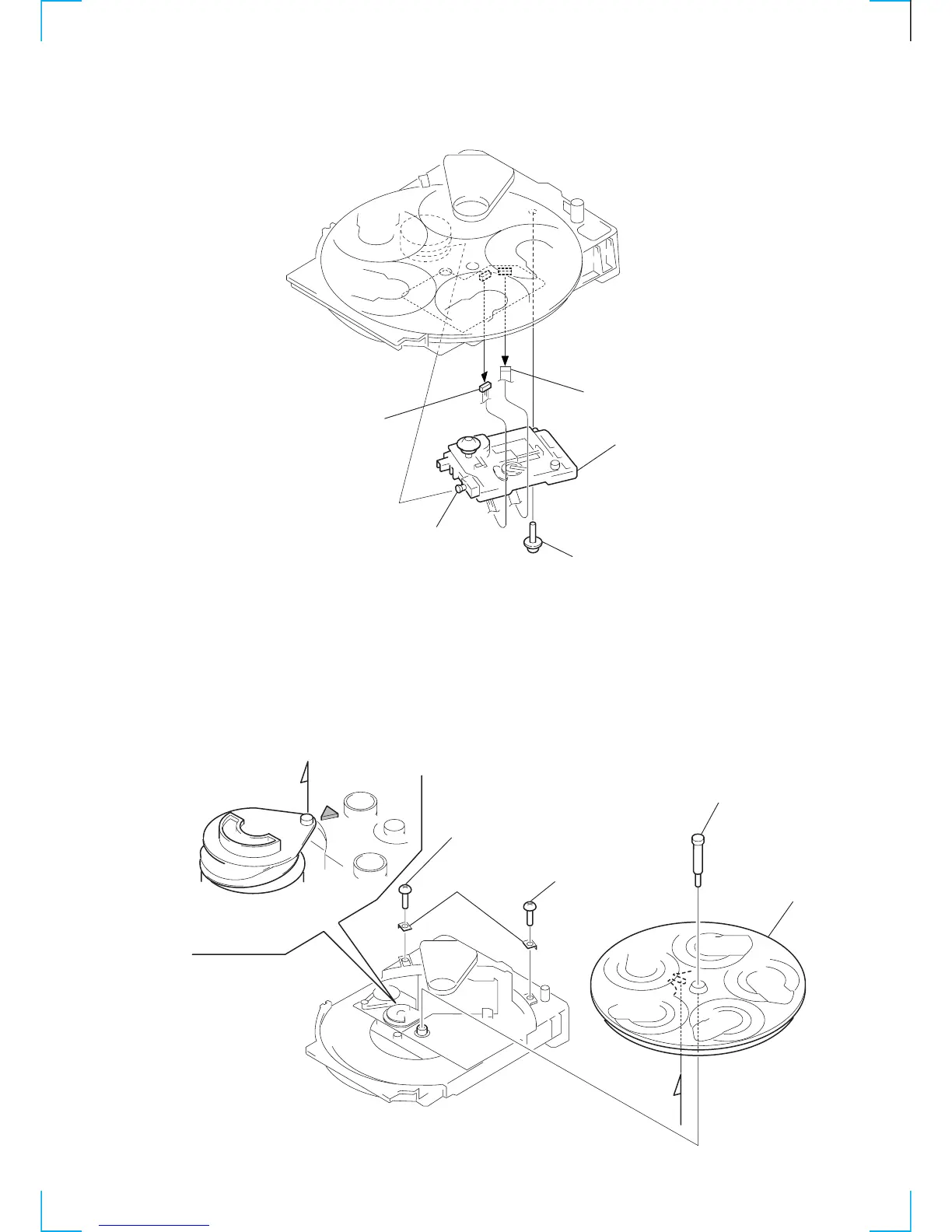

2-9. BASE UNIT
2-10. TURN TABLE
Note:
When the disc table is installed, adjust the positions of
roller can and mark ” as shown in the figure, then set
to the groove of disc table.
5 Base uni
t
3 Yoke bracket
1 Connector
(CN02)
2 Connector
(CN01)
4 Boss
1 Screw
1 Screw
4 Turn tabl
e
3 Step screw
2 Bracket (BU)
A
A
