Sony HCD-DR3 - Main Section Exploded View

36
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

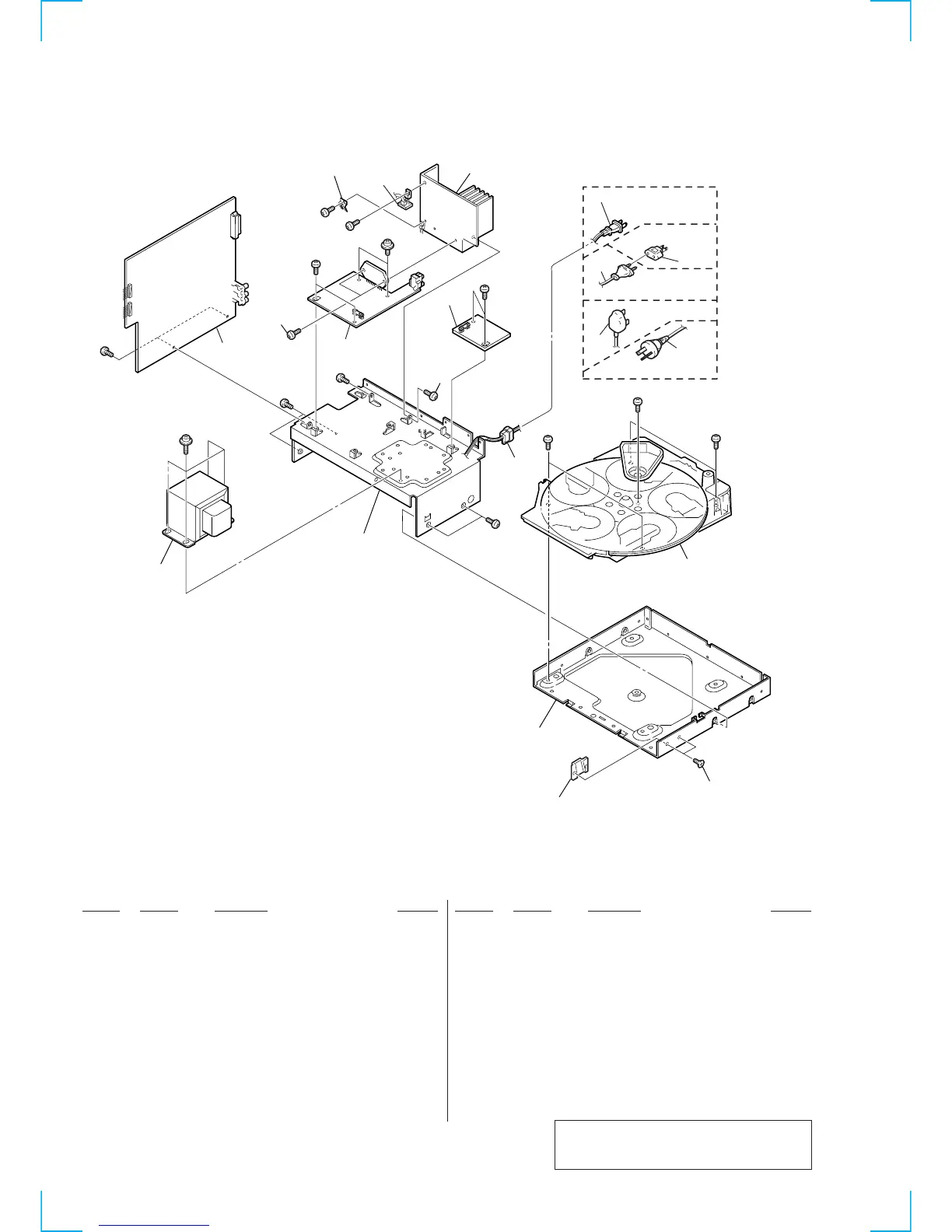

6-4. MAIN SECTION
151
151
151
151
157
E,MX MODEL
UK MODEL
AUS, AR MODEL
SP MODEL
SP,AEP,EE,
CIS MODEL
not supplied
not supplied
not supplied
not supplied
CD section
not supplied
not supplied
#4
#7
#10
#4
#3
#4
#11
#4
#4
#4
#4
#3 #3
#3
#9
T001
156
152
153
155
154
! 151 1-551-506-99 CORD, POWER(DR3:E,MX,DR330)
! 151 1-555-795-00 CORD, POWER(DR3:SP/XB200:AEP,EE,CIS)
! 151 1-696-572-21 CORD, POWER(XB200:UK)
! 151 1-696-966-11 CORD, POWER(DR3:AUS)
! 151 1-783-941-51 CORD, POWER(DR3:AR)
152 A-4426-407-A MAIN BOARD, COMPLETE(XB200)
152 A-4426-408-A MAIN BOARD, COMPLETE(DR3:E,SP,AR)
152 A-4426-409-A MAIN BOARD, COMPLETE(DR3:AUS)
152 A-4426-410-A MAIN BOARD, COMPLETE(DR3:MX,DR330)
153 A-4426-417-A POWER (AMP) BOARD, COMPLETE(XB200)
153 A-4426-418-A POWER (AMP) BOARD, COMPLETE
(DR3:E,SP,AR,AUS)
153 A-4426-419-A POWER (AMP) BOARD, COMPLETE
(DR3:MX,DR330)
154 1-674-638-11 POWER SUPPLY BOARD
155 1-674-642-11 TR BOARD
156 3-703-244-21 BUSHING, CORD
! 157 1-569-008-21 ADAPTOR, CONVERSION 2P (SP)
! T001 1-433-921-11 TRANSFORMER, POWER(DR3:MX,DR330)
! T001 1-433-922-11 TRANSFORMER, POWER(XB200)
! T001 1-433-923-11 TRANSFORMER, POWER(DR3:E,SP,AR)
! T001 1-433-924-11 TRANSFORMER, POWER(DR3:AUS)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
