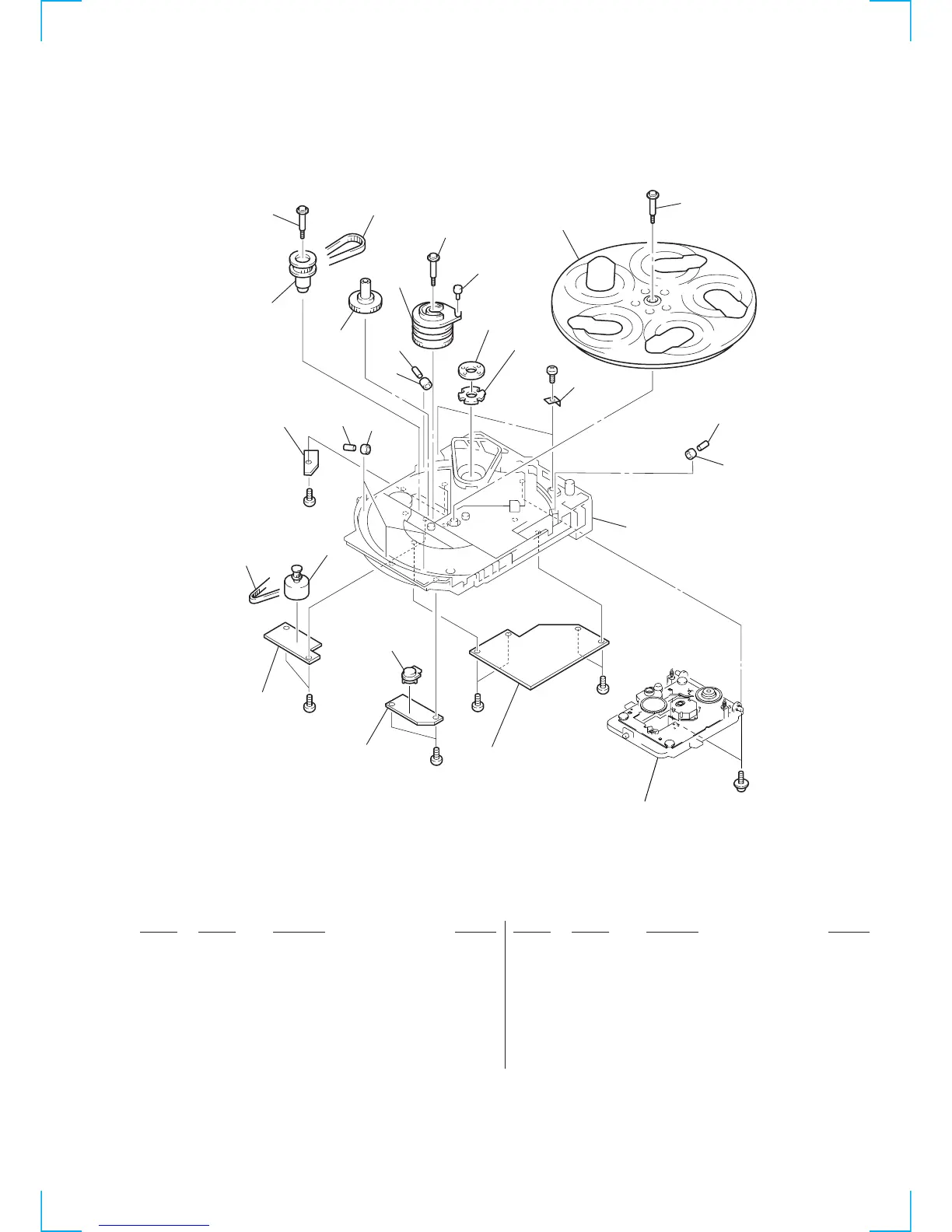

Sony HCD-DR3 - CD Mechanism Section Exploded View

37
M01
201
201
not supplied
not supplied
not supplied
203
216
207
207
208
208
202
202
204
205
215
206
201
207
208
211
212
214
213
210
#1
#6
#6
#6
#6
#6
#11
Base unit block
201 4-987-976-01 SCREW,STEP
202 4-944-490-01 BELT(TIMING)
203 4-223-449-01 GEAR (MID)
204 4-223-447-01 ROLLER(CAM)
205 4-978-420-01 CAM(HOLDER)
206 4-223-440-01 TABLE, DISC
207 4-934-376-01 SHAFT (ROLLER)
208 4-223-450-01 ROLLER
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
210 1-675-422-11 MOTOR BOARD
211 4-223-441-01 INDICATOR
212 1-675-423-11 DISC NO BOARD
213 1-675-421-11 CD SENSOR BOARD
214 A-4426-810-A CD DECORD BOARD, COMPLETE
215 4-223-452-11 MAGNET
216 4-223-439-11 PULLEY
M01 1-541-632-11 MOTOR DC
6-5. CD MECHANISM SECTION
