Sony HCD-DZ3K - Case, Front Panel Assy

13
HCD-DZ3K

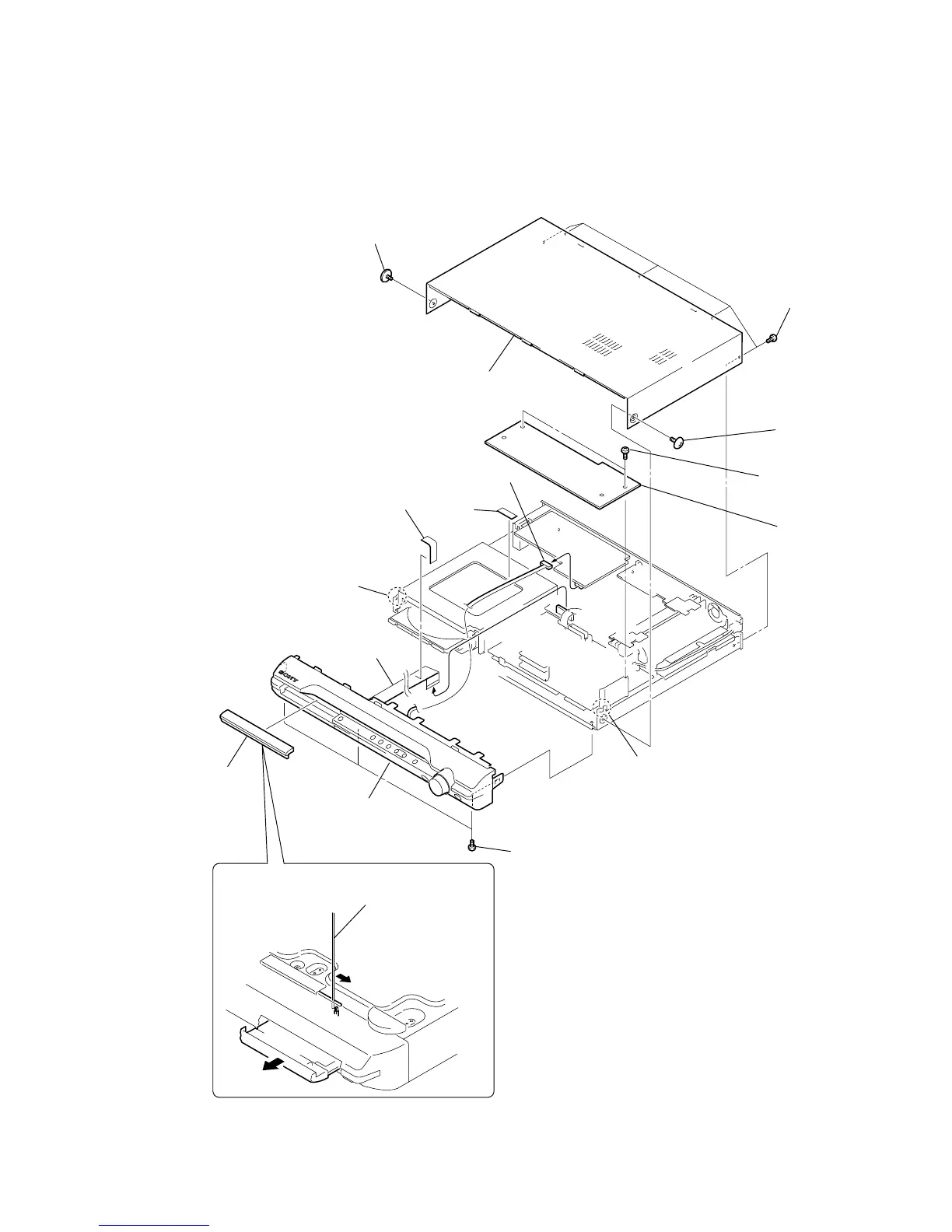

3-2. CASE, FRONT PANEL ASSY
Note: Follow the disassembly procedure in the numerical order given.
1 The lever is moved in the direction
of the arrow with the thin rod.
2
3 loading panel
4 screw (CASE3 TP2)
5 screw
(CASE3 TP2
)
7 case
qj front panel assy
qf three screws (+BV 3 × 6)
qd wire (flat type)
23core (CN509)
qh claw
qg claw
6 five screws
(+BVTP 3 × 8)
q; two screws
(+BVTP 3 × 8)
qa cover (top)
8 sheet
qs sheet
9 connector (CN312)
