Sony HCD-DZ3K - FL Board; JACK Board, SW Board

14
HCD-DZ3K

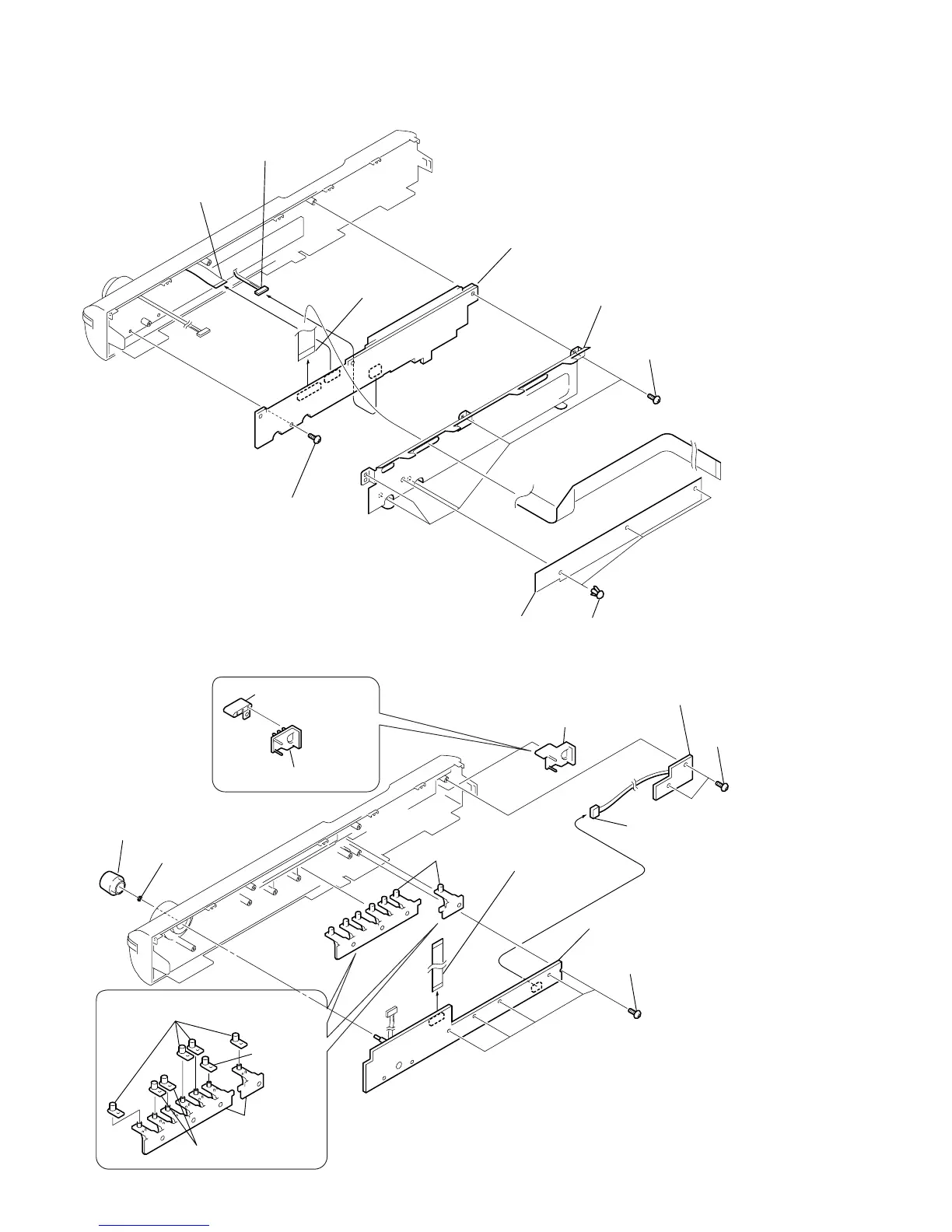

3-4. JACK BOARD, SW BOARD
3-3. FL BOARD
4 shield plate (fs)
9 FL board
8 wire (flat type)
23core (CN801)
6 wire (flat type)
13core (CN805)
3 five screws (+BVTP 2.6 × 8)
5 screw (+BVTP 2.6 × 8)
7 connector (CN811)
1 three rivets
2 retainer K
1 knob (vol)
2 nut
5 JACK board
6 button base
assy (play)
4 wire (flat type)
13core (CNP802)
qa connector (CNP801)
3 five screws (+BVTP 2.6 × 8)
qs two screws
(+BVTP 2.6
× 8)
qf button base
assy (power)
qd SW board
q; button base
(play)
8 cap (play)
9 two caps (AMS)
7 four caps (FUNC)
qh cap (power)
qg button base (power)
