Sony HCD-DZ3K - 2 General

9
HCD-DZ3K
SECTION 2
GENERAL
This section is extracted
from instruction manual.

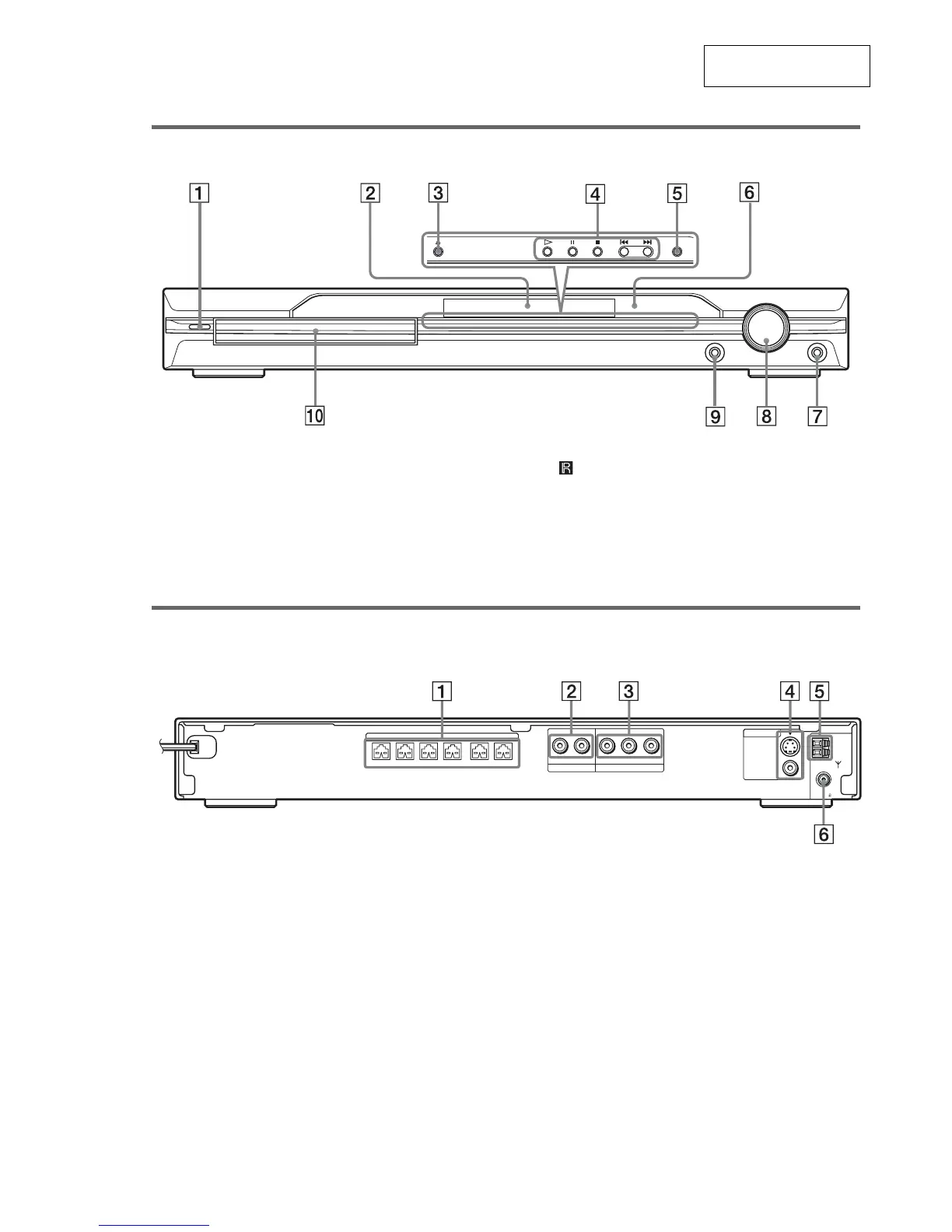

Front panel
A "/1 (on/standby) (22)
B Front panel display (88)
C A (open/close) (22)
D Disc operation (22)
E FUNCTION (22)
F (remote sensor) (8)
G MIC 2 jack (54)
H VOLUME control (22)
I AUDIO IN/MIC 1/A.CAL MIC jack (23, 54)
J Disc tray (22)
Rear panel
A SPEAKER jacks (9)
B TV/VCR (AUDIO IN R/L) jacks (21)
C COMPONENT VIDEO OUT jacks (18)
D MONITOR OUT (S VIDEO/VIDEO) jacks
(18)
E AM terminal (9)
F COAXIAL FM 75Ω jack (9)
RLAUDIO IN
COAXIAL
AM
FM 75
COMPONENT VIDEO OUT TV/VCR
(DVD ONLY)
YP B/CB PR/CR
SPEAKER
FRONT R FRONT L SUR R SUR LCENTER WOOFER
VIDEO
(DVD ONLY)
S VIDEO
MONITOR OUT
