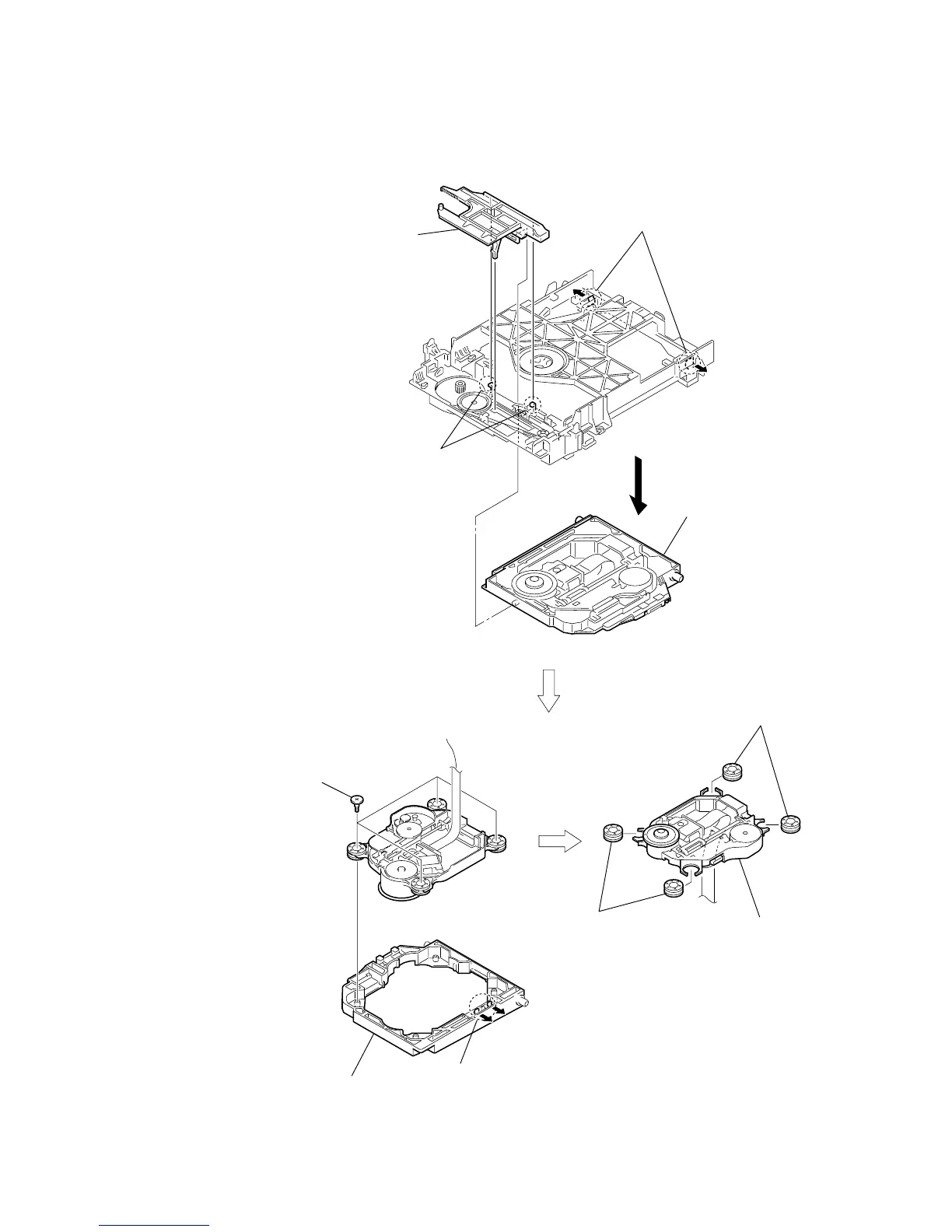

3-12. OPTICAL PICK-UP (KHM-310CAA)
1
two claws
3
two claws
2
chuck cam
4
base unit
5
two claws
7
bu holder
8
two insulators
9
two insulators
6
four insulator screws
0
optical pick-up
(KHM-310CAA)
