Sony HCD-DZ3K - DVD Mechanism Deck (CDM85-DVBU102); Tray

17
HCD-DZ3K

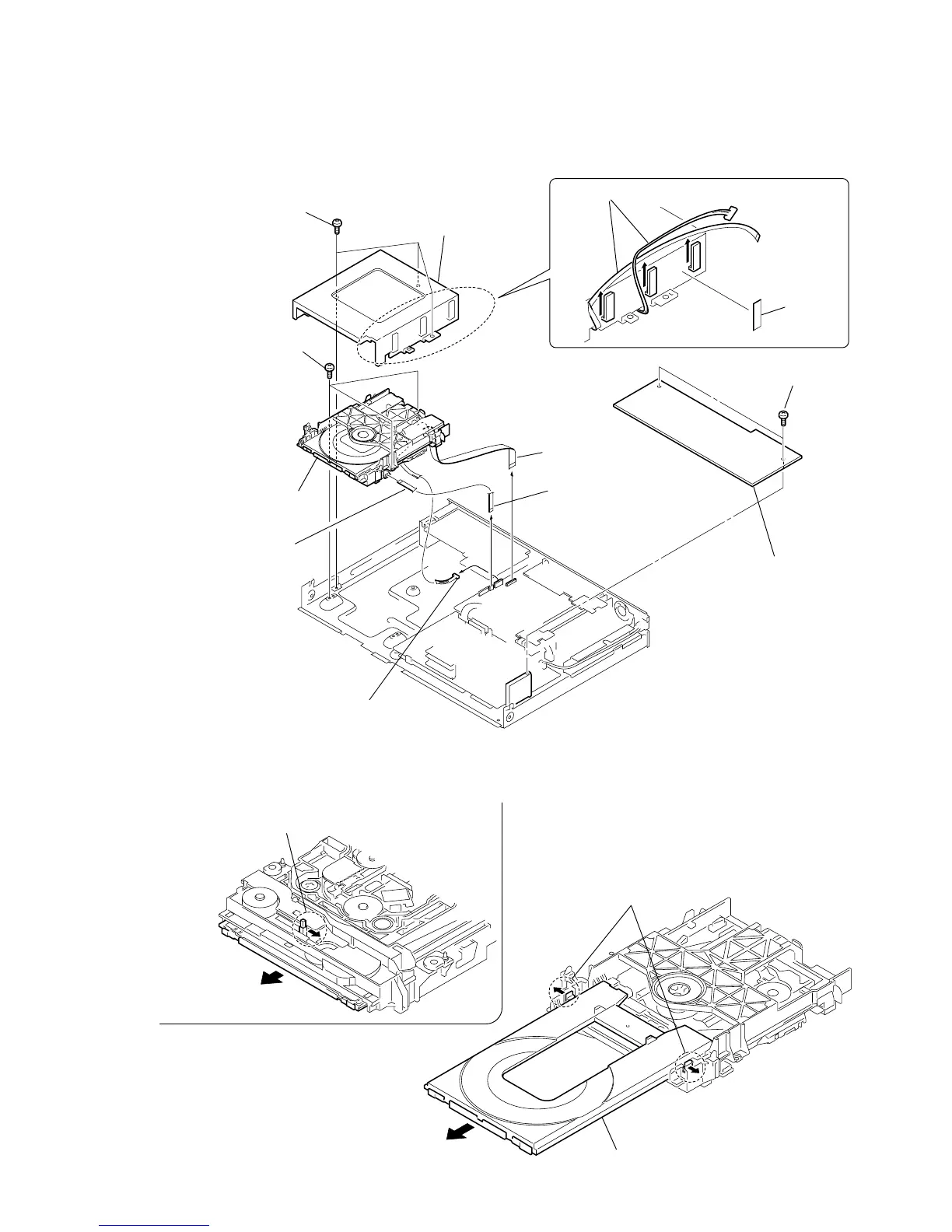

3-10. TRAY
3-9. DVD MECHANISM DECK (CDM85-DVBU102)
1 two screws
(+BVTP 3
× 8)
qs DVD mechanism deck
(CDM85-DVBU102)
9 cover (MD)
2 cover (top)
6 sheet
7 Remove the wire and harness.
q; three screws (+BV 3 × 6)
8 three screws (+BV 3 × 6)
5 wire (flat type) 24core
(CN1101)
4 wire (flat type) 5core
(CN1202)
qa wire (flat type) 5core
3 connector (CN1201)
4
2
3
two claws
5 tray
1 Move the chuck cam
in the direction of the arrow.
bottom side
