2525
HCD-DZ3K
HCD-DZ3K

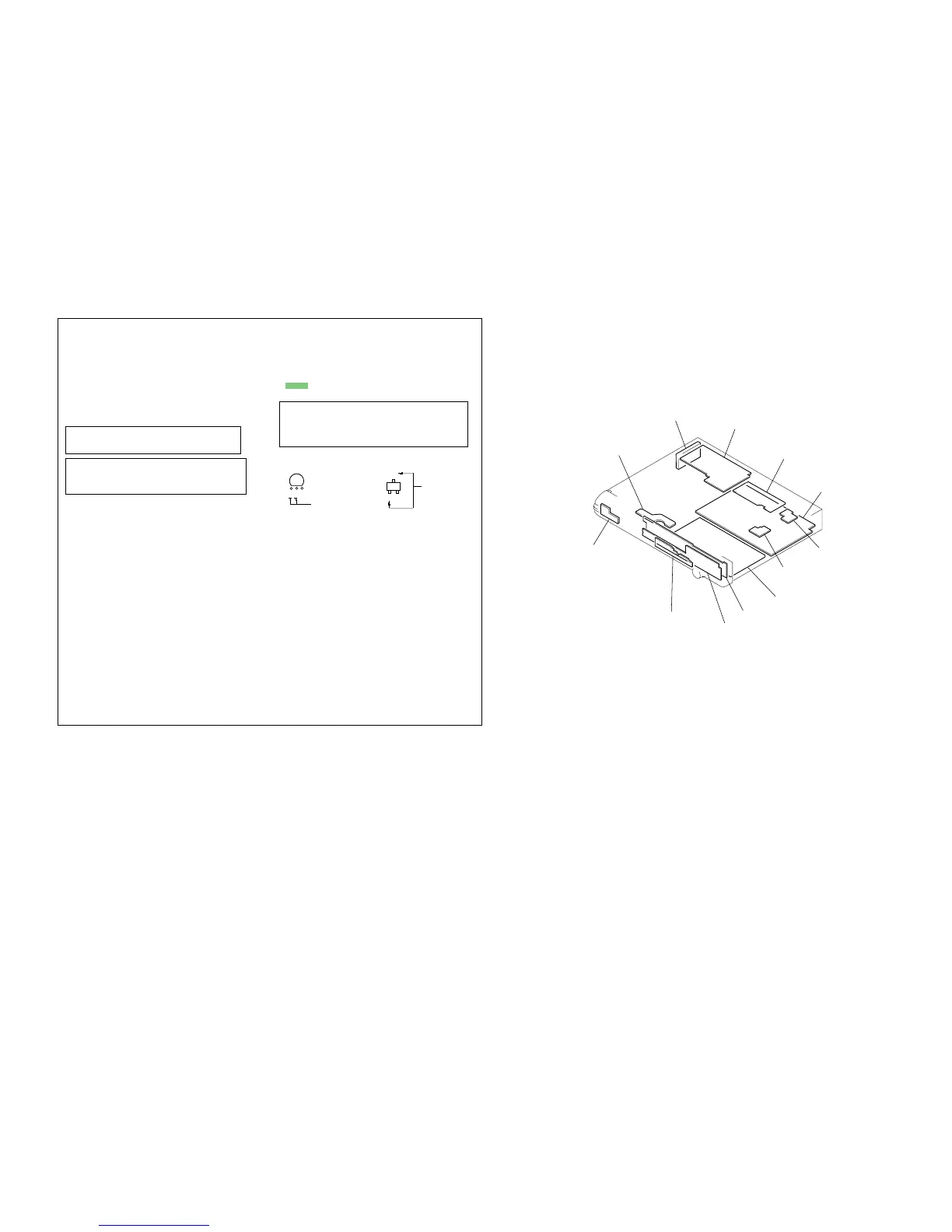

• Circuit Boards Location
FL board
JACK board
DDCON board
SW board
I/O board
SPEAKER board
MAIN board
HEATSINK B board
HEATSINK A board
POWER board
TUNER UNIT
MS-203 board
SECTION 6
DIAGRAMS
For Schematic Diagrams.
Note:
All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics and
tantalums.
All resistors are in and
1
/
4
W or less unless otherwise
specified.
f : internal component.
C : panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
A : B+ Line.
•Voltages and waveforms are dc with respect to ground un-
der no-signal (detuned) conditions.
•Voltages and waveforms are dc with respect to ground in
service mode.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
no mark : DVD STOP
*
: Impossible to measure
•Voltages are taken with VOM (Input impedance 10 M).
Circled numbers refer to waveforms.
Signal path.
F : AUDIO
J : CD PLAY
c : DVD PLAY
d : TUNER
L : VIDEO
E : Y
a : CHROMA
r : COMPONENT VIDEO
f : AUDIO IN
N : MIC
Abbreviation
AUS : Australian model
E32 : 110-240V AC area in E model
MX : Mexican model
SP : Singapore model
For Printed Wiring Boards.
Note:
X : parts extracted from the component side.
a : Through hole.
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Indication of transistor.
Caution:
Parts face side: Parts on the parts face side seen from
(SIDE A) the parts face are indicated.
Pattern face side: Parts on the pattern face side seen from
(SIDE B) the pattern face are indicated.
New part of EEP ROM (IC1103) on the MAIN board
cannot be used. Therefore, if the mounted MAIN board
(A-1191-800-A, etc.) is replaced, exchange new EEP
ROM (IC1103) with that used before the replacement.
C
B
These are omitted.
E
Q
CEB
These are omitted
Note: The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
