HCD-DZ3K
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

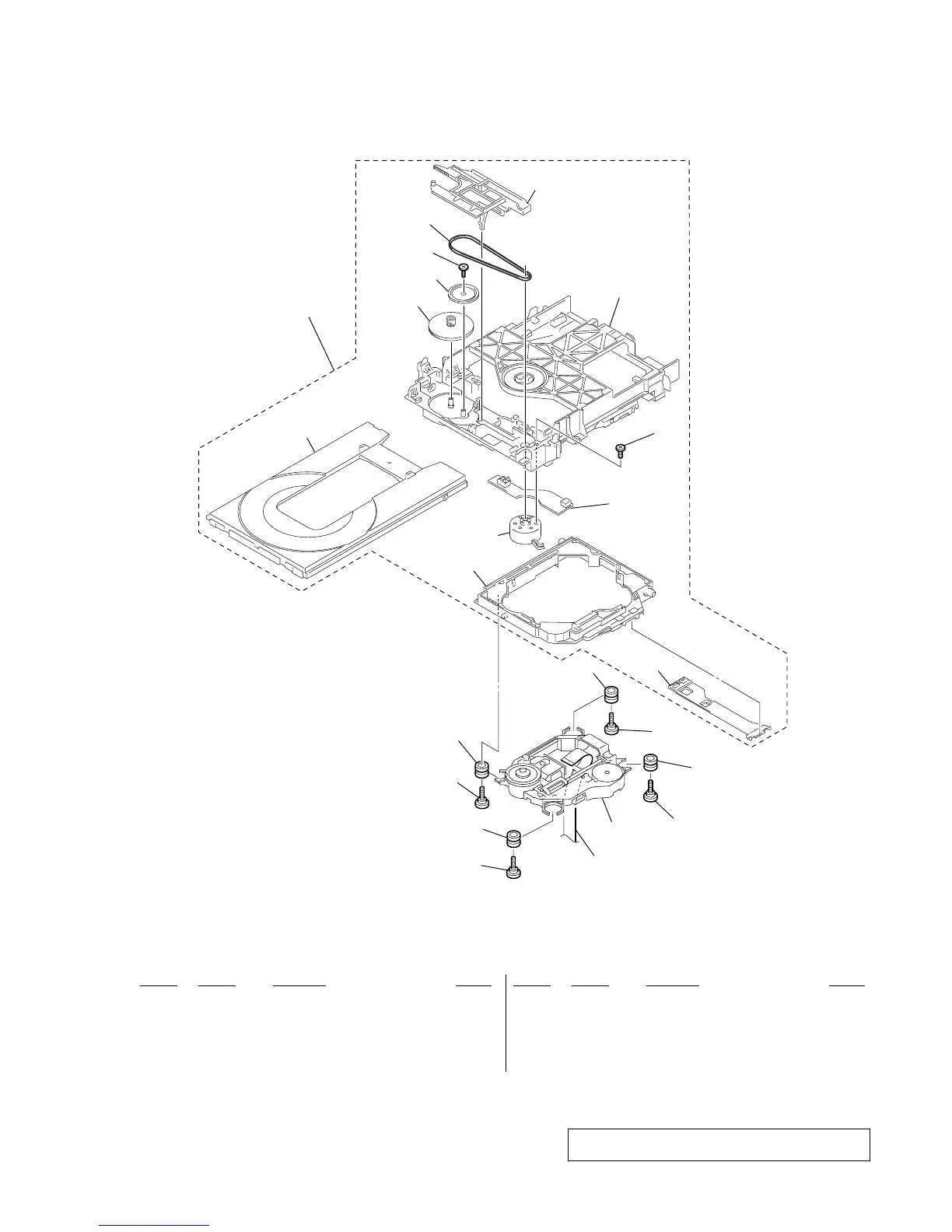

7-4. DVD MECHANISM DECK SECTION (CDM85-DVBU102)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
501
504
502
503
505
505
505
505
506
507
508
506
506
506
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
501 A-6071-669-A LOADING ASSY (M)
502 3-088-371-01 BELT
503 4-974-725-11 SCREW (M1.7X2.5), P
504 4-674-137-11 SCREW (PTP2X5)
505 2-634-618-01 INSULATOR
506 3-087-599-01 INSULATOR SCREW
0 507 8-820-290-02 OPTICAL PICK-UP(KHM-310CAA/C2RP)
508 1-828-773-51 WIRE(FLAT TYPE)(24 CORE)
