Sony HCD-DZ3K - Chassis Section

66
HCD-DZ3K
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

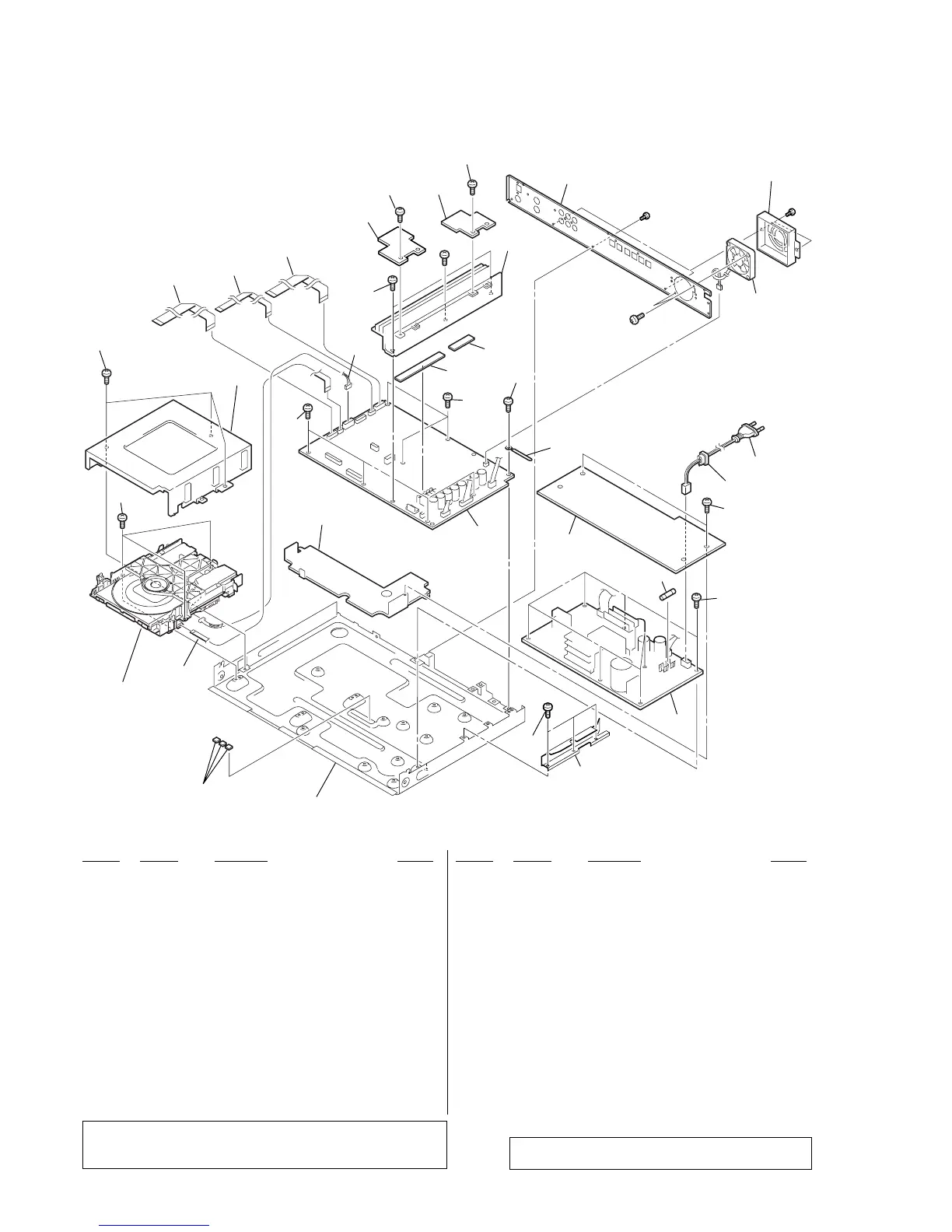

7-3. CHASSIS SECTION
101
113
114
102
104
103
101
103
101
106
105
101
101
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
F901
not
supplied
not
supplied
not
supplied
not
supplied
#1
#1
#1
#4
not supplied
not supplied
DVD mechanism
deck section
(CDM85-DVBU102)
#3
103
110
107
111
112
109
108
101
not
supplied
101 3-077-331-21 +BV3 (3-CR)
✩ 102 A-1191-800-A MAIN BOARD, COMPLETE (SP)
✩ 102 A-1191-808-A MAIN BOARD, COMPLETE (AUS)
✩ 102 A-1191-814-A MAIN BOARD, COMPLETE (E32, MX)
103 3-077-331-01 +BV3 (3-CR)
104 1-787-331-11 FAN, D.C.
0 105 1-827-226-41 CORD, POWER (MX)
0 105 1-829-259-11 CORD, POWER (AUS)
0 105 1-830-188-11 CORD, POWER (E32, SP)
106 3-703-244-00 BUSHING (2104), CORD (EXCEPT MX)
* 106 3-703-571-11 BUSHING (S) (4516), CORD (MX)
107 3-077-331-11 +BV3 (3-CR)
108 A-1146-091-A POWER BOARD, COMPLETE (MX)
108 A-1159-363-A POWER BOARD, COMPLETE (E32)
108 A-1178-742-A POWER BOARD, COMPLETE (SP, AUS)
109 1-828-292-11 WIRE(FLAT TYPE)(5 CORE)
110 1-828-332-11 WIRE(FLAT TYPE)(13 CORE)
111 1-828-300-11 WIRE(FLAT TYPE)(7 CORE)
112 1-828-330-11 WIRE(FLAT TYPE)(13 CORE)
113 2-597-972-21 SHEET, RADIATION
114 2-597-972-11 SHEET, RADIATION
0 F901 1-532-325-00 FUSE, TIME-LAG (T6.3A/250V) (SP, AUS)
0 F901 1-532-749-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(8A/125V) (MX)
0 F901 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG)
(T8A/250V) (E32)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#4 7-685-881-09 SCREW +BVTT 4X8 (S)
✩ New part of EEP ROM (IC1103) on the MAIN board cannot be used.
Therefore, if the mounted MAIN board (A-1191-800-A, etc.) is replaced,
exchange new EEP ROM (IC1103) with that used before the replacement.
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
