HCD-DZ3K
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

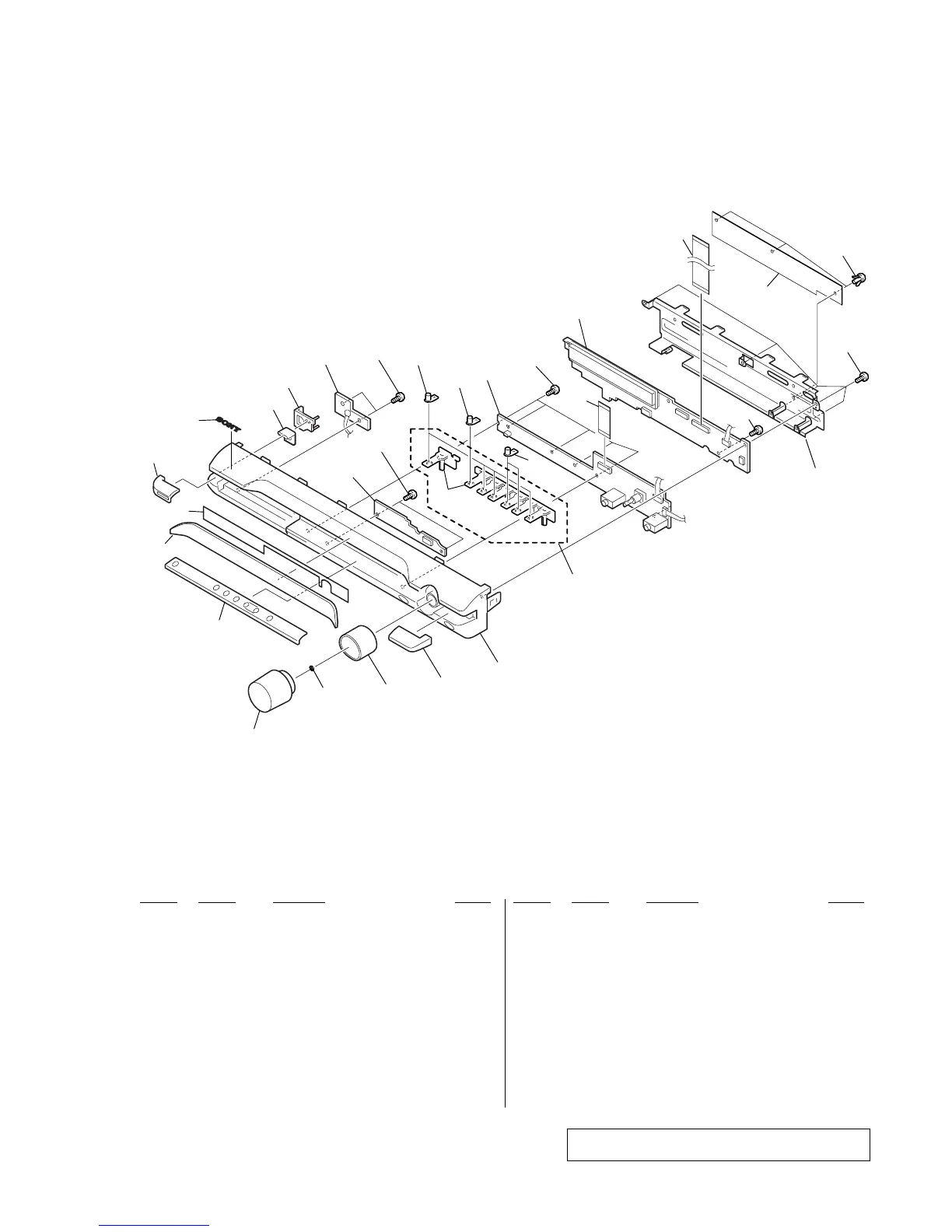

7-2. FRONT PANEL SECTION
61
61
61
64
63
51
54
55
52
53
60
not
supplied
not
supplied
not
supplied
including
S800
56
57
59
67
58
not
supplied
61
61
66
65
not
supplied
71
68
69
70
62
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
51 2-652-983-01 KNOB (VOL)
52 2-652-982-01 RING (VOL)
53 2-652-981-01 ORNAMENT (RIGHT)
54 2-652-980-01 ORNAMENT (PLAY)
55 2-652-984-01 WINDOW, INDICATION
56 2-652-979-01 ORNAMENT (POWER)
57 2-661-952-01 SHEET (WINDOW), ADHESIVE
58 3-943-995-31 EMBLEM (NO.5), SONY
59 2-652-977-01 BUTTON BASE (POWER)
60 2-652-971-63 PANEL, FRONT
61 3-087-053-01 +BVTP2.6 (3CR)
62 2-652-978-01 BUTTON BASE (PLAY)
63 A-1177-703-A JACK BOARD, COMPLETE
64 A-1177-702-A FL BOARD, COMPLETE
65 1-828-384-11 WIRE(FLAT TYPE)(23 CORE)
66 1-828-325-11 WIRE(FLAT TYPE)(13 CORE)
67 2-652-973-01 CAP (POWER)
68 2-652-974-01 CAP (PLAY)
69 2-652-975-01 CAP (FUNC)
70 2-652-976-01 CAP (AMS)
71 3-531-576-01 RIVET
