Sony HCD-DZ3K - DC Fan, Tuner Unit; POWER Board

16
HCD-DZ3K

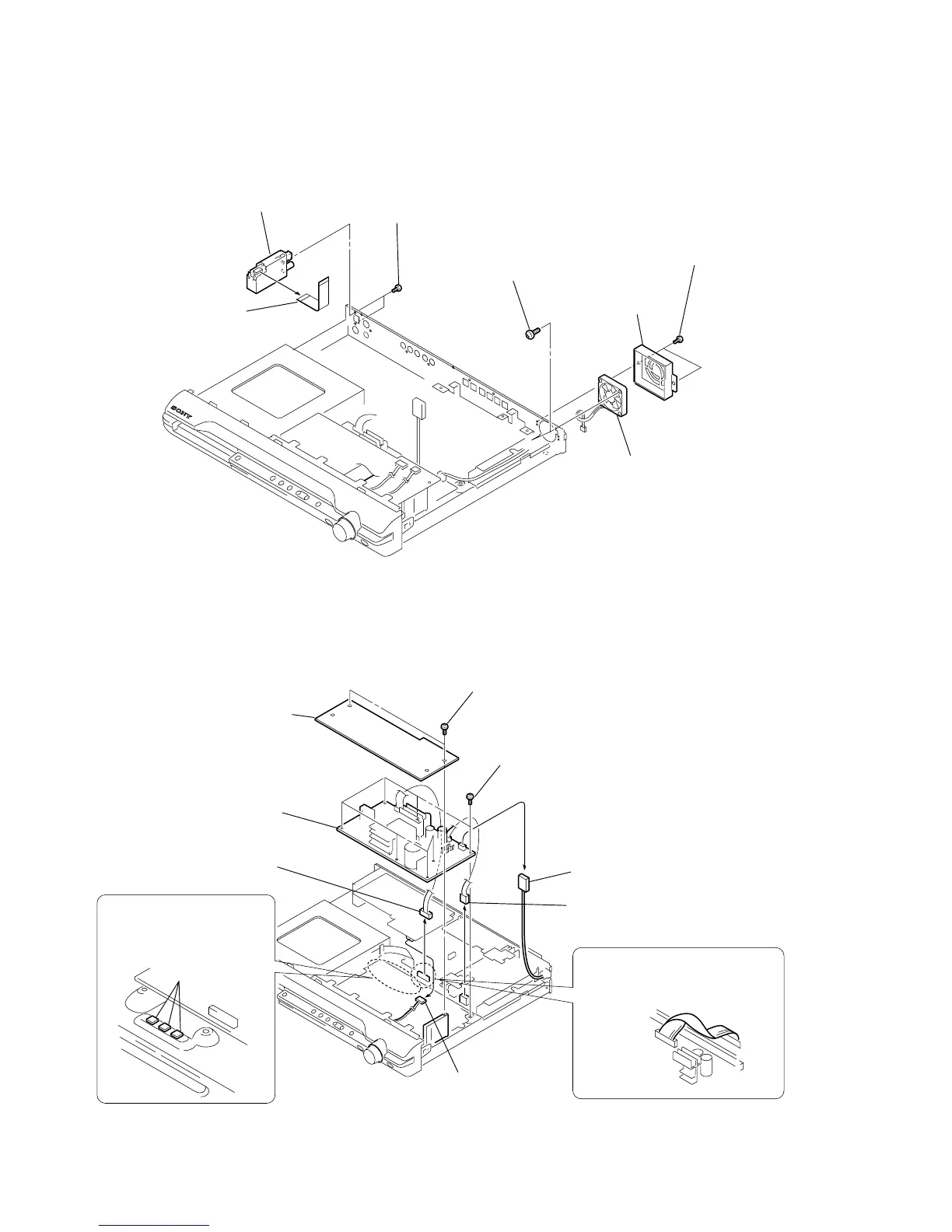

3-7. DC FAN, TUNER UNIT
7 DC fan
3 tuner unit
4 two screws
(+BVTP 3
× 8)
5 cover (fan)
1 two screws (+BVTT 3 × 6)
6 two screws
(+BVTT 4
× 8)
2 wire (flat type)
9core
3-8. POWER BOARD
7 seven screws
(+BV 3 × 8)
When re-assembling, attach
the heat radiation sheets on
the chassis, and then install
the POWER board.
radiation sheets
4 connector
(CN901)
5 connector
(CN3002)
6 connector
(CN515)
8 POWER board
1 connector
(CN312)
2 two screws
(+BVTP 3 × 8)
3 cover (top)
After twist the harness once,
install the connector.
POWER board
MAIN board
