7
HCD-DZ3K

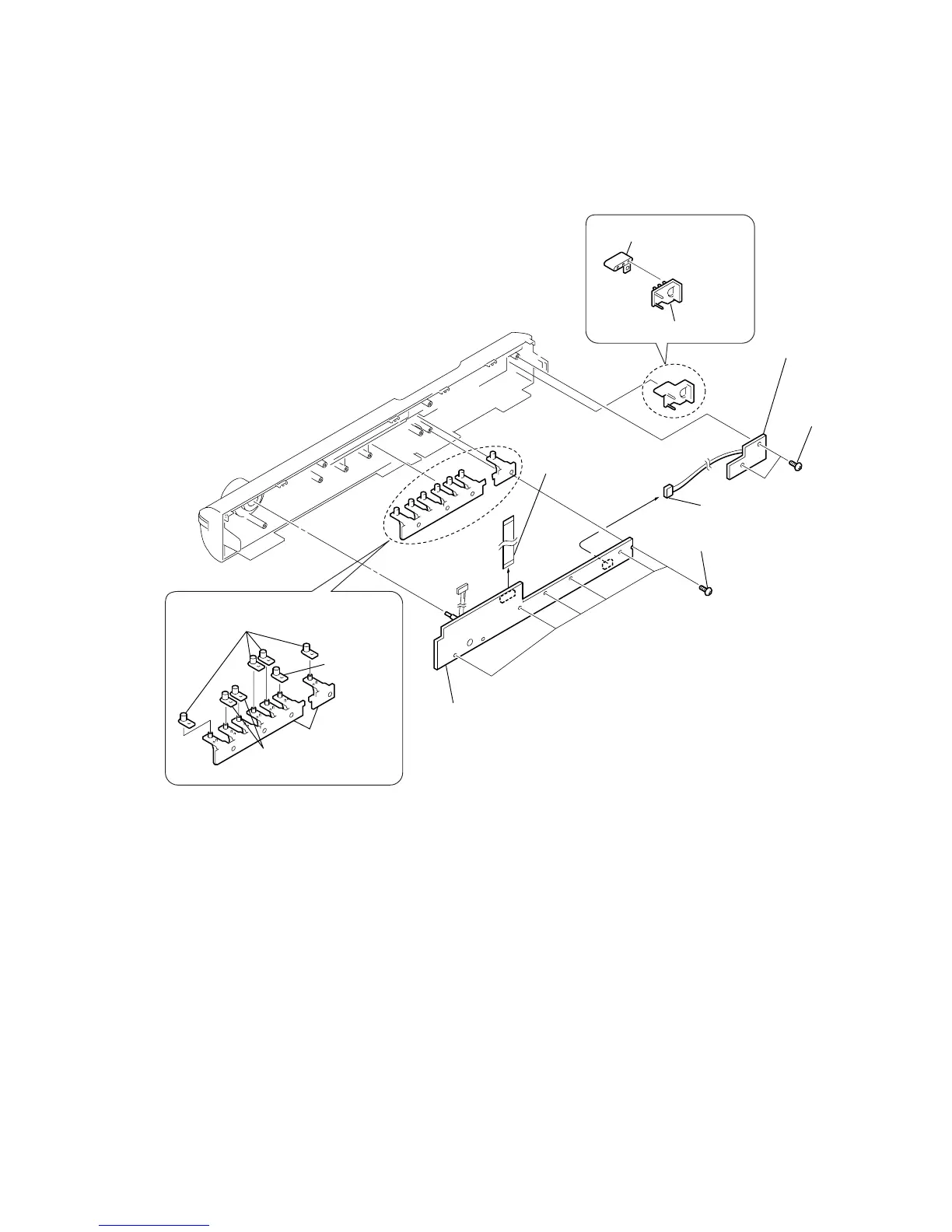

JACK board
CAP (POWER)
wire (flat type)
13core (CNP802)
connector (CNP801)
six screws (+BVTP 2.6)
two screws
(+BVTP 2.6)
BUTTON BASE (POWER)
SW board
BUTTON BASE
(PLAY)
CAP (PLAY)
CAP (AMS)
CAP (FUNC)
Precaution when replacing the CAP
Please apply the adhesive agent to the BUTTON BASE (PLAY) when replacing the CAP (PLAY) or CAP (FUNC) or CAP (AMS).
Please apply the adhesive agent to the BUTTON BASE (POWER) when replacing the CAP (POWER).
