HCD-GP7
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-249-045-01 SPRING-T, CASSETTE
52 X-4955-862-1 LID ASSY, CASSETTE
53 4-247-372-01 HOLDER,CASSETTE
54 4-238-631-01 TAPE SPRING
55 4-247-361-01 COVER, DISPLAY
56 4-247-374-11 WINDOW,DISPLAY
57 4-247-366-11 CABINET,FRONT
58 4-247-376-01 POWER,INDICATER
59 4-247-370-11 BUTTON,POWER
60 4-247-368-11 BUTTON,FUNCTION
61 4-247-358-01 CAP, CD
62 4-247-359-01 CAP, TUNING
63 4-249-019-01 KNOB,VOLUME
64 4-247-360-11 COVER, RING
65 1-689-613-11 HP BOARD
66 4-247-369-11 BUTTON,OPEN/CLOSE
67 4-247-371-11 BUTTON,CD
68 4-231-841-01 SPRING (HEART CAM-B)
69 4-231-825-01 CAM (B), HEART
70 4-224-104-41 DAMPER
71 4-247-752-01 RUBBER, FOOT
72 4-249-020-01 RING,VOLUME
73 1-796-351-51 MECHANISM, SIGNAL CASSETTE
74 A-4747-951-A TC BOARD, COMPLETE
75 1-773-114-11 WIRE (FLAT TYPE)(19 CORE)
76 4-247-357-11 CAP, AUX
77 A-4747-952-A PANEL BOARD, COMPLETE
78 4-249-984-01 FILTER, FL TUBE
79 4-917-583-71 BRACKET, YOKE
80 1-689-608-11 VOL BOARD
81 4-249-823-01 HOLDER, LED
82 4-249-151-01 HOLDER (FL TUBE)
83 1-773-038-11 WIRE (FLAT TYPE)(17 CORE)
84 1-824-335-11 WIRE (FLAT TYPE)(8 CORE)
FL801 1-518-909-11 INDICATOR TUBE, FLUORESCENT
#3 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
#7 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#8 7-685-533-19 SCREW +BTP 2.6X6

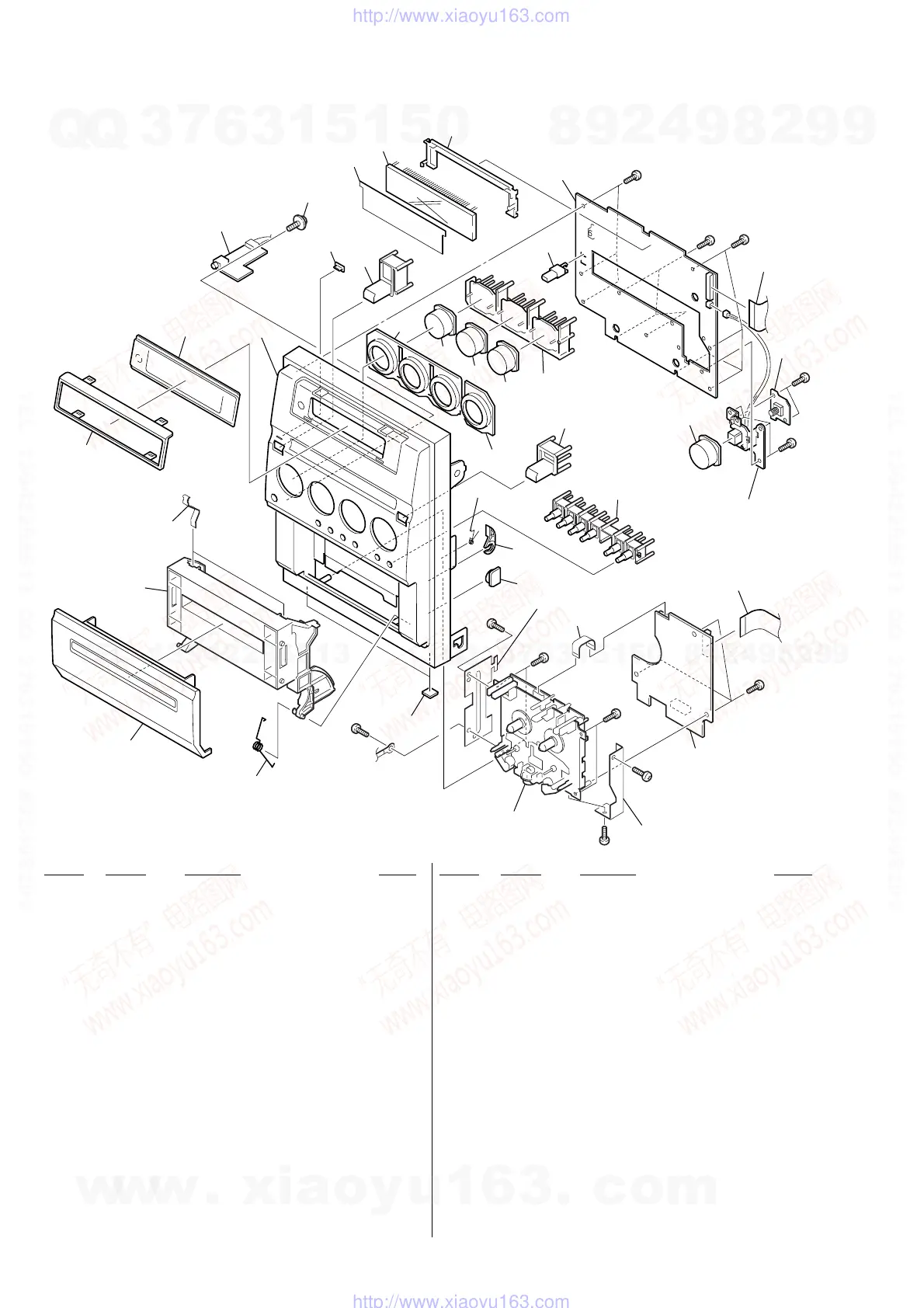

8-2. Front Panel Section
51
52
53
54
55
56
57
58
59
76
61
62
63
64
65
FL801
66
67
68
69
70
71
72
73
74
75
84
60
77
81
80
83
82
78
79
not supplied
not supplied
not supplied
#
#7
#8
#7
#7
#7
#3
#3
#8
#8
#3
#3
