Sony HCD-GP7 - TC Section Diagrams

3030
HCD-GP7

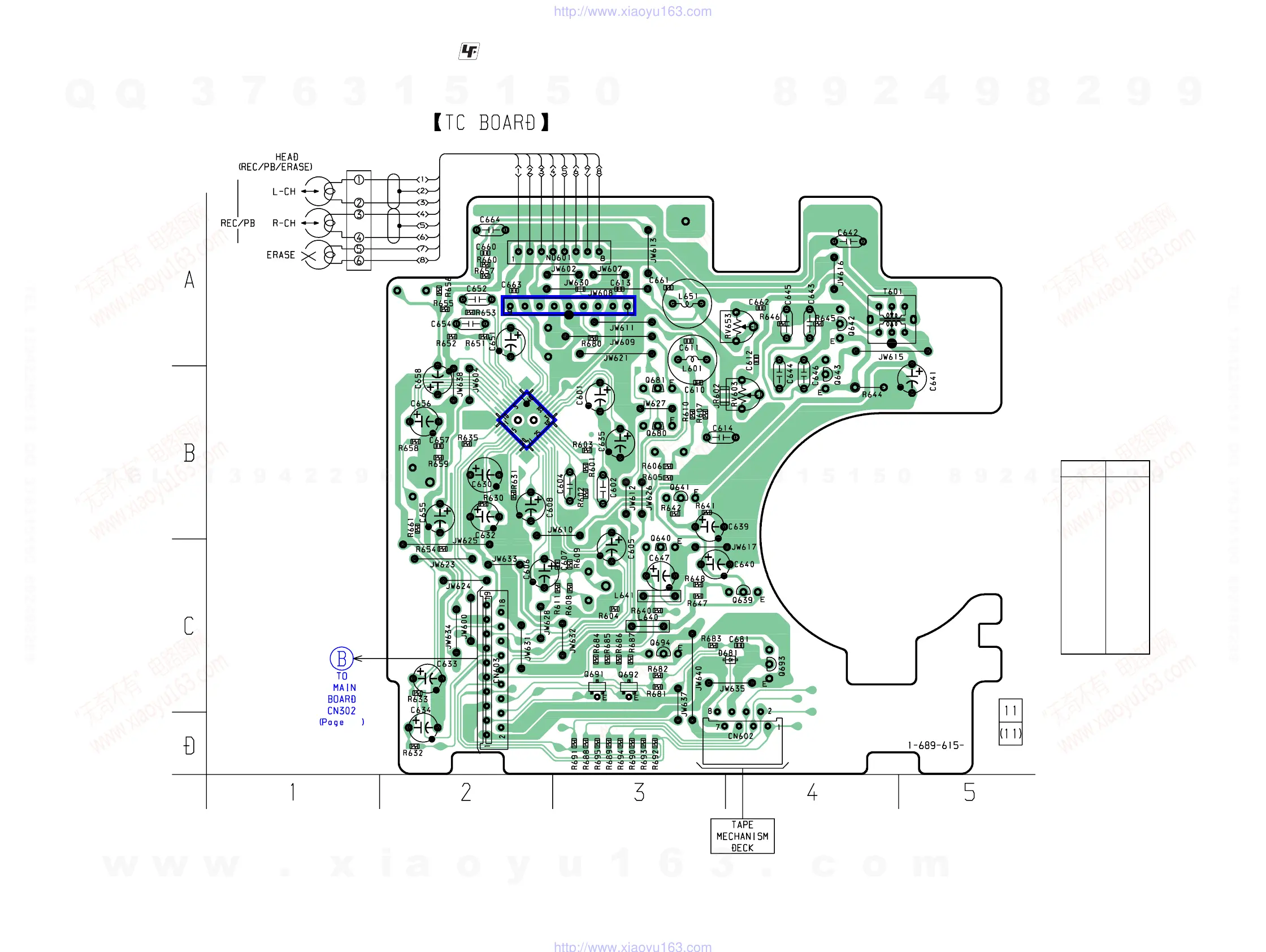

7-4. Printed Wiring Board — TC Section — • See page 23 for Circuit Boards Location.
IC602
IC601
32
Ref. No. Location
D681 C-4
IC601 B-2
IC602 A-2
Q639 C-4
Q640 B-3
Q641 B-3
Q642 A-4
Q643 B-4
Q680 B-3
Q681 B-3
Q691 C-3
Q692 C-3
Q693 C-4
Q694 C-3
• Semiconductor
Location
• : Uses unleaded solder.
