Sony HCD-GP7 - Top Case, Main Board, Back Panel Assy Disassembly

8
HCD-GP7
Note: Follow the disassembly procedure in the numerical order given.

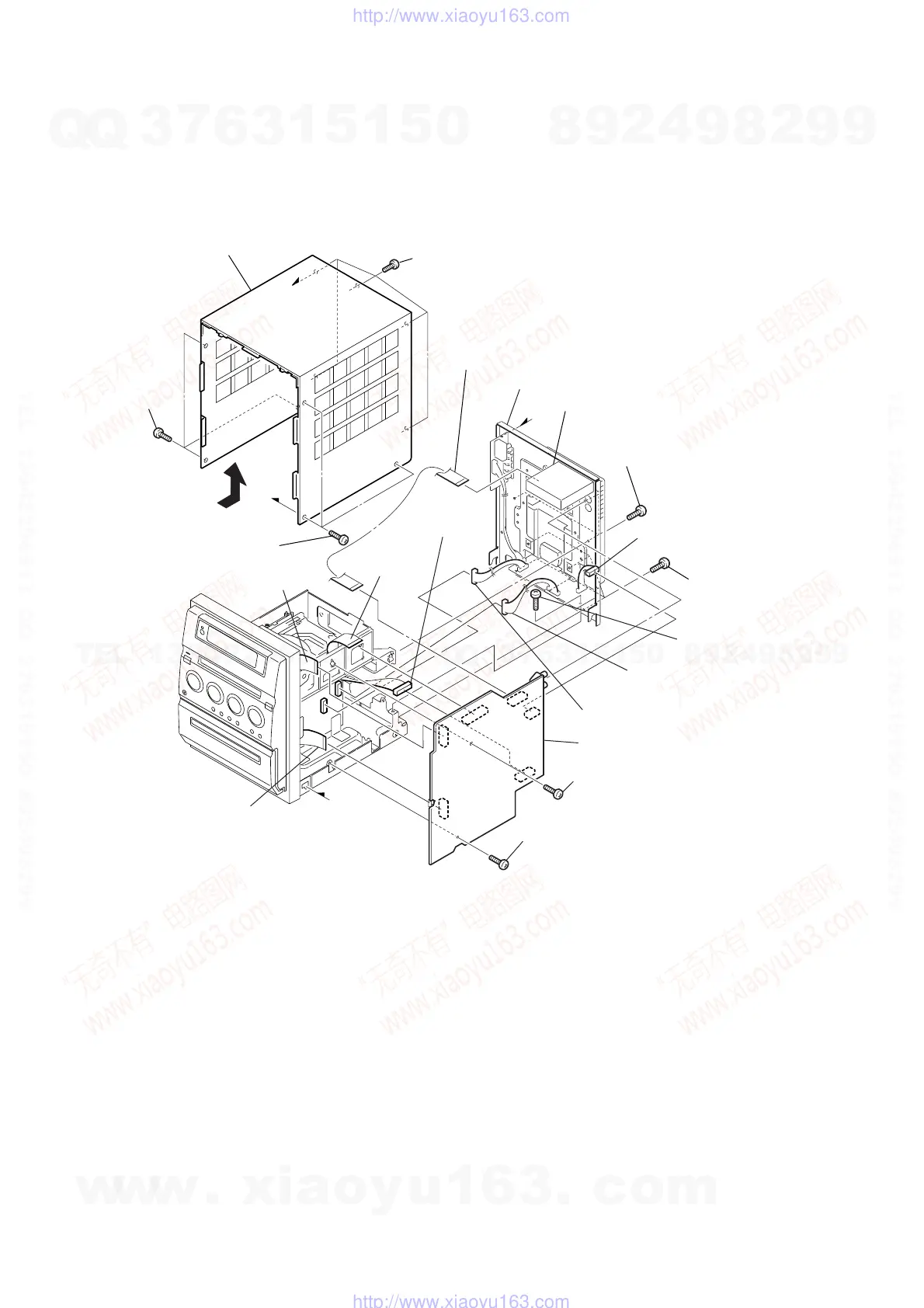

3-1. Top Case, MAIN Board, Back Panel Assy
a
a
b
b
4 top case
qh MAIN board
1 three s crews
(+BVTP 3
× 10)
2 three s crews
(+BVTP 3
× 10)
3 five s crews
(+BVTT 3
× 8)
8 w ire (flat type)
11p
tuner (FM/AM)
qj connector (CN962)
qa connector (CN401)
qs connector
(CN306)
qf connector
(CN304)
qd connector (CN302)
qk connector (CN972)
qg connector (CN303)
5 three s crews
(+BVTP 3
× 10)
7 s crew
(+BVTP 3
× 10)
6 five s crews
(+BVTT 3
× 8)
ql back panel
9 s crew
(+BVTP 3
× 10)
0 s crew
(+BVTP 3
× 10)
