49
HCD-GP7
101 4-900-386-01 SCREW
0102 1-769-744-52 CORD, POWER
104 1-689-611-11 SUB-POWER BOARD
105 3-970-608-11 SUMITITE (B3), +BV
106 4-247-752-01 RUBBER, FOOT
108 3-703-244-00 BUSHING (2104), CORD
0F901 1-533-465-11 FUSE, GLASS TUBE (DIA. 5)(T1AL/250V)
0F904 1-533-468-11 FUSE, GLASS TUBE (DIA. 5)(T2AL/250V)
0T901 1-443-037-11 POWER TRANSFORMER
#1 7-685-872-01 SCREW +BVTT 3X8
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

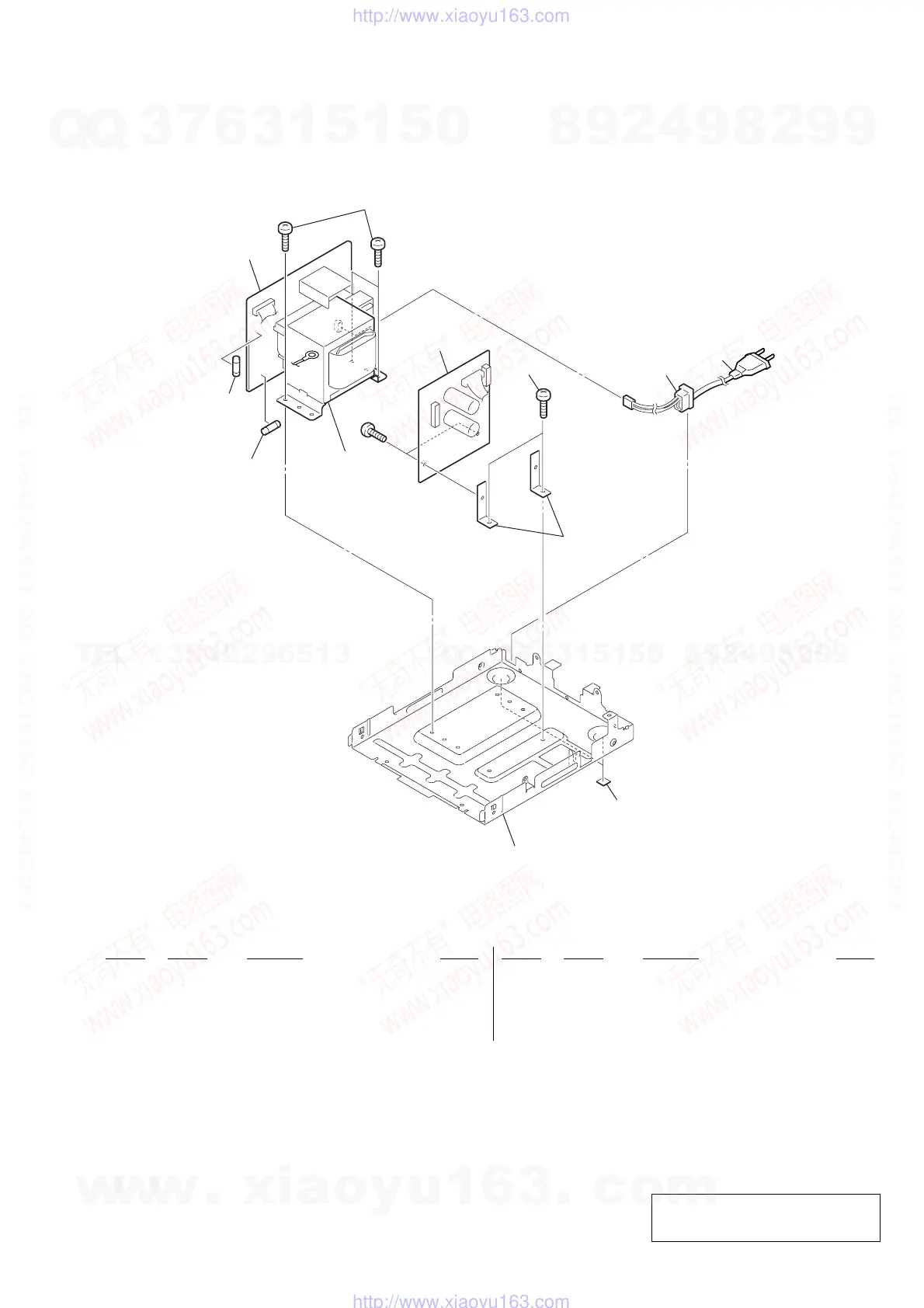

8-3. Chassis Section
not
supplied
T901
#1
F901
F904
not supplied
107
101
104
105
108
106
102
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ver 1.1 2003.11
