HCD-GP7
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 1-674-336-12 LOADING BOARD
152 4-925-315-31 DAMPER
153 4-224-894-22 TRAY (CDM55D)
154 4-220-233-01 CAM (CDM55)
155 4-221-815-11 ROLLER
156 4-220-237-01 GEAR (A)
157 4-220-234-01 PULLEY (LDG)
158 4-221-816-01 BELT (CDM55)
159 4-227-598-01 SPACER (55)
160 4-220-238-01 GEAR (B)
161 4-220-229-02 LEVER (SW)
162 4-220-239-01 SPRING, TORSION
163 A-4731-446-A CD BOARD, COMPLETE
164 A-473-508-2A MAGNET
165 4-231-777-02 SHEET (KH2)
166 4-244-962-01 HOLDER (C213)
167 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
168 4-229-358-01 SHAFT (BU21)
169 4-227-549-11 INSULATOR
170 4-244-959-01 SPRING (T213), COMPRESSION
171 4-231-151-01 STOPPER (BU)
172 4-218-253-31 SCREW (M2.6), +BTTP
173 1-782-817-11 WIRE (FLAT TYPE)(16 CORE)
M901 A-4735-337-A MOTOR (LD) ASSY (LOADING)
#9 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
#10 7-621-255-32 SCREW +P 2X5

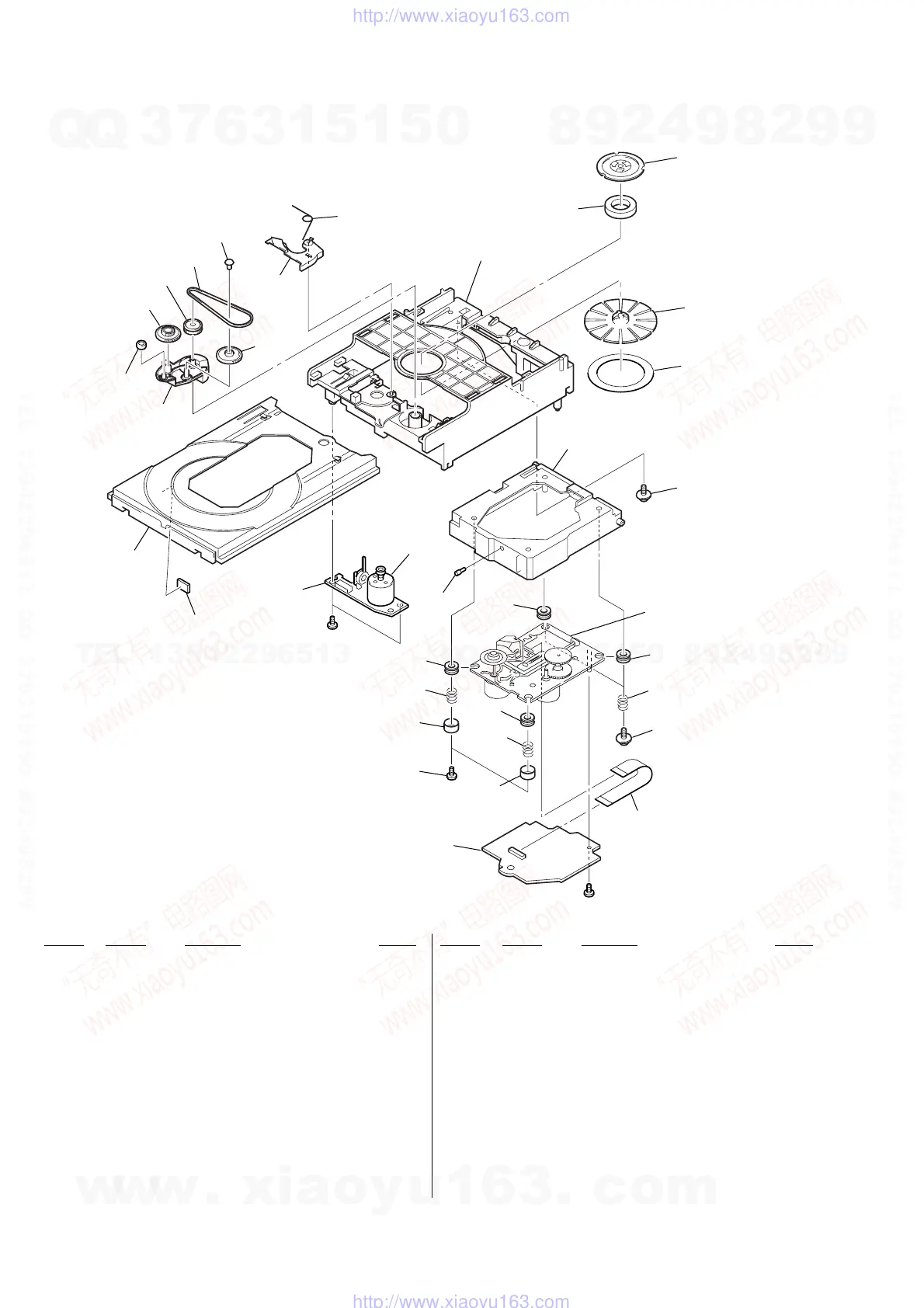

8-4. CD Mechanism Section
M901
#9
#10
151
152
153
154
155
156
157
158
160
159
161
162
166
167
164
165
168
169
171
170
170
172
163
170
167
173
171
169
169
169
not supplie
not supplied
not supplied
optical pick-up
