Sony HCD-GP7 - Printed Wiring Board - POWER AMP Section

3636
HCD-GP7

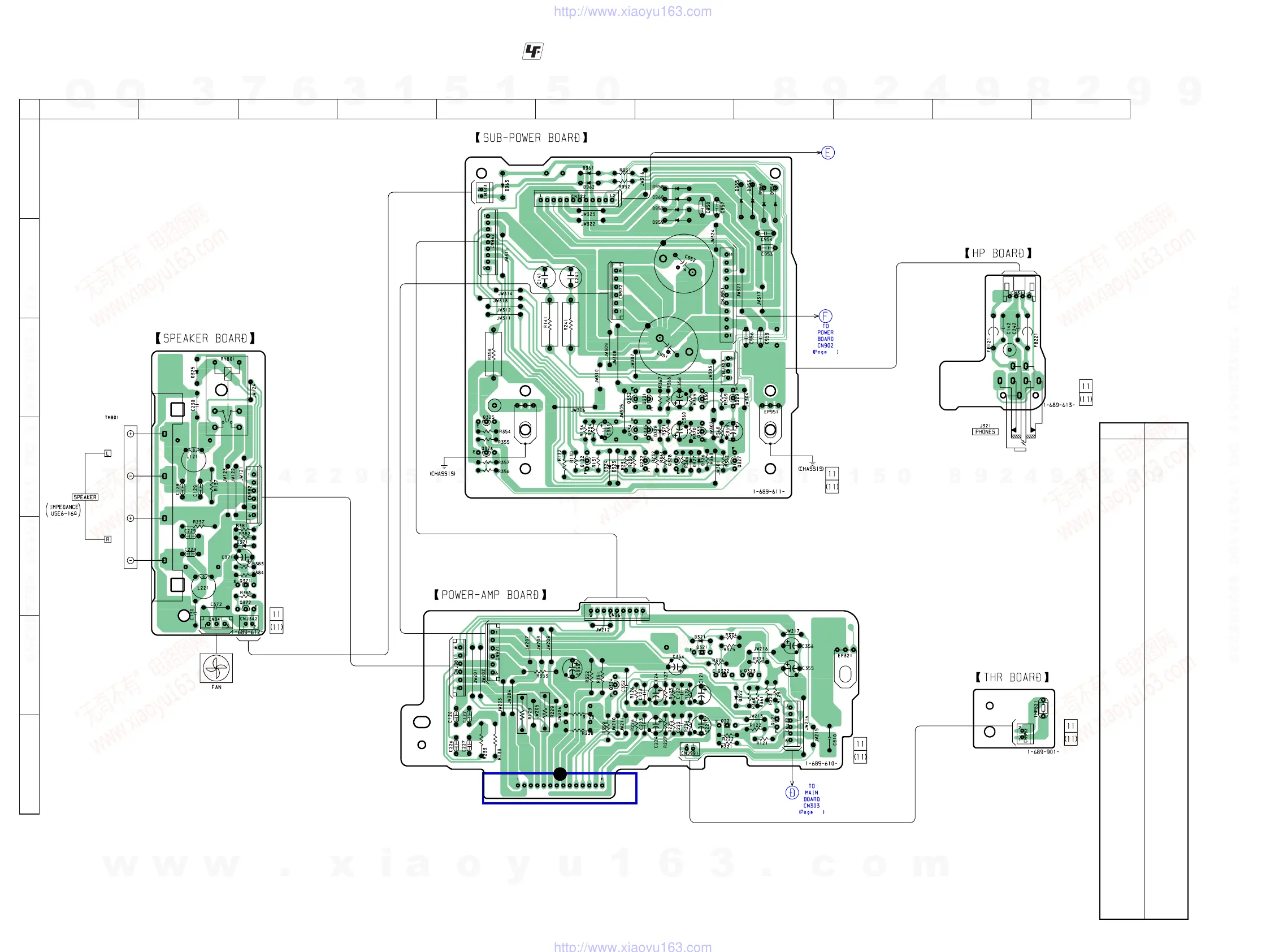

7-10. Printed Wiring Board — POWER AMP Section — • See page 23 for Circuit Boards Location.
IC321
32
TO
MAIN
BOARD
CNJ304
(Page 32)
38
12
A
B
C
D
E
F
G
34567891011
Ref. No. Location
D321 F-7
D322 F-8
D323 D-6
D324 D-6
D325 C-2
D326 D-7
D327 D-7
D328 D-7
D371 E-2
D953 A-8
D954 A-8
D955 A-8
D956 A-8
D957 A-7
D958 A-7
D959 A-7
D960 A-7
D961 A-6
D962 A-6
D963 A-5
IC321 G-6
Q121 G-8
Q122 D-6
Q221 G-7
Q222 D-7
Q321 F-7
Q322 F-7
Q323 F-8
Q324 F-6
Q325 C-5
Q326 D-5
Q327 D-8
Q328 D-7
Q329 C-8
Q330 C-7
Q331 C-7
Q332 C-6
Q333 D-7
Q334 D-6
Q335 D-7
Q371 E-2
Q372 E-2
• Semiconductor
Location
• : Uses unleaded solder.
