10
HCD-GTR6/GTR6B/GTR7/GTR8/GTR8B

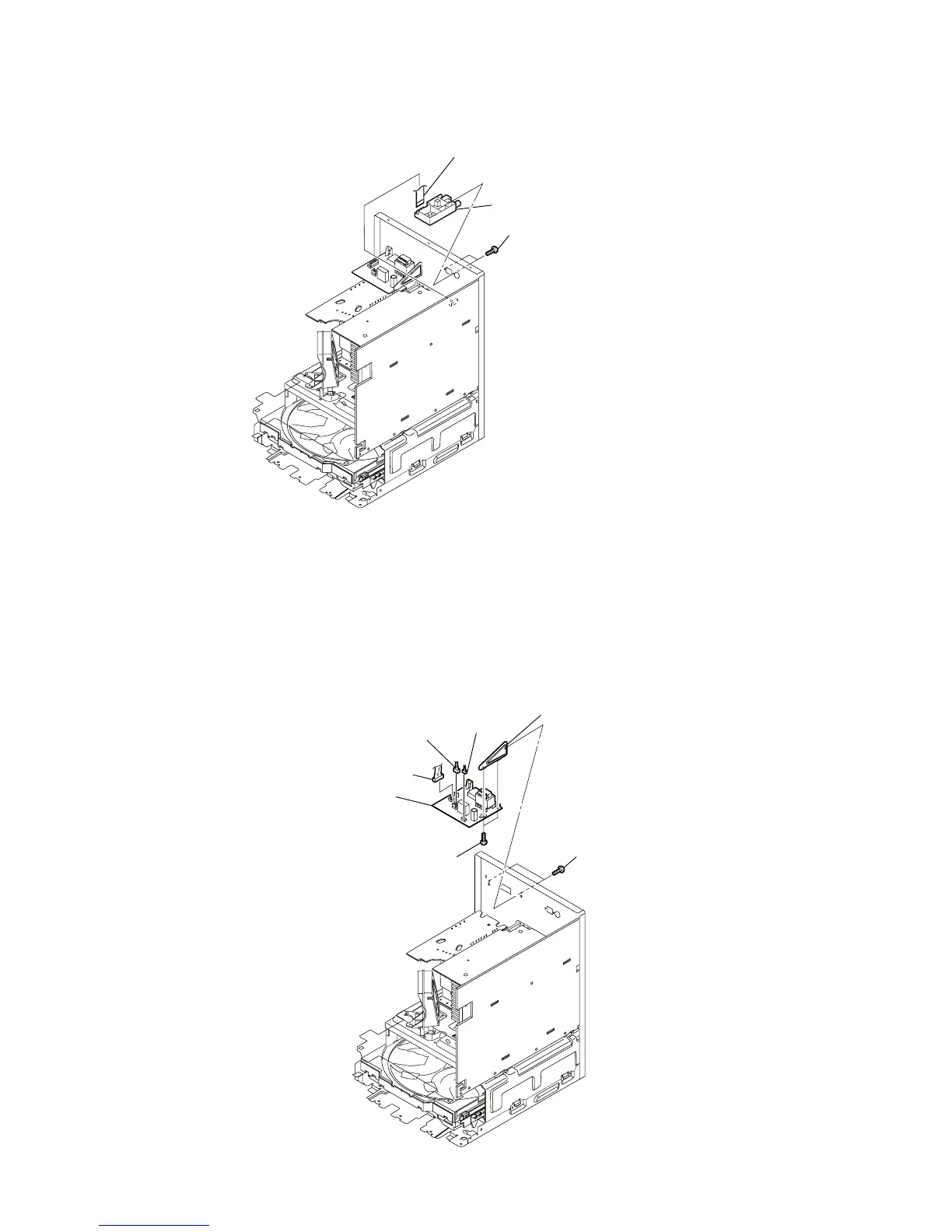

1-7. TUNER PACK
1-8. SUBTRANS BOARD
tuner pack
wire (flat type) (5 core)
(CN1)
two screws
(+BVTT 3 x 8)
SUBTRANS board
CN1201 (4P), CN1202 (2P)
CN1200 (2P)
CN1203 (4P)
Bracket (Subtrans)
two screws
(+BVTP 3 x 8)
two screws
(+BVTP 3 x 8)
