Sony HCD-GTR7 - Loading Panel; Front Panel Section

8
HCD-GTR6/GTR6B/GTR7/GTR8/GTR8B

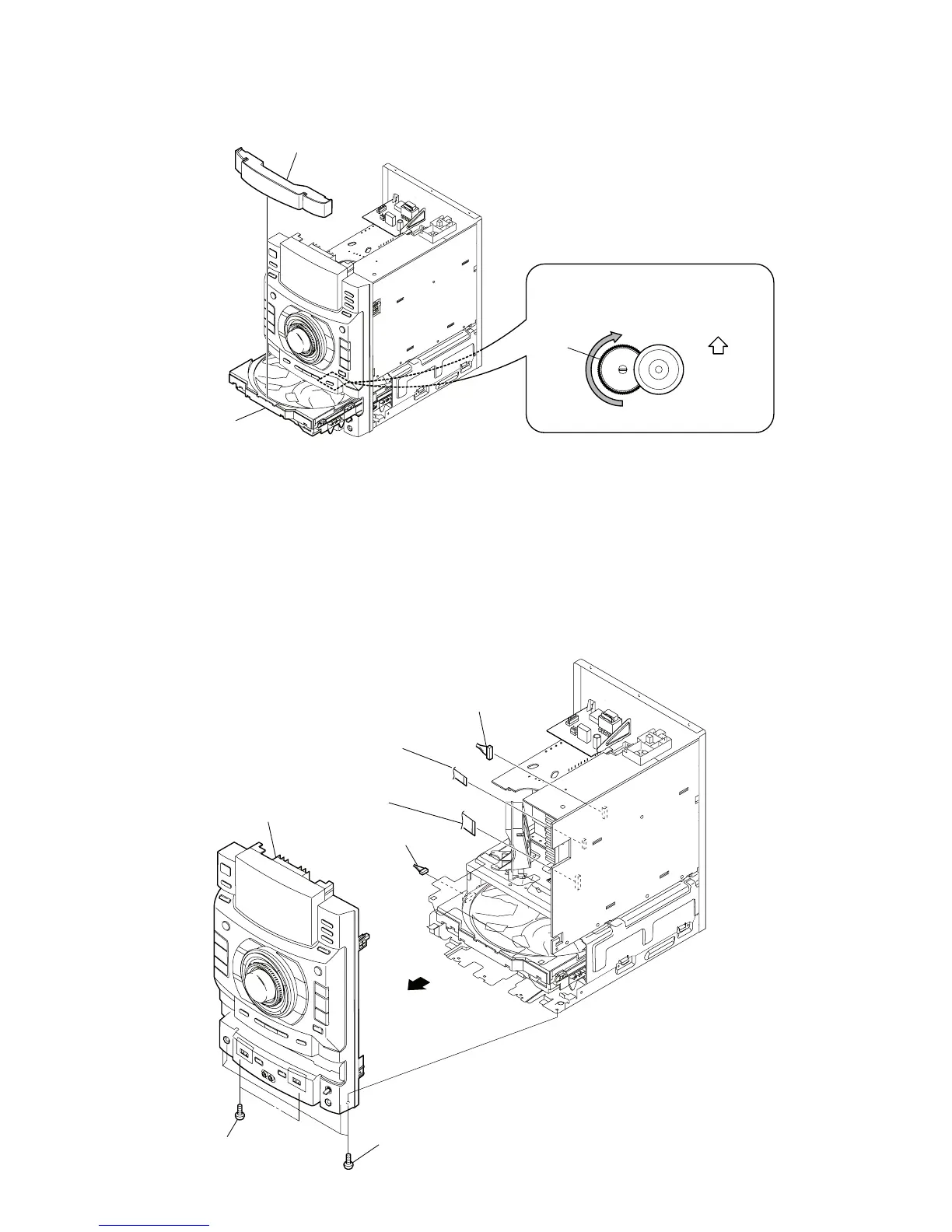

1-3. LOADING PANEL
1-4. FRONT PANEL SECTION

loading panel

Pull-out the disc tray.

Turn the gear to the direction of the arrow.
gear
chassis side
CD mechanism deck (CDM74KF)
By using (-) screw driver

wire (flat type) (11 core)
(CN151)

wire (flat type) (23 core)
(CN150)
CN1501 (10P)

front panel section


four screws
(+BVTP 3 x 8)

two screws
(+BVTP 3 x 8)

CN400 (13P)

