Sony HCD-GTR7 - SECTION 6 EXPLODED VIEWS; Exploded Views of Major Sections

66
HCD-GTR6/GTR6B/GTR7/GTR8/GTR8B
SECTION 6
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Accessories are given in the last of this
parts list.
• Abbreviation
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E51 : Chilean and Peruvian model
AR : Argentina model
AUS : Australian model
MX : Mexican model

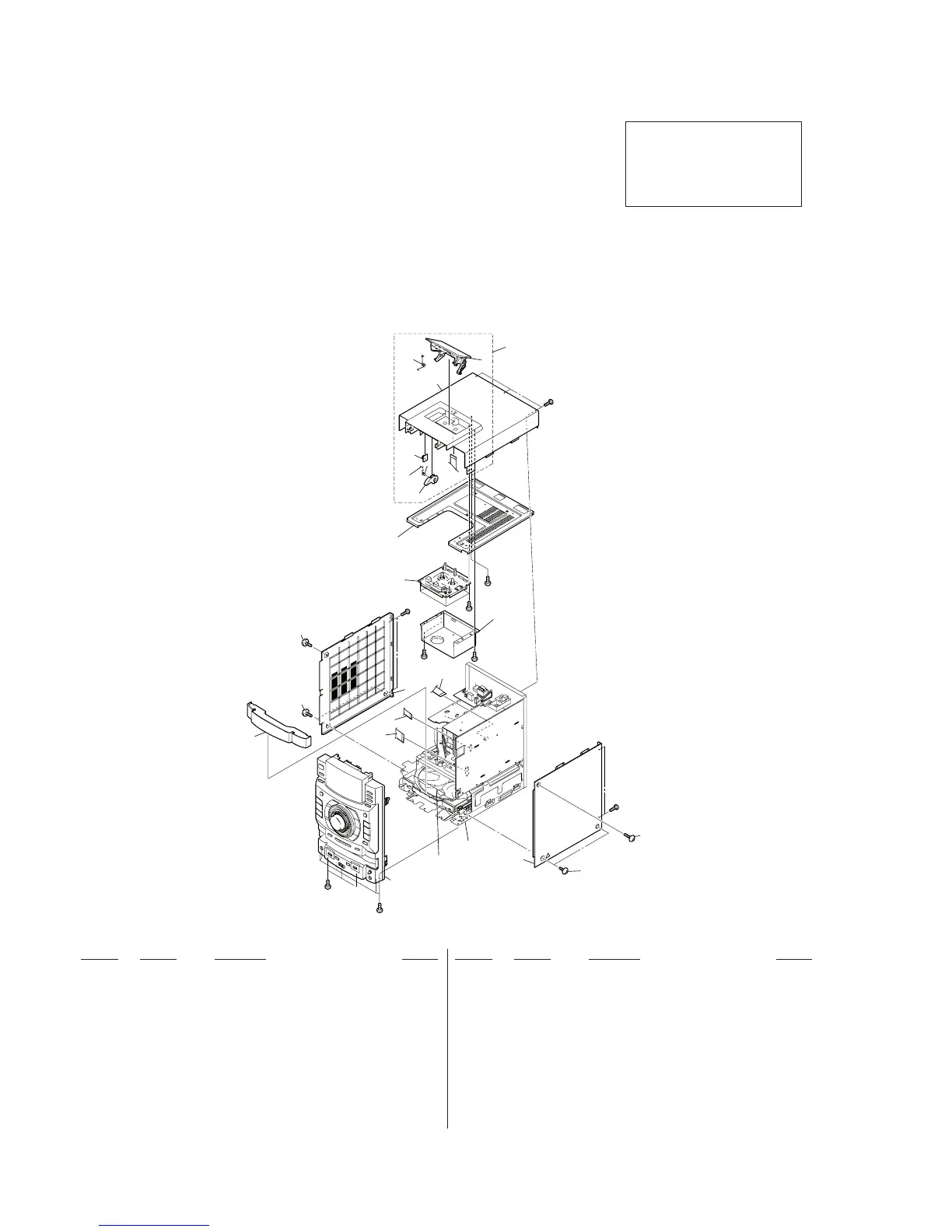

6-1. MAIN SECTION
1 3-363-099-32 SCREW (CASE 3 TP2)
2 3-363-099-02 SCREW (CASE 3 TP2)
3 4-126-672-01 HOLDER (TC) (GTR6B/GTR8B)
4 4-126-671-01 CASE,TOP (GTR6B/GTR8B)
4 4-132-615-01 CASE,TOP (GTR6/GTR7/GTR8)
5 4-126-663-11 PANEL, LOADING (GTR8)
5 4-126-663-01 PANEL, LOADING (GTR8B)
5 4-126-663-31 PANEL, LOADING (GTR7)
5 4-126-663-41 PANEL, LOADING (GTR6B)
5 4-126-663-51 PANEL, LOADING (GTR6)
6 1-840-020-11 MECHA DECK (GTR6B/ GTR8B)
7 4-126-673-01 PANEL, SIDE L (P)
8 4-126-674-01 PANEL, SIDE R (P)
9 4-126-693-01 SPRING (TC) (GTR6B/GTR8B)
10 4-224-104-11 DAMPER (GTR6B/GTR8B)
11 4-231-824-01 CAM (A), HEART (GTR6B/GTR8B)
12 4-231-836-01 SPRING (HEART CAM-A) (GTR6B/GTR8B)
13 1-827-995-11 WIRE (FLAT TYPE) (7 CORE) (GTR6B/GTR8B)
14 1-827-720-11 WIRE (FLAT TYPE) (11 CORE)
15 1-829-023-11 WIRE (FLAT TYPE) (23 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE 2 IT-3
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
#1
7
15
2
1
#1
8
1
2
#1
4
3
9
6
#1
#1
front panel section (1)
chassis section
not
supplied
#1
#1
#1
#1
a
5
10
12
11
(TC CASE TOP only for
HCD-GTR6B/GTR8B)
not supplied
(Cover Dust Top)
not
supplied
13
14
a
The components identifi ed by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specifi ed.
