Sony HCD-GTR7 - DC Fan, Power Transformer (T1200); Main Board, Front Boars Section

11
HCD-GTR6/GTR6B/GTR7/GTR8/GTR8B

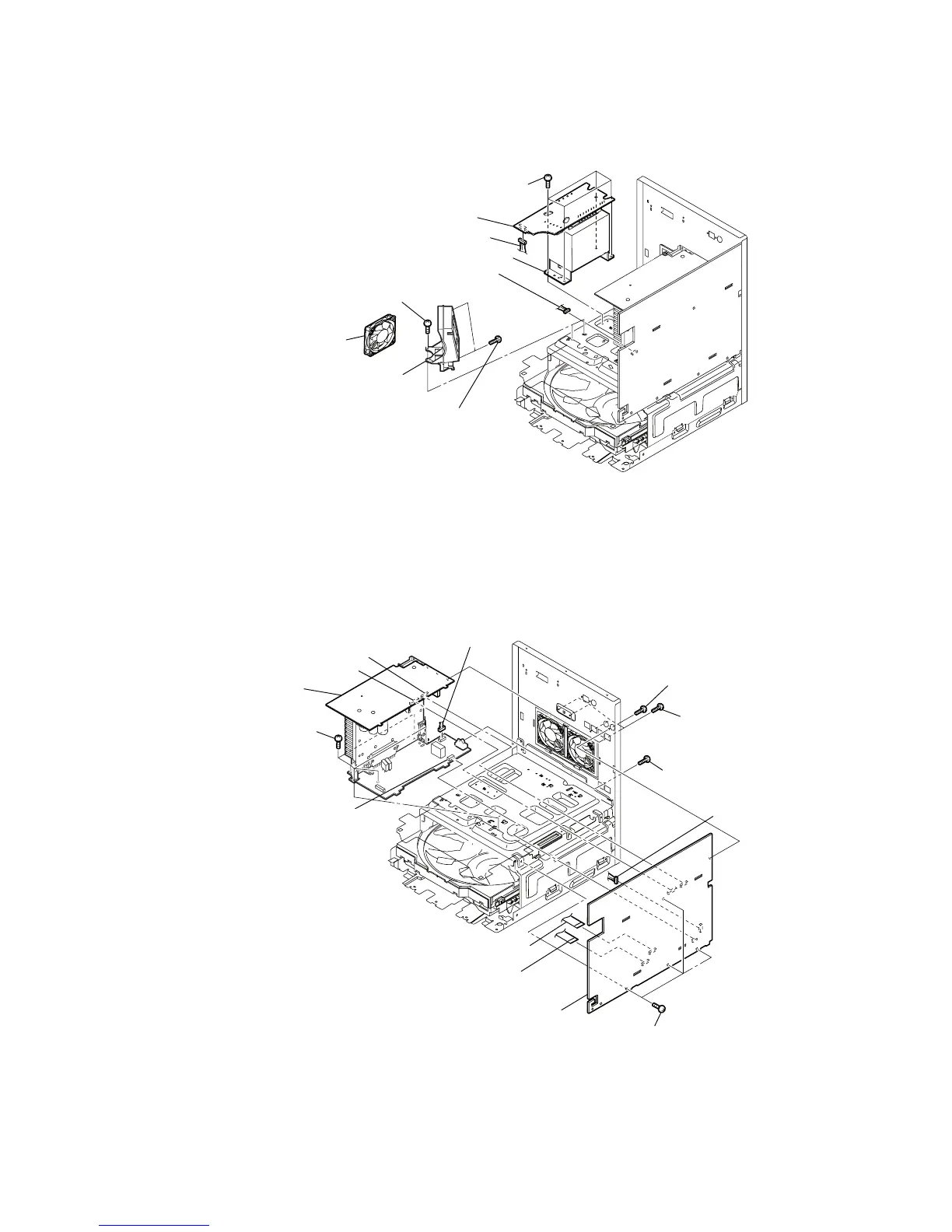

1-10. MAIN BOARD, FRONT BOARD SECTION
1-9. DC FAN, POWER TRANSFORMER (PT1250)

TRANS board

CN1250 (13P)

CN320 (3P)

power transformer (PT1250)

Bracket Fan

four screws
(+BVTT 4 x 8)

two screws
(+BVTP 3 x 8)

two screws
(+BVTP 3 x 10)

Fan, DC
RG
Main board
RB
wire (flat type) (13 core)
(CN110)
RT
wire (flat type) (23 core)
(CN500)

CN1303 (16P)

Front board section

CN1302 (11P)

CN801 (7P)

CN820 (3P)

one screw
(+BVTP 3 x 8)

one screw
(+BVTP 3 x 8)
RE
CN090 (9P)
R
four screws
(+BVTP 3 x 8)

four screws
(+BVTP 3 x 8)

four screws
(+BVTP 3 x 8)
