Sony HCD-GTR7 - CD Mechanism Section (2)

72
HCD-GTR6/GTR6B/GTR7/GTR8/GTR8B

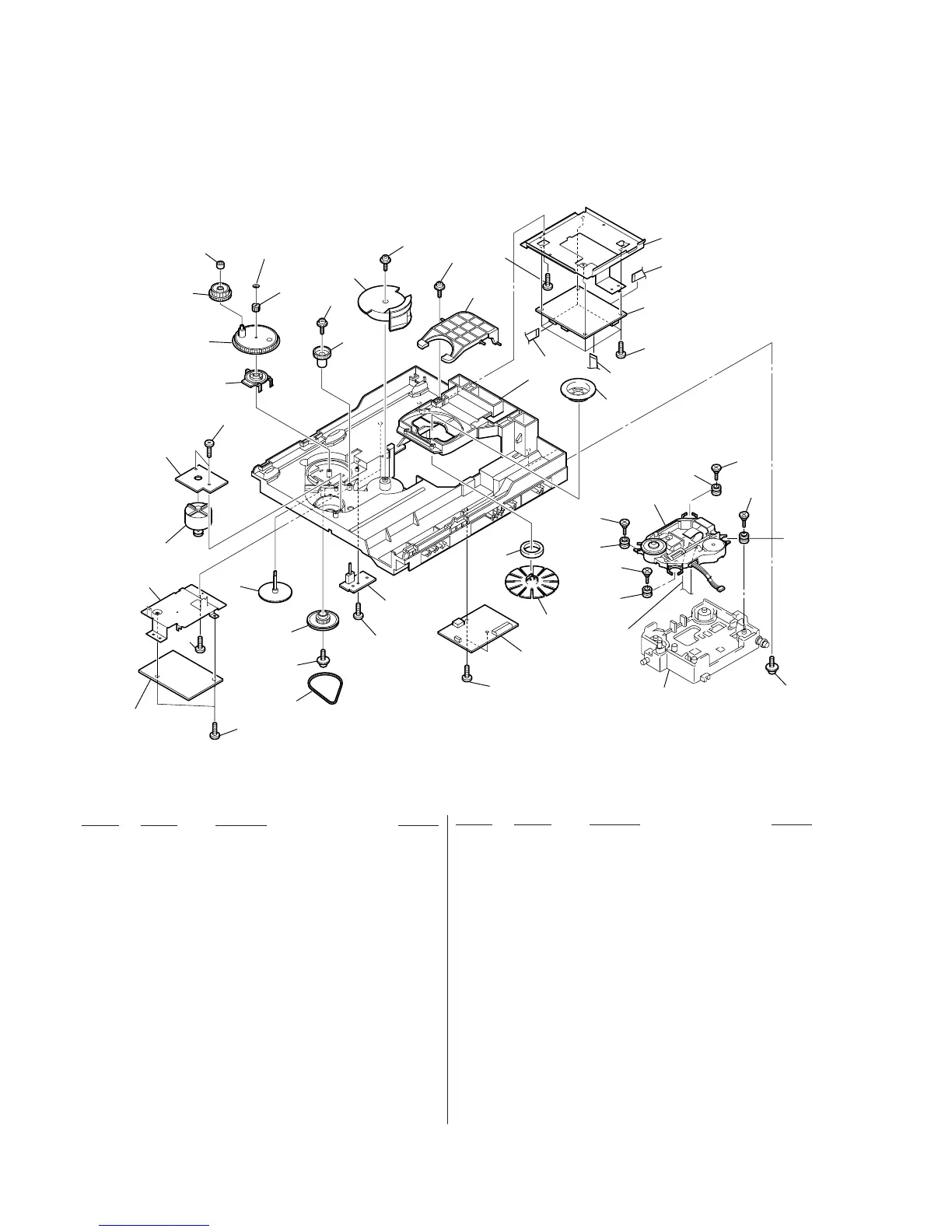

6-7. CD MECHANISM SECTION (2)
(CDM74KF-K6BD93UR-WOD)
301 4-218-253-52 SCREW (M2.6), +BTTP
302 4-244-034-01 BELT (LOADING) (MX)
302 4-244-034-11 BELT (LOADING)
303 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING
304 4-225-844-01 GEAR (LOADING A)
305 1-687-669-12 SW BOARD
306 4-224-613-11 GEAR (SHAFT)
307 1-687-134-12 MOTOR (TB) BOARD
308 4-244-108-01 GEAR, SWING
309 4-224-609-01 GEAR (LOADING C)
310 4-224-608-01 COLLAR, SWING
311 3-016-533-11 WASHER (FR), STOPPER
312 4-224-611-01 GEAR (LOADING B)
313 4-224-606-01 GEAR (RV)
314 4-243-818-01 GEAR (U/D)
315 2-541-918-01 LEVER (LIFTER (H))
316 4-243-817-22 CHASSIS (MX)
317 2-345-983-01 PULLEY B (310), CHUCKING
318 A-1653-554-A DMB19 BOARD, COMPLETE (EXCEPT MX)
318 A-1653-555-A DMB19 BOARD, COMPLETE (MX)
319 8-820-322-04 DEVICE, OPTICAL KHM-313CAB/C2RP
320 1-829-023-11 WIRE (FLAT TYPE) (23 CORE)
321 2-634-618-01 INSULATOR
322 3-087-599-01 INSULATOR SCREW
323 A-103-756-B DRIVE BOARD (EXCEPT MX)
324 1-828-310-11 WIRE (FLAT TYPE) (9 CORE)
325 1-828-252-11 WIRE (FLAT TYPE) (24 CORE)
326 1-828-302-11 WIRE (FLAT TYPE) (7 CORE)
M751 A-1108-966-A MOTOR ASSY, LOADING (EXCEPT MX)
M751 A-4737-553-A MOTOR ASSY, LOADING (MX)
RE701 1-477-680-12 ENCODER, ROTARY
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
301
323
301
301
305
302
303
304
306
307
308
309
310
311
312
313
314
315
317
316
303
303
303
M751
RE701
326
325
301
#1
#1
318
324
301
not supplied
not supplied
(HUB board)
not supplied
not
supplied
not supplied
321
321
321
321
322
322
322
322
303
319
320
not supplied
