Sony HCD-GTR7 - MIC Board, Usb Board, Micrv Board, Headphone Board; Display Board, STR Board, CD SW Board

9
HCD-GTR6/GTR6B/GTR7/GTR8/GTR8B

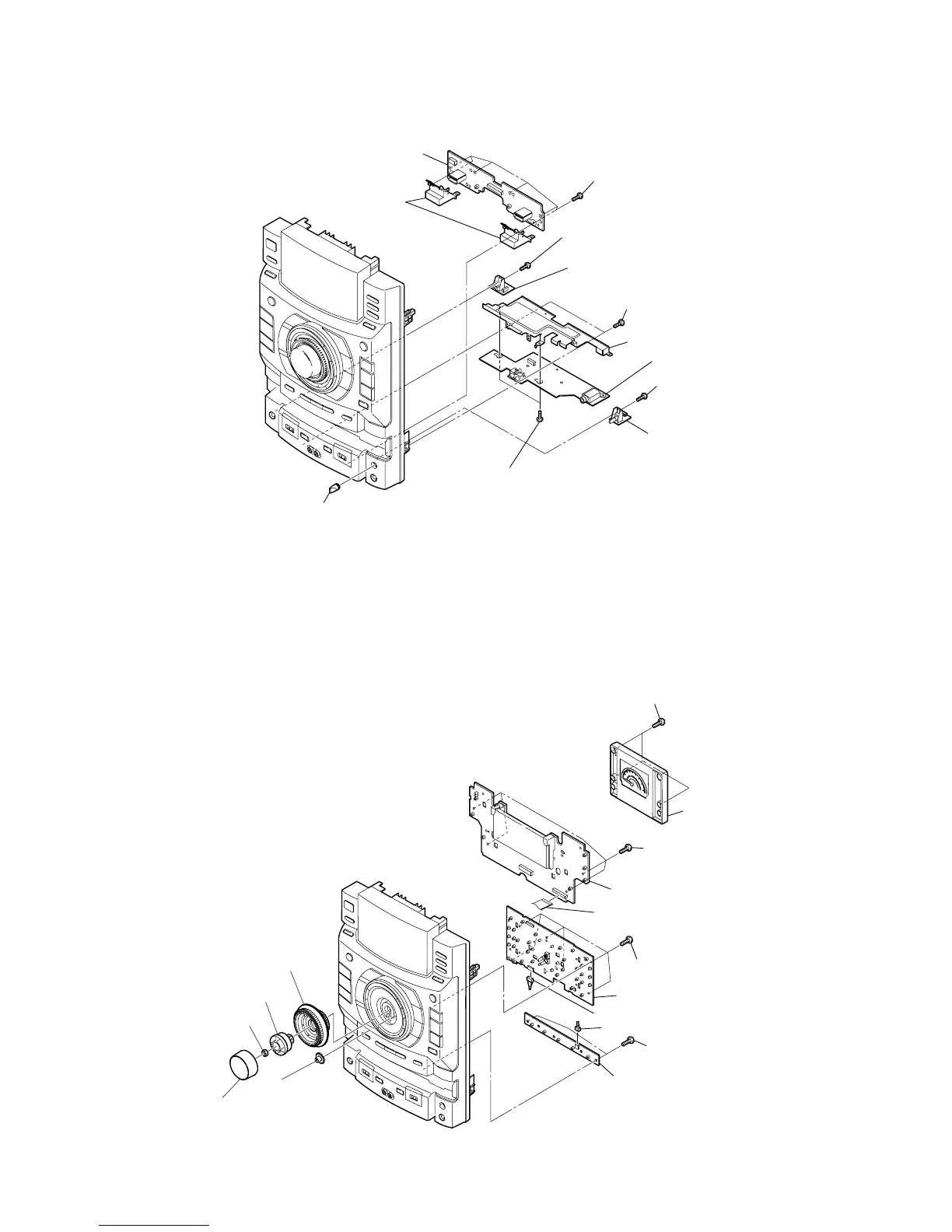

1-6. DISPLAY BOARD, STR BOARD, CD SW BOARD
1-5. MIC BOARD, USB BOARD, MICRV BOARD, HEADPHONE BOARD
R
knob (MIC)

six screws
(+BVTP 2.6 (3CR))

USB board

MIC board

one screw
(+BVTP 2.6 (3CR))

two screws
(+BVTP 2.6 (3CR))

Shield Plate (MIC)

one screws
(+BVTP 2.6 (3CR))

two screws
(+BVTP 2.6 (3CR))
RB MICRV board
 Headphone board
GROUND PLATE
(USB)

three screws
(+BVTP 2.6 (3CR))

four screws
(+BVTP 2.6 (3CR))
RB
six screws
(+BVTP 2.6 (3CR))
RG
two screws
(+BVTP 2.6 (3CR))

meter display assy

Display board

wire (flat type) (23 core)
(CN902)
RE
STR board
RH
CN901 (2P)
RT
CN903 (6P)
RI
CD SW board

knob (volume)

nut

holder (jog)

knob jog assy
R
gear (encoder)
