Sony HCD-GTR7 - Back Panel Section

67
HCD-GTR6/GTR6B/GTR7/GTR8/GTR8B
52 A-1702-138-A MAIN BOARD, COMPLETE (GTR8B: E3)
52 A-1702-161-A MAIN BOARD, COMPLETE (GTR8:E2)
52 A-1702-168-A MAIN BOARD, COMPLETE (GTR6B: E3)
52 A-1724-710-A MAIN BOARD, COMPLETE (GTR8: E51, AR)
52 A-1724-712-A MAIN BOARD, COMPLETE (GTR8B: AUS)
52 A-1724-715-A MAIN BOARD, COMPLETE (GTR8: MX)
52 A-1724-746-A MAIN BOARD, COMPLETE (GTR7: E2)
52 A-1724-748-A MAIN BOARD, COMPLETE (GTR7: E51, AR)
52 A-1724-752-A MAIN BOARD, COMPLETE (GTR6: E2)
52 A-1724-754-A MAIN BOARD, COMPLETE (GTR6B: AUS)
52 A-1724-757-A MAIN BOARD, COMPLETE (GTR6: E51, AR)
53 1-828-938-51 WIRE (FLAT TYPE) (9 CORE)
54 1-828-975-11 WIRE (FLAT TYPE) (13 CORE)
55 1-828-384-11 WIRE (FLAT TYPE) (23 CORE)
M891 1-787-344-11 FAN, DC (GTR7/GTR8:MX/GTR6/GTR6B)
M892 1-787-344-11 FAN, DC (GTR7/GTR8/GTR8B)
TU901 1-693-778-21 TUNER (FM/AM)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE 2 IT-3
#2 4-900-386-01 SCREW +BVTT 4X8
#3 7-685-872-01 SCREW 3X6

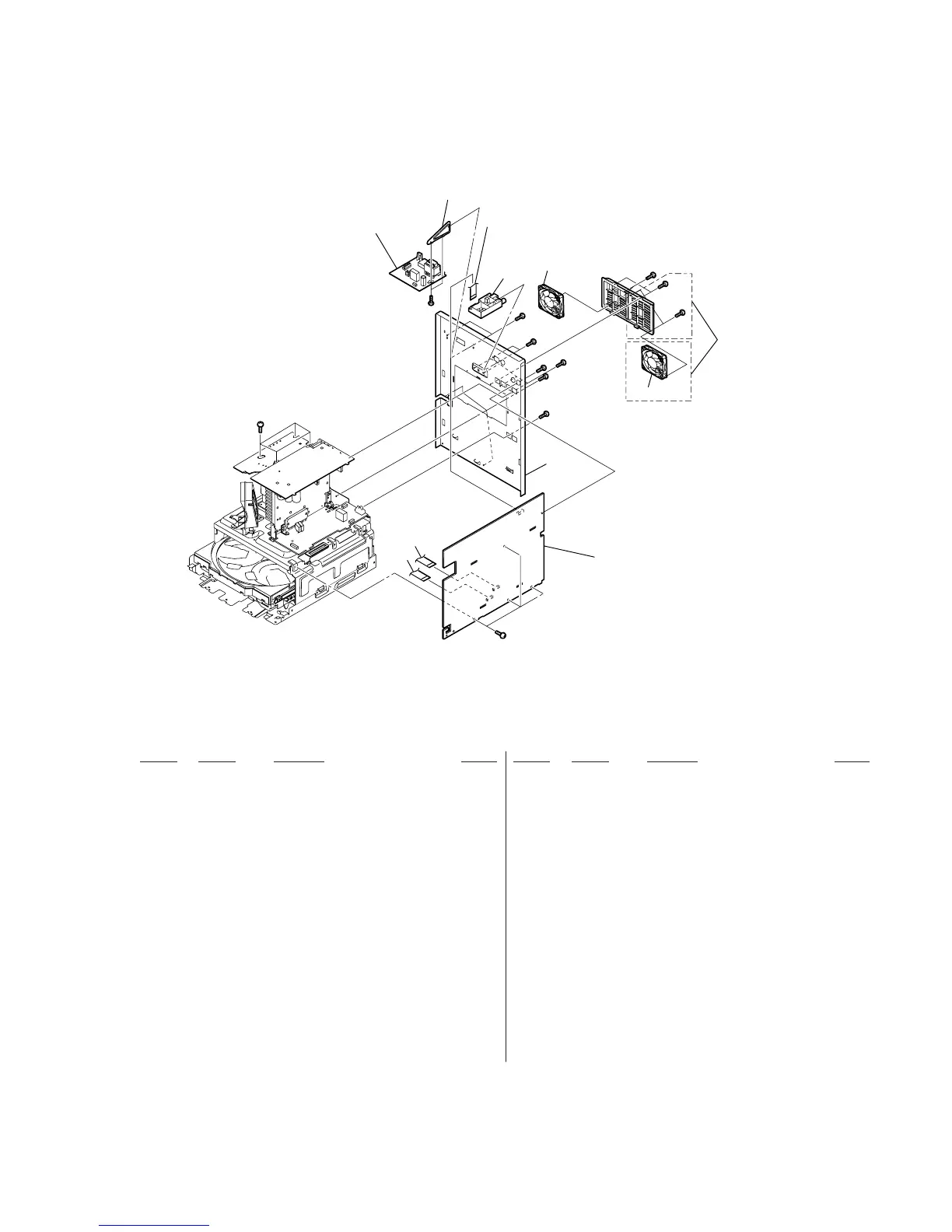

6-2. BACK PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
#1
#1
#1
#1
#2
#1
#3
#1
#1
#1
#1
#1
TU901
M891
M892
53
54
52
For GTR6, GTR6B,
GTR7: MX,
GTR8: MX
use one cover and
one fan only
not supplied
(SUB TRANS Board)
not supplied
not
supplied
55
