Sony HCD-GTR7 - CD Mechanism Section (1)

71
HCD-GTR6/GTR6B/GTR7/GTR8/GTR8B

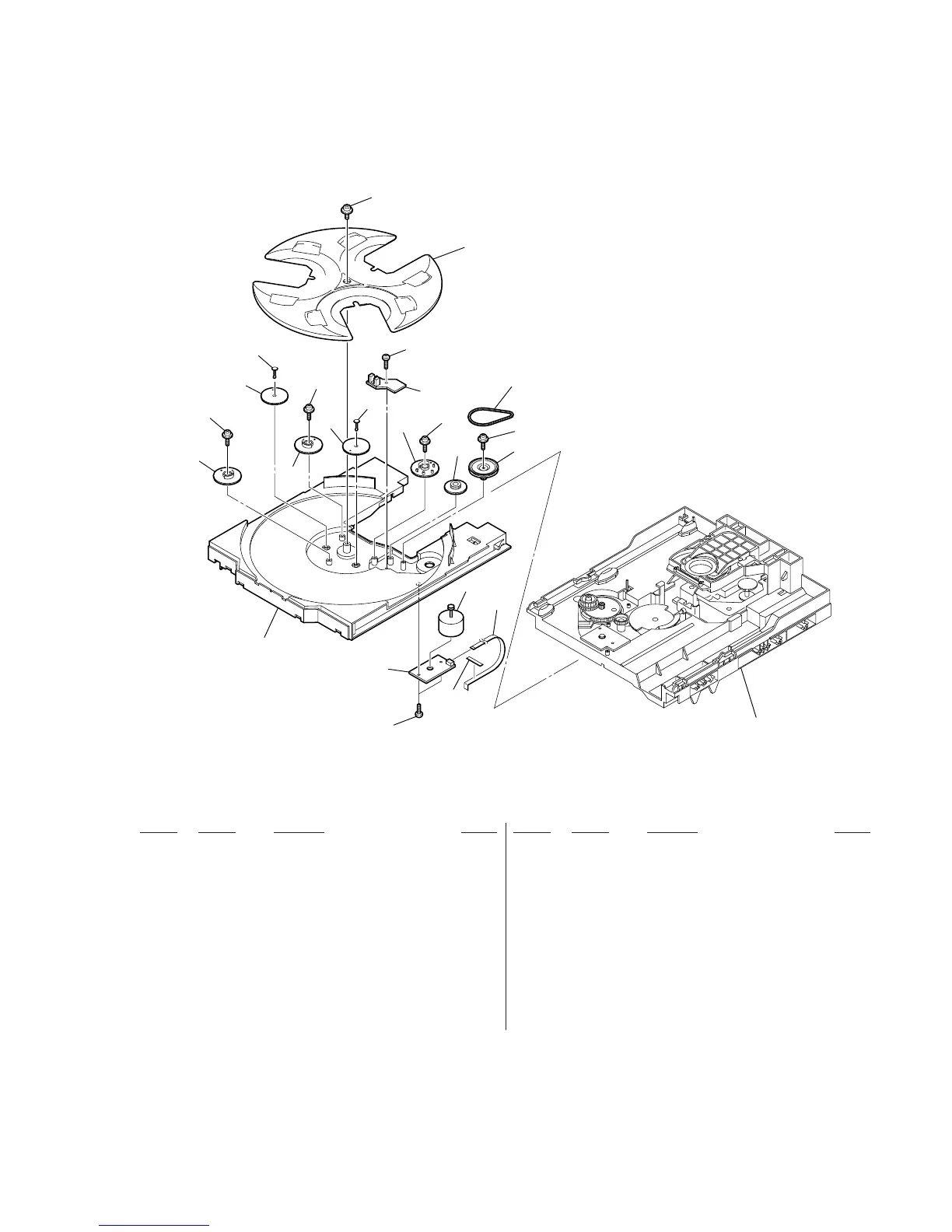

6-6. CD MECHANISM SECTION (1)
(CDM74KF-K6BD93UR-WOD)
251 4-218-253-42 SCREW (M2.6), +BTTP (MX)
252 1-828-938-51 WIRE (FLAT TYPE) (5 CORE) (EXCEPT MX)
252 1-776-182-11 WIRE (FLAT TYPE) (5 CORE) (MX)
253 3-231-598-01 SHEET (BA)
254 4-243-815-11 TABLE (LOADING)
255 4-245-571-02 GEAR (STOPPER)
256 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
257 4-245-570-01 GEAR (JOINT)
258 4-245-572-01 BUSHING (GEAR)
259 1-687-132-12 SENSOR BOARD
260 4-243-820-01 GEAR (TABLE)
261 4-243-819-01 GEAR (GENEVA)
262 4-243-816-21 TRAY
263 4-243-823-01 BELT (TABLE) (MX)
263 4-243-823-11 BELT (TABLE) (EXCEPT MX)
264 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
265 4-243-821-01 PULLEY (TABLE)
M741 A-1108-965-A MOTOR ASSY, TABLE
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
252
254
255
255
256
256
257
257
258
258
259
251
256
262
263
264
265
260
261
264
CD mechanism section-2
not supplied
251
253
M741
