Sony HCD-GTR7 - Front Board, GTH Subwoofer Board; Back Panel Section, DC Fan

12
HCD-GTR6/GTR6B/GTR7/GTR8/GTR8B

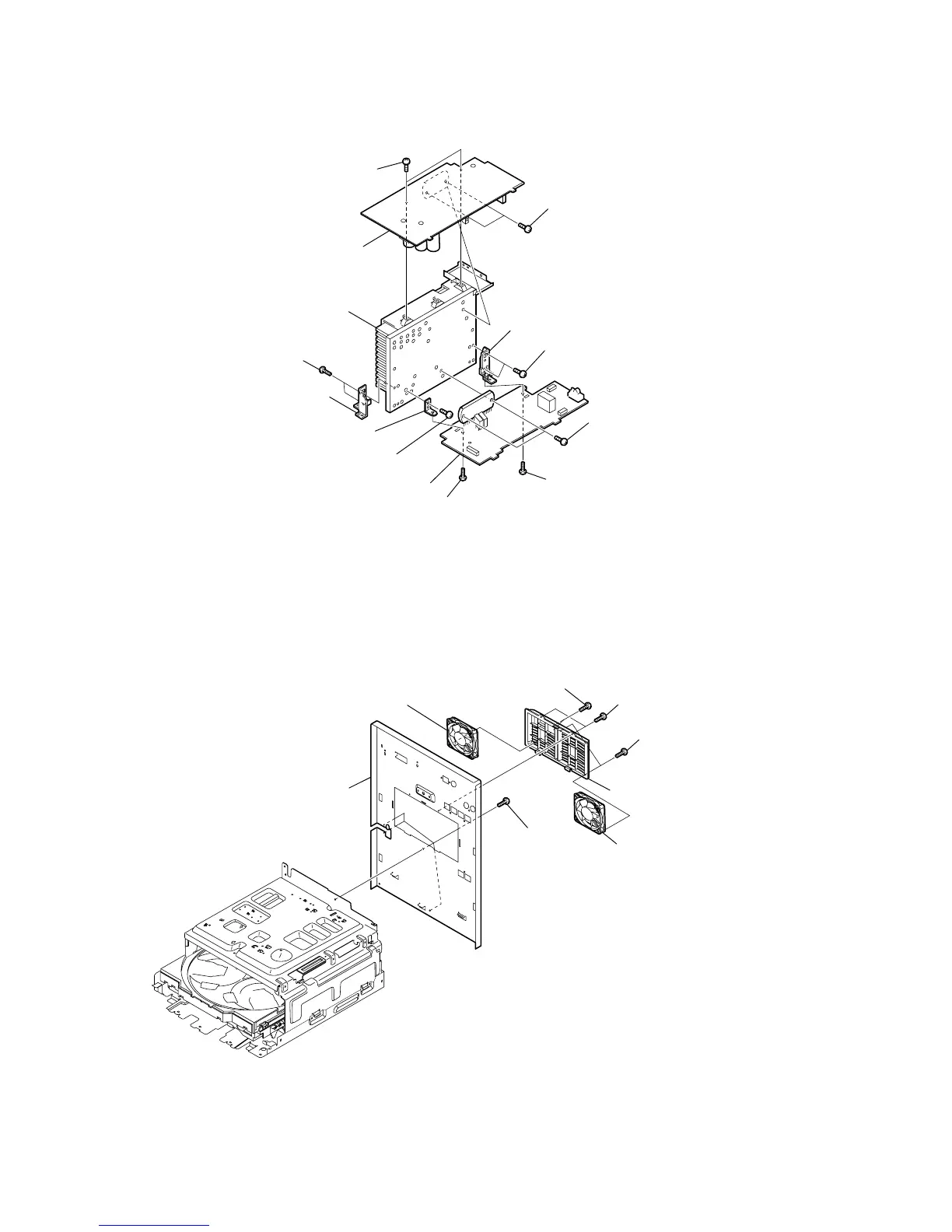

1-12. BACK PANEL SECTION, DC FAN
1-11. FRONT BOARD, SUBWOOFER BOARD

Front board
R
heat sink assy

Bracket (PWB)

Bracket (PC)
RG
SUBWOOFER board

two screws
(transistor)

two screws
(+BVTP 3 x 8)
RT
one screw
(+BVTP 3 x 8)
RE
one screw
(+BVTP 3 x 8)
RB
two screws
(transistor)

one screw
(+BVTP 3 x 8)

two screws
(+BVTP 3 x 8)

two screws
(+BVTP 3 x 8)

Bracket (PWB)

DC fan

DC fan

Cover (fan)

back panel section

two screw
(+BVTP 3 x 8)

two screw
(+BVTP 3 x 10)

two screw
(+BVTP 3 x 10)

four screws
(+BVTP 3 x 8)
