HCD-GTR6/GTR6B/GTR7/GTR8/GTR8B
HCD-GTR6/GTR6B/GTR7/GTR8/GTR8B

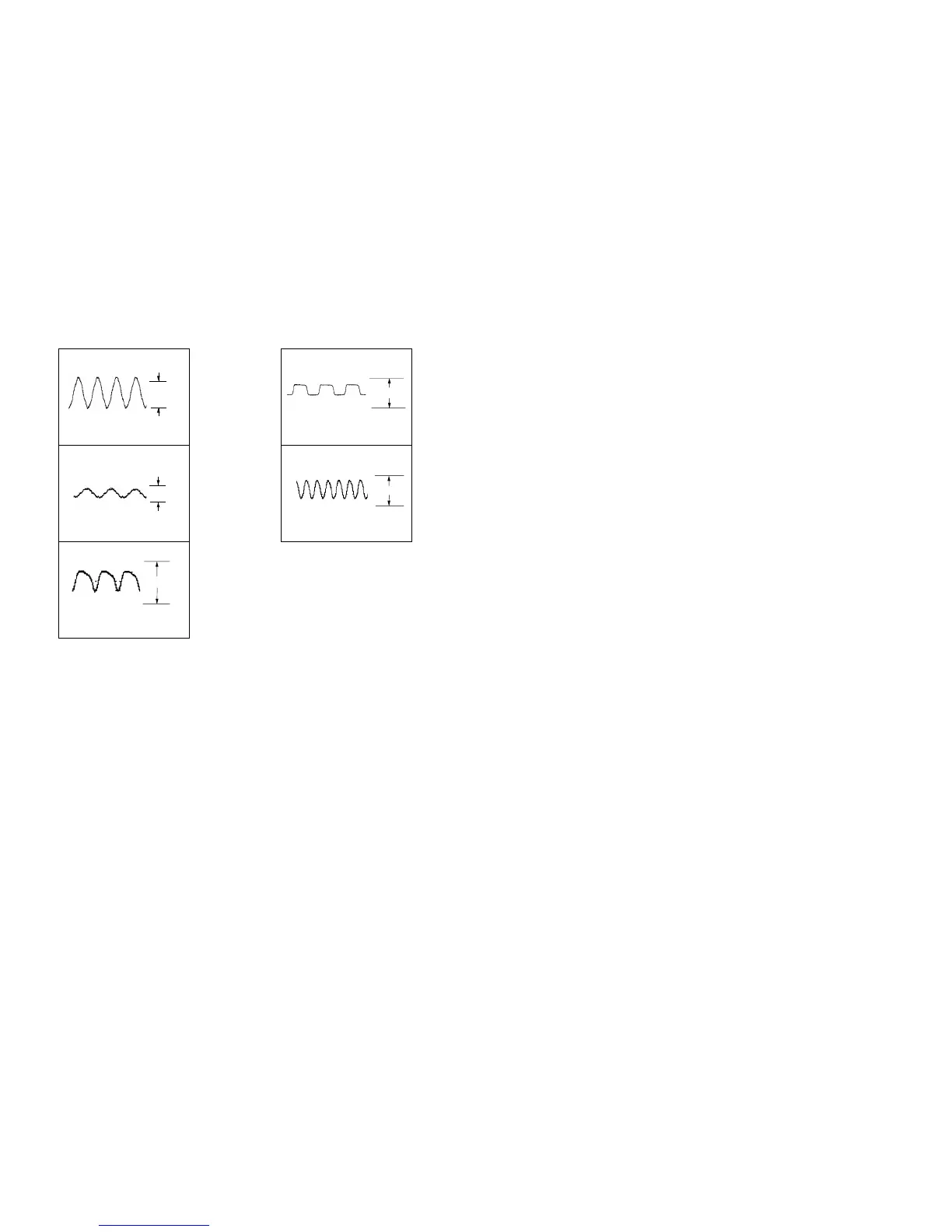

• Waveforms
— DMB19 BOARD — (CD PLAY)
— MAIN BOARD —
 IC101  (RF-A)
 IC101  (RF-B)
100 mV/DIV, 20 msec/DIV
 IC101  (XTALO)
100 mV/DIV, 20 msec/DIV
500 mV/DIV, 1 msec/DIV
2.2Vp-p
27 MHz
Approx.
300 mVp-p
Approx.
150 mVp-p
2 Vp-p
32.768 kHz
 IC500 RB (XC-OUT)
1 V/DIV, 0.02 msec/DIV
2 Vp-p
5 MHz
 IC500 RE (X-OUT)
1 V/DIV, 0.02 msec/DIV
