Sony HCD-PX5 - Page 20

20

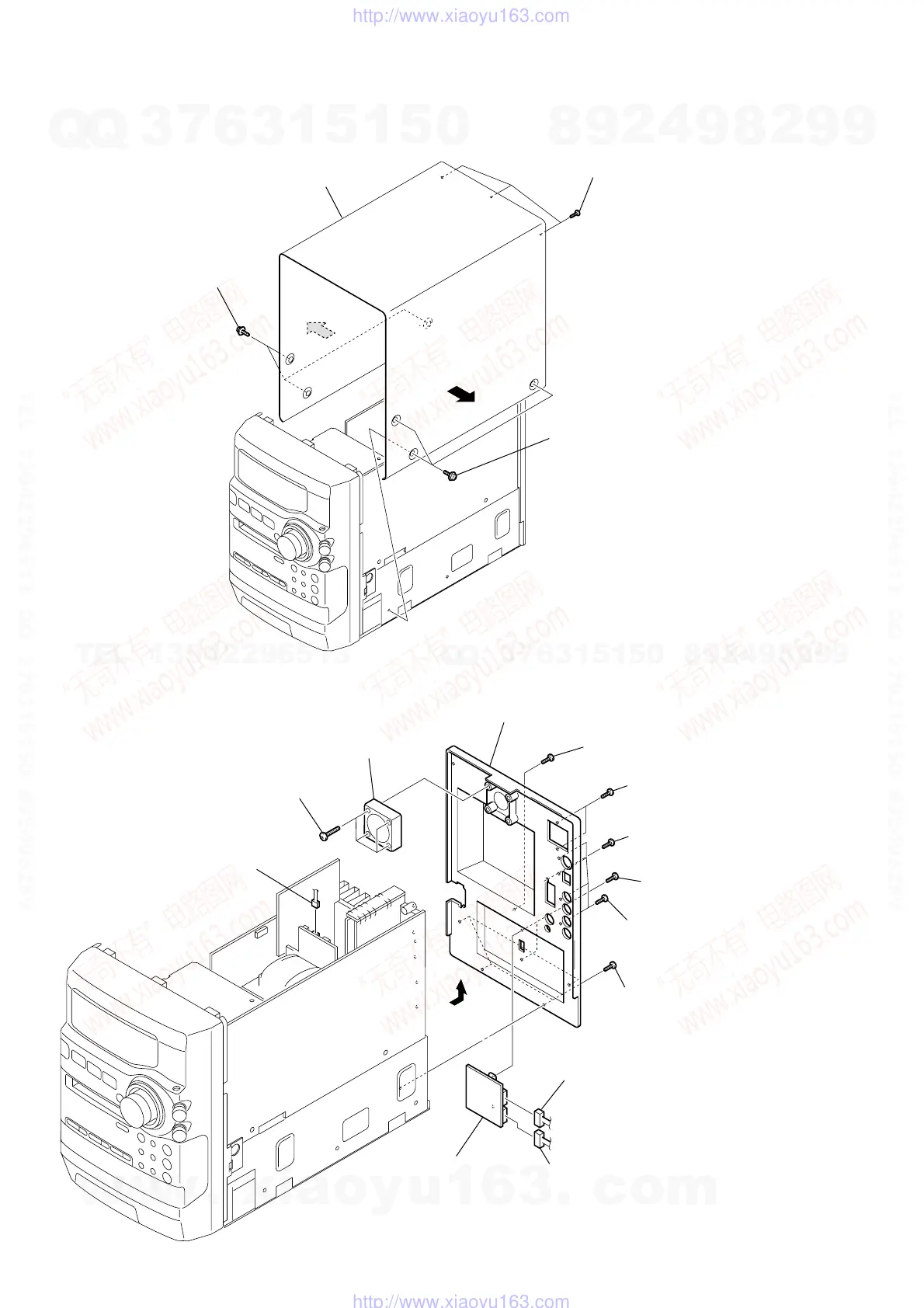

BACK PANEL, DC FAN (M801)
Note: Follow the disassembly procedure in the numerical order given.
CASE
1 three screws
(CASE3 TP2)
1 three screws
(CASE3 TP2)
3
3
2
three screws (BVTP3 × 12)
4 case
3 screw (BVTT3 × 6)
3 four screws
(BVTT3
× 6)
4
3
screw (BVTT3 × 6)
7 connector (CN993)
(Tourist model)
7 connector (CN994)
(Tourist model)
8 SELECTOR board
(Tourist model)
9 back panel
1 connector
(CN851)
5 four screws
(BVTP3
× 20)
6 DC fan (M801)
2 two screws
(BVTP3
× 10)
2 four screws
(BVTP3
× 10)
3 two screws (BVTP3 × 10
)
(Tourist model)
