95

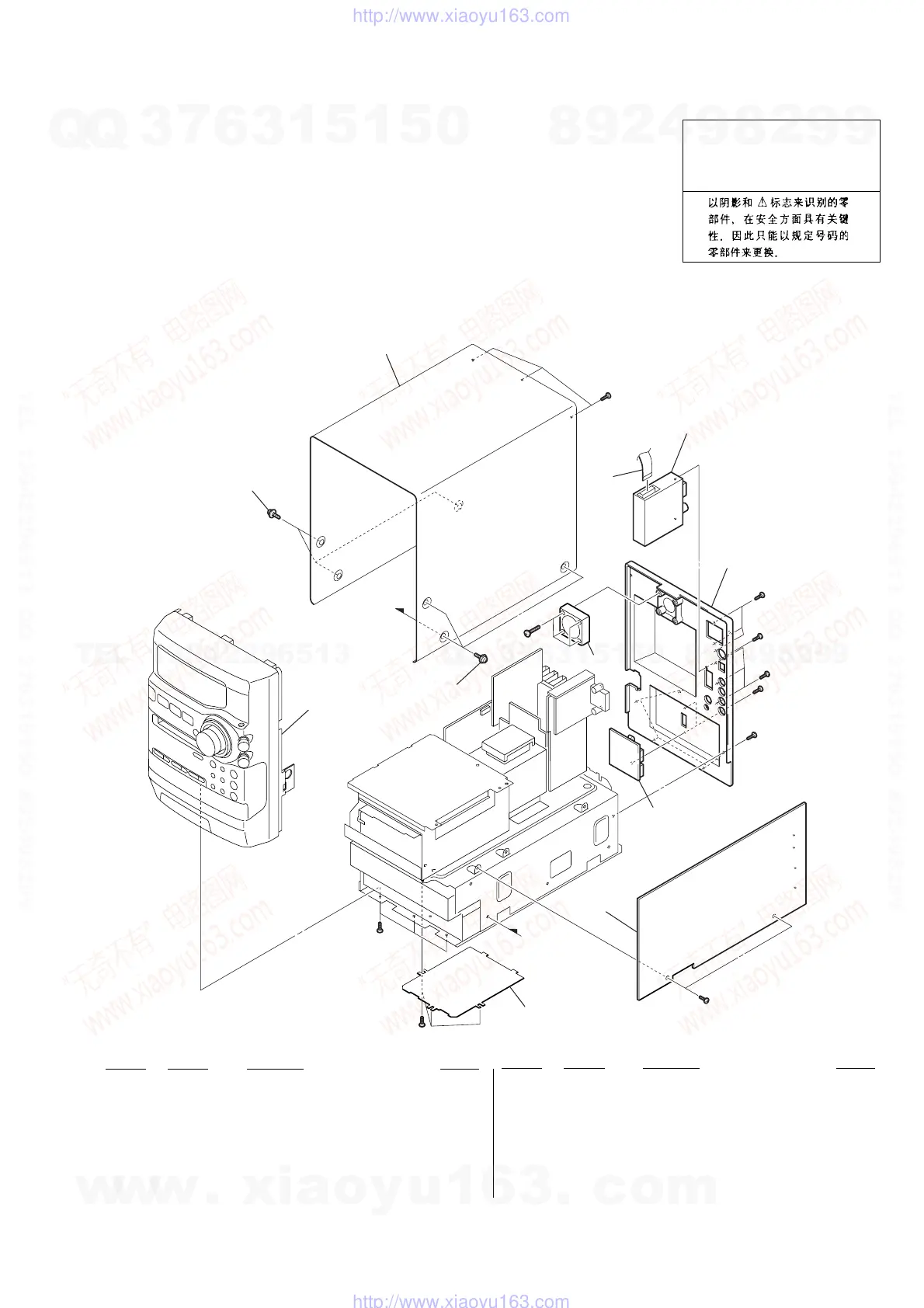

(1) CASE SECTION
SECTION 7
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
HK : Hong Kong model
JE : Tourist model
KR : Korean model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 MAIN BOARD, COMPLETE (KR)
1 A-4476-151-A MAIN BOARD, COMPLETE (HK)
1 A-4476-156-A MAIN BOARD, COMPLETE (JE)
2 3-363-099-51 SCREW (CASE 3 TP2)
3 4-229-860-01 CASE (SILVER)
3 4-229-860-11 CASE (WHITE)
4 1-773-002-11 WIRE (FLAT TYPE) (15 CORE)
5 4-229-859-41 PANEL, BACK (HK)
5 4-229-859-51 PANEL, BACK (KR)
5 4-229-859-61 PANEL, BACK (JE)
6 1-693-472-21 TUNER (JE)
6 1-693-473-41 TUNER (HK, KR)
M801 1-763-632-11 FAN, DC
#6
#2
#6
#3
#6
#4
(Tourist model
#4
#4
#4
#7
Front panel
not supplied
(SELECTOR board)
(Tourist model)
not supplied
M801
