Sony HCD-PX5 - Printed Wiring Board - PANEL Board

75
HCD-PX5

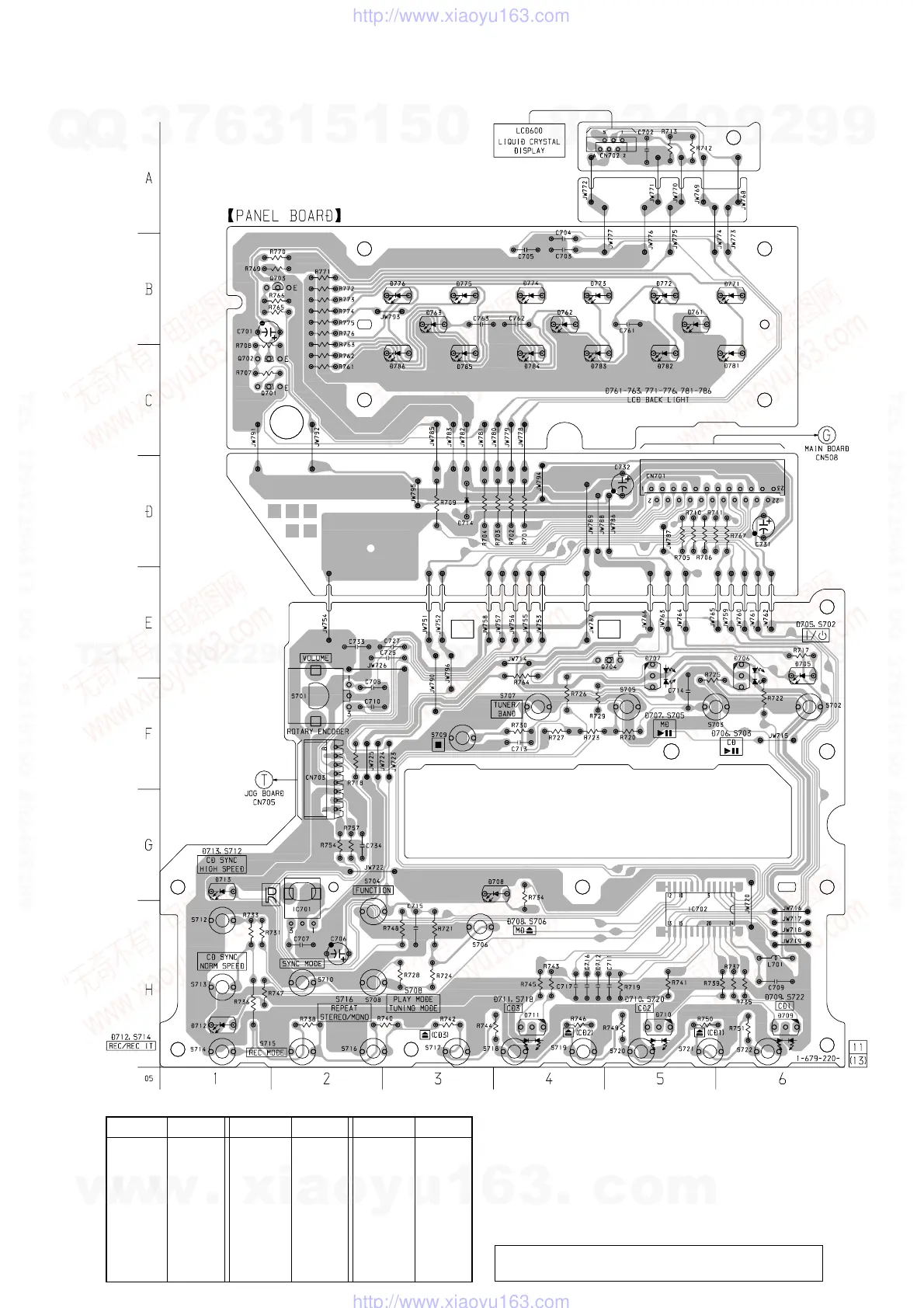

6-26. PRINTED WIRING BOARD – PANEL Board –• See page 53 for Circuit Boards Location.
There are a few cases that the part isn't mounted in model
is printed on diagrams.
D771 B-6
D772 B-5
D773 B-4
D774 B-4
D775 B-3
D776 B-3
D781 C-6
D782 C-5
D783 C-4
D784 C-4
Ref. No. LocationRef. No. Location
D705 E-6
D706 E-6
D707 E-5
D708 G-4
D709 H-6
D710 H-5
D711 H-4
D712 H-1
D713 G-1
D714 D-3
• Semiconductor Location
Ref. No. Location
D785 C-3
D786 C-3
IC701 G-2
IC702 H-5
Q701 C-1
Q702 C-1
Q703 B-2
Q704 E-5
(Page 72)
(Page 68)
