Sony HCD-PX5 - Printed Wiring Boards - MD DIGITAL (Conductor Side);Relay Boards

6565
HCD-PX5
There are a few cases that the part isn't mounted in model
is printed on diagrams.

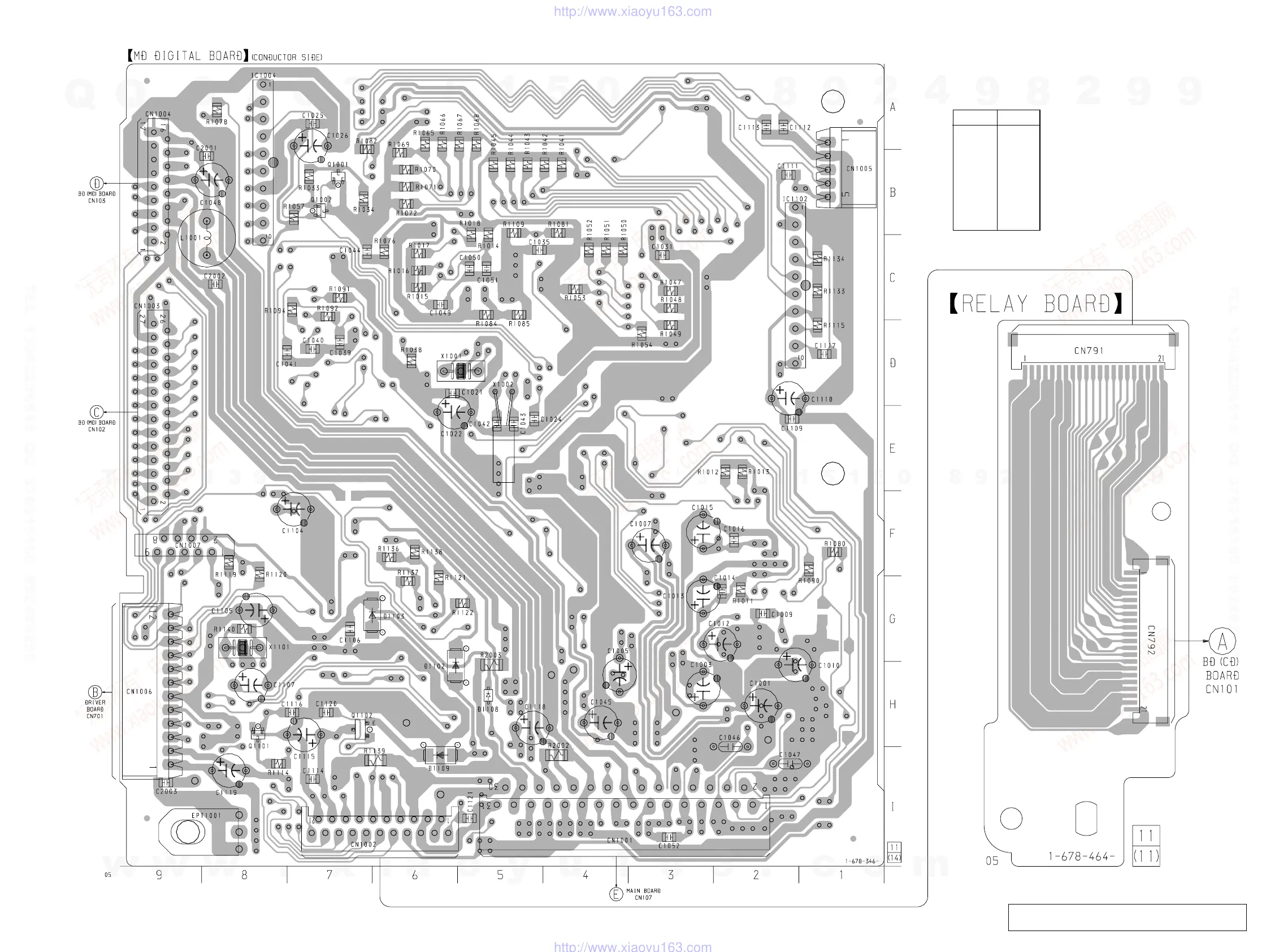

6-17. PRINTED WIRING BOARDS – MD DIGITAL (Conductor Side)/RELAY Boards –• See page 53 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D1102 H-6
D1103 G-7
D1108 H-5
IC1004 B-8
Q1001 B-7
Q1002 B-7
Q1101 H-8
Q1102 H-7
(Page 60)
(Page 60)
(Page 56)
(Page 68)
(Page 54)
