HCD-PX5

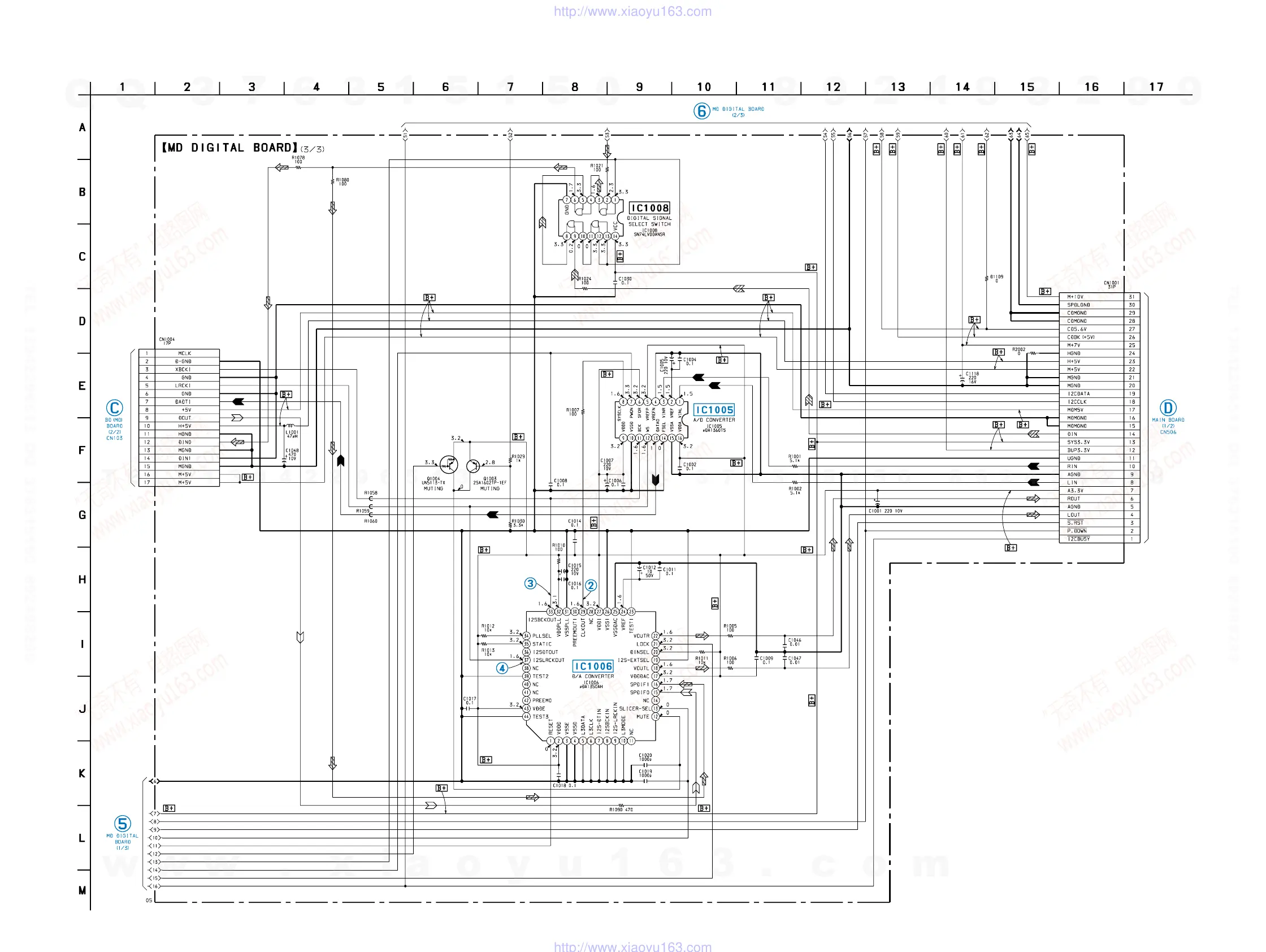

6-15. SCHEMATIC DIAGRAM – MD DIGITAL Board (3/3) –• See page 69 for Waveforms. • See page 80 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : MD STOP
(Page 59)
(Page 61)
(Page 62)
(Page 66)
