Sony HCD-PX5 - Printed Wiring Board - REG Board

76
HCD-PX5

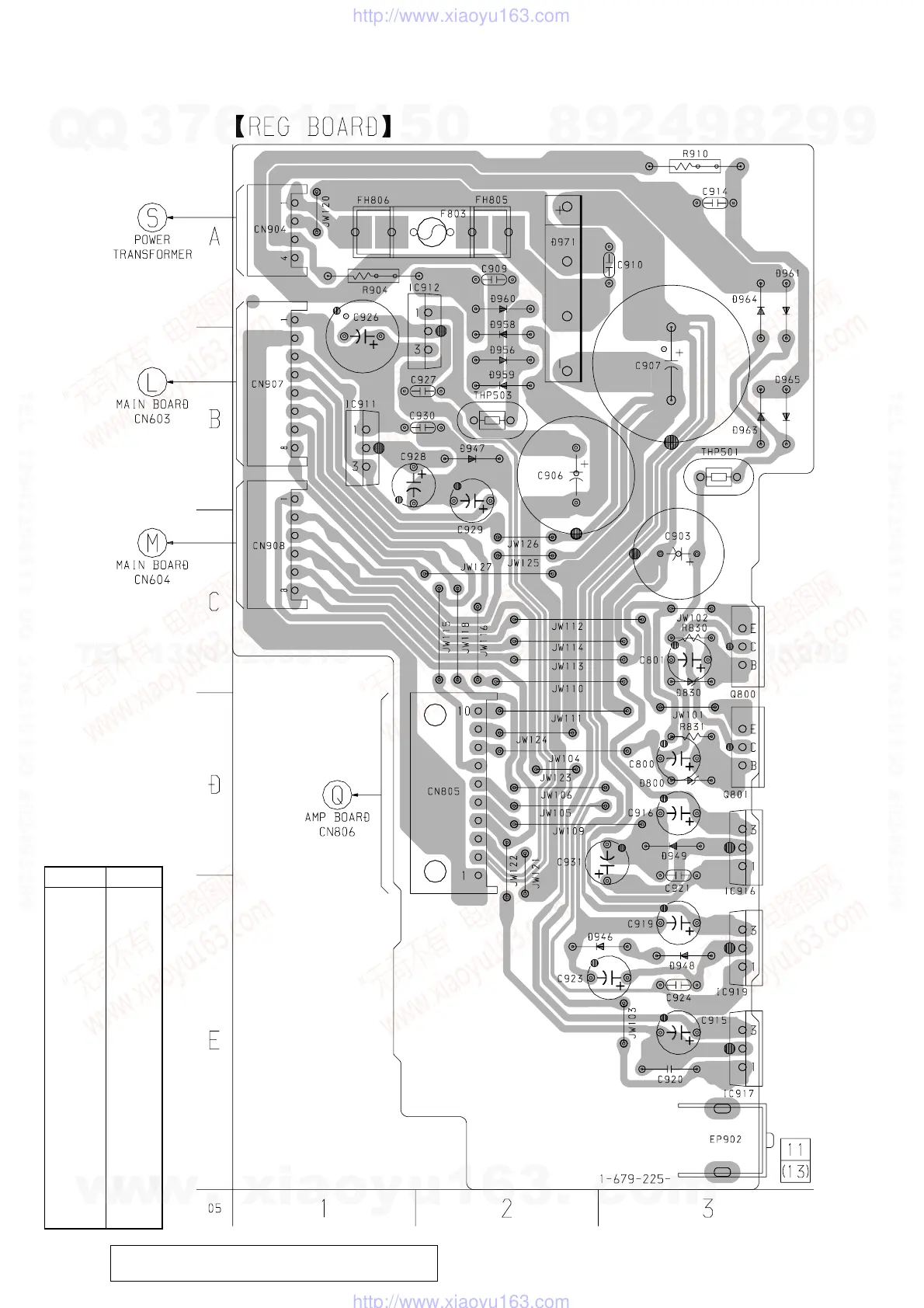

6-27. PRINTED WIRING BOARD – REG Board –• See page 53 for Circuit Boards Location.
There are a few cases that the part isn't mounted in model
is printed on diagrams.
(Page 78)
(Page 68)
(Page 68)
(Page 70)
Ref. No. Location
D800 D-3
D830 C-3
D946 E-3
D947 B-2
D948 E-3
D949 D-3
D956 B-2
D958 B-2
D959 B-2
D960 A-2
D961 A-3
D963 B-3
D964 A-3
D965 B-3
D971 A-2
IC911 B-1
IC912 B-2
IC916 D-3
IC917 E-3
IC919 E-3
Q800 C-3
Q801 D-3
• Semiconductor
Location
