HCD-PX5
5858

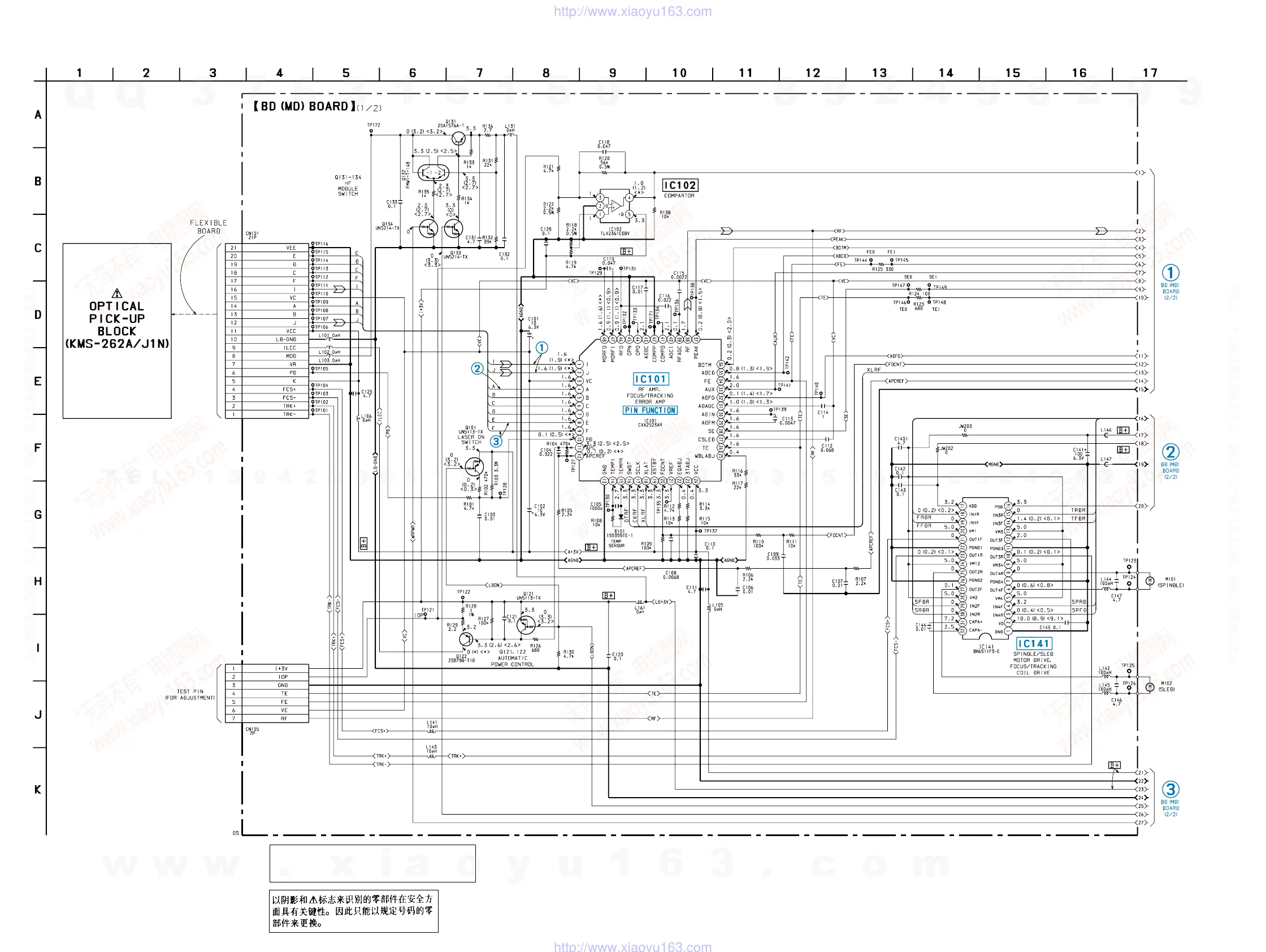

6-10. SCHEMATIC DIAGRAM – BD (MD) Board (1/2) –• See page 69 for Waveforms. • See page 80 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : MD STOP
( ) : MD PLAY
< > : MD REC
∗
: Impossible to measure
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
(Page
59)
(Page
59)
(Page
59)
